High Speed Tube Mill Machine for Carbon Steel Stainless Steel Pipes

Name: High Speed Tube Mill Machine for Carbon Steel Stainless Steel Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG114
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG114

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG114

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Pipe Diameter:

21 - 63mm

Product Speed:

Max 50m/min

Max.Thickness For Square Pipe:

0.8-3.0mm

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Name:

Tube Mill Machine

Highlight:

High Light

Highlight:

carbon steel tube mill

tube making machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3.5 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

70 set per year

Product Description

High Speed Tube Mill Machine Tube Making Machine ISO9001 BV Standard

Product Attributes

Attribute	Value
Material	Carbon steel, stainless steel, low alloy steel
Pipe Diameter	21 - 63mm
Product Speed	Max 50m/min
Max.Thickness for Square Pipe	0.8-3.0mm
Certification	CE ISO
Worm Gearing	Max.80m/min
Name	Tube Mill Machine

Product Description

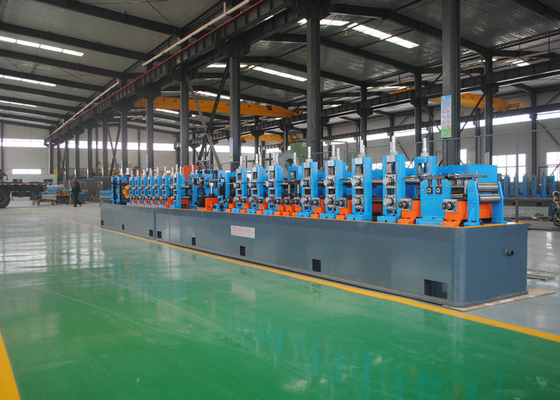

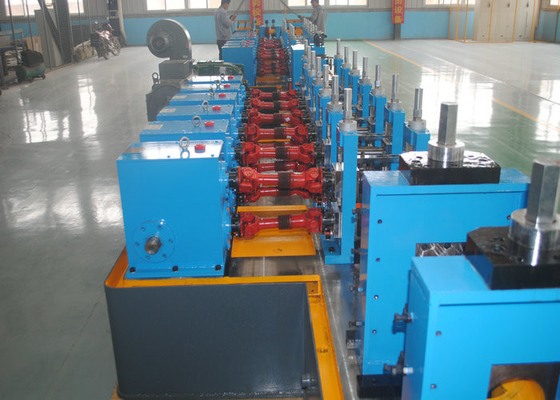

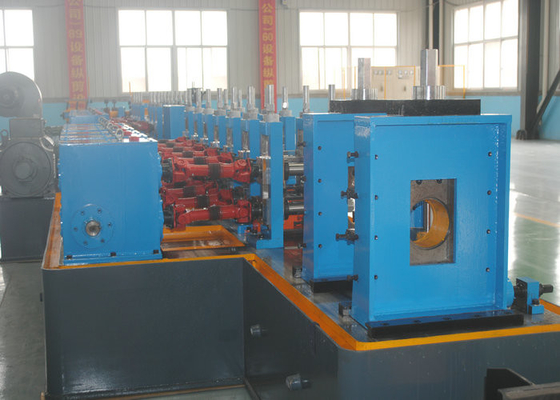

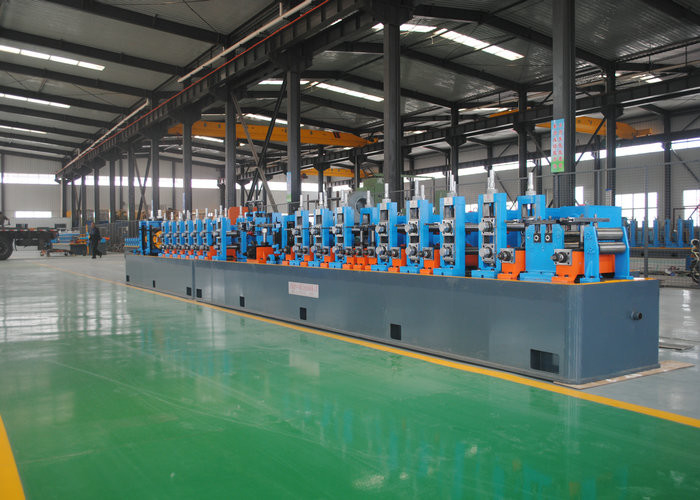

The HG114 Tube Mill Machine High-Frequency Welded Pipe Production Line is designed to produce welded pipes of 60~140mm in diameter and 1.5~5.0mm in wall thickness, as well as square and rectangular pipes and deformed pipes of corresponding sizes. This production line incorporates innovative design and advanced technology from domestic and international equipment, offering convenient operation and maintenance while achieving international leading standards.

Adapt materials: Hot rolled or cold rolled steel strip (Low carbon steel and low alloy constructional steel, δs≤345Mpa δb≤610Mpa)
Processing steel pipe size range:
- Round pipe: Φ60-Φ140mm
- Square & Rectangular pipe: 50x50--110x110mm
- Thickness of Round pipe: 1.5-5.0mm
- Thickness of Square & Rectangular pipe: 1.5-4.5mm
Installed capacity: 800KVA
Water consumption: 50m³/h
Solid-state high-frequency Welder: 300KW or 400KW
Workshop requirements: 50m (L) × 12m (W) × 6m (H)
Forming speed: 40-60m/min

Specifications

Model	Diameter (mm)	Thickness (mm)	Speed (m/min)	Main Power (kw)	HF Welder (KW)	Area (m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100
