Full Automatic PLC Tube Mill Machine for Square Rectangular Pipe

Name: Full Automatic PLC Tube Mill Machine for Square Rectangular Pipe
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: LW400
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	TENG TIAN
Certification:	CE; ISO9001
Model Number:	LW400

Detail Information

Place of Origin:

CHINA

Brand Name:

TENG TIAN

Certification:

CE; ISO9001

Model Number:

LW400

Raw Material:

HRC; CRC; Galvanised Steel

Forming Method:

Directly Forming

Electric Conftol:

Full Automatic Control By PLC

Roll Position Changing:

Control By PLC

Roller Position Changing Time:

20 Minutes

Product Name:

Tube Mill Machine / Equipment

Highlight:

High Light

Highlight:

carbon steel tube mill

welded tube mill

Trading Information

Minimum Order Quantity:

1 sET

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

5 Months

Payment Terms:

T/T,L/C

Supply Ability:

50 Sets / Year

Product Description

Full Automatic Tube Mill Machine Directly Forming PLC Control ISO9001

Product Specifications

Attribute	Value
Raw Material	HRC; CRC; Galvanised Steel
Forming Method	Directly Forming
Electric Control	Full Automatic control by PLC
Roll Position Changing	Control by PLC
Roller Position Changing Time	20 Minutes
Product Name	Tube Mill Machine / equipment

Product Description

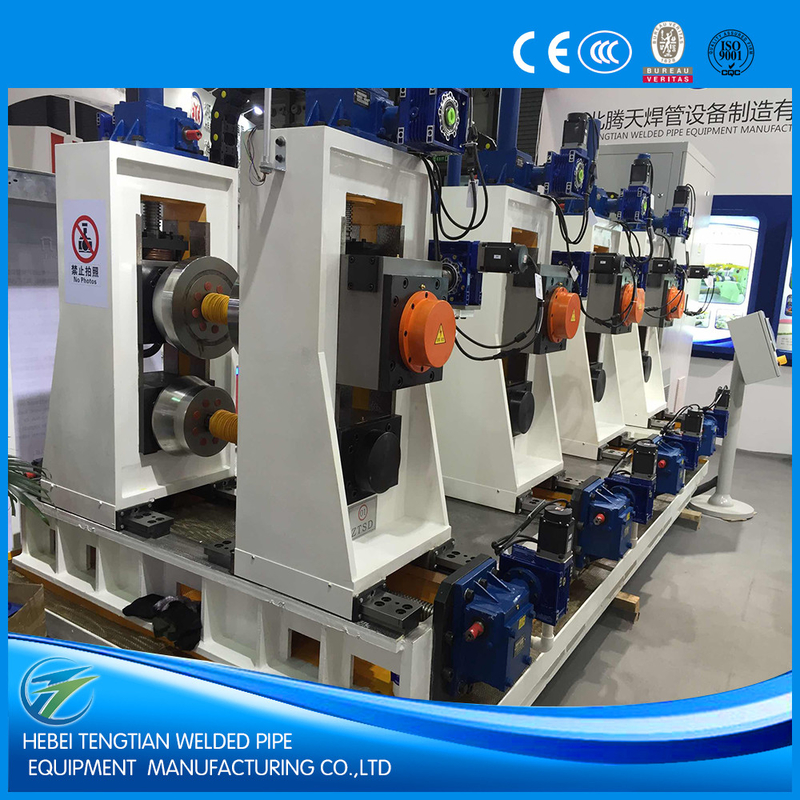

LW400 Full Automatic Directly Forming Tube Mill is designed to produce welded square pipes in dimensions 30×30mm to 100×100mm with wall thickness of 1.5mm to 4.5mm. This production line features full automatic direct forming technology, where one set of rollers can produce all sizes of square and rectangular pipes. The entire process is controlled by PLC, representing the most advanced technology in the industry.

Production Process

Scroll up

Uncoil

Flattening

End Shear & Butt Welding

Accumulator

Forming

High-frequency induction welding

Removing external burr

Cooling

Sizing

Cutting

Checking & Collecting

Accessing Warehouse

Technical Specifications

Raw Material:

HRC, CRC, Galvanised Coil

Production Range:

Square Pipe: 30×30 - 100×100mm; Rectangular: 30×40 - 80×120mm

Thickness:

1.5-4.0mm

Line Speed:

Max. 100m/min

Tube Length:

4-12m

Pipe Dia. Accuracy:

±0.03mm

Cutting Accuracy:

±3mm

Features of Full Directly Forming Technology

Steel strip is directly rolled and bent into square & rectangle shapes, then welded into finished pipe
Superior edge shape quality compared to round-to-square forming methods, with smaller inner arc radius and flatter brims
Lower overall line load, particularly in sizing parts
Reduced raw material consumption (2.4-3% less steel strip width)
Combined rollers allow one set to produce all square & rectangular tube specifications
80% reduction in roller costs and spare parts inventory
Automatic size changes via computer-controlled roller position adjustment

As a CE & ISO9001:2008 certified pipe making machine manufacturer, our high-quality, reliable machines with long service life have been exported to nearly 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Mexico, and Vietnam.

For inquiries or additional information, please contact us - we're happy to assist you.
