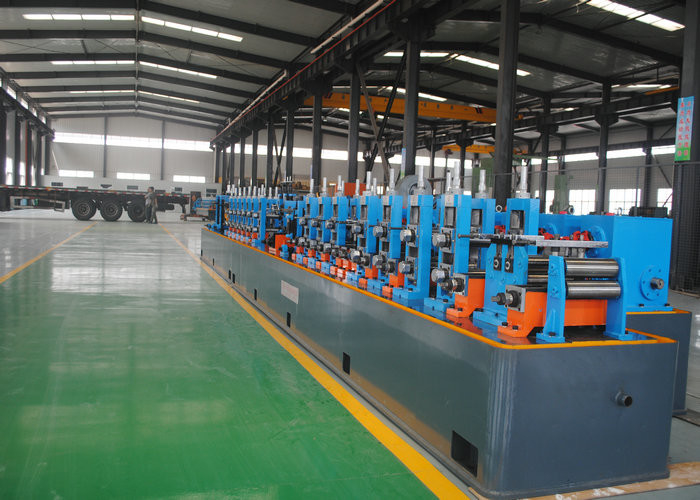

Fully Automated ERW Tube Mill Machine for Carbon Stainless Steel 21-63mm

Name: Fully Automated ERW Tube Mill Machine for Carbon Stainless Steel 21-63mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG76

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Pipe Diameter:

21 - 63mm

Product Speed:

Max 50m/min

Max.Thickness For Square Pipe:

0.8-3.0mm

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Name:

Tube Mill Machine

Highlight:

High Light

Highlight:

carbon steel tube mill

tube making machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3.5 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

70 set per year

Product Description

Fully Automated High Precision ERW Tube Mill Machine

Key Specifications

Attribute	Value
Material Compatibility	Carbon steel, stainless steel, low alloy steel
Pipe Diameter Range	21 - 63mm
Maximum Production Speed	50m/min
Max. Thickness for Square Pipe	0.8-3.0mm
Certifications	CE, ISO
Worm Gearing Speed	Max. 80m/min

Product Overview

This high-precision tube mill machine is designed for producing Φ19-Φ63.5mm diameter pipes with wall thickness of 0.8-2.5mm, including straight seam welded pipes, square pipes, and special-shaped pipes (δ≤2.0mm). The complete system includes all components from uncoiler to fixed length cutting saw, with adjustable rolling speed optimized for different pipe diameters and wall thicknesses.

Cold Saw Cutting System

Digitally controlled cutting machine with mechanical, electronic, and hydraulic components
Three-axis control system (tracking, cutting feed, saw blade rotation) with specialized motion controller
Servo motor driven operation with parameter input via LCD touch screen interface
High-speed steel saw blades for precision cutting
Synchronized operation with production line for continuous processing
CNC-controlled cutting speed and position accuracy
Adjustable cutting head feed and rotation speed via CNC programming

Technical Specifications

Model	Diameter (mm)	Thickness (mm)	Speed (m/min)	Main Power (kW)	HF Welder (kW)	Area (m²)
HG32	10-32	0.4-1.5	30-100	250	100	12x100
HG50	12-50	0.6-2.5	30-90	300	150	12x100
HG76	12-76	1-3	30-90	320	200	12x100
HG89	32-89	1-4	30-80	350	300	12x100
HG114	45-114	1.5-5.0	30-60	400	300	12x100
HG165	60-165	3-7	30-50	600	400	12x100
HG219	114-219	4-8	20-40	800	500	15x150
HG273	114-273	4-10	15-30	1000	600	18x160
HG325	165-325	4-10	10-30	1200	600	12x100
HG426	165-426	4-12.7	8-25	1400	800	12x100
HG508	219-508	4-16	8-20	2000	1000	12x100

Moulds & Customization

Rolls for welded pipe production are ordered separately based on customer specifications. Standard material: Cr12 alloy steel for durability and precision.
