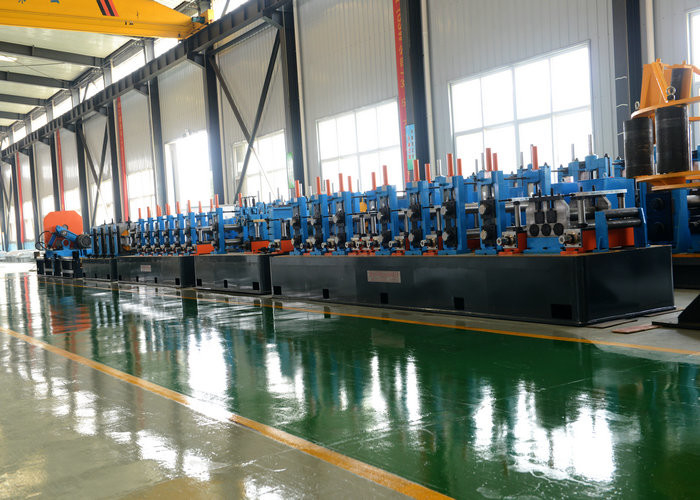

ERW Tube Mill Machine for Carbon Steel Stainless Steel Pipes 21-63mm

Name: ERW Tube Mill Machine for Carbon Steel Stainless Steel Pipes 21-63mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG76

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Pipe Diameter:

21 - 63mm

Product Speed:

Max 50m/min

Max.Thickness For Square Pipe:

0.8-3.0mm

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Name:

Tube Mill Machine

Highlight:

High Light

Highlight:

carbon steel tube mill

tube making machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3.5 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

70 set per year

Product Description

Round Pipe ERW Steel Tube Mill Machine / Tube Making Machine

Product Specifications

Attribute	Value
Material	Carbon steel, stainless steel, low alloy steel
Pipe Diameter	21 - 63mm
Product Speed	Max 50m/min
Max.Thickness for Square Pipe	0.8-3.0mm
Certification	CE ISO
Worm Gearing	Max.80m/min
Name	Tube Mill Machine

Production Process

Material (steel coil) → Uncoiler → Shear and welder → Horizontal (or cage) accumulator → Forming mill → HF solid welder → Sizing mill → Roughly straightening (turkey head) → Cut off machine → Run out table

Technical Parameters

Parameter	Value
Stands of forming mill	7
Stands of sizing mill	5
Shaft material	40Cr
Round pipe diameter	19-76mm
Round pipe thickness	1.5-3.0mm
Square pipe size	15×15-60×60mm
Square pipe thickness	1.5-2.0mm

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Customization & Service

We can design the machine according to customer requirements
Engineer provided for installation and worker training
One year quality guarantee with life guarantee repair
Pre-sell services including workshop and production output design
After-sell services including installation, training, and technical support
Option for extended engineer support (several months to 1 year)
Complete project design services for stainless steel/carbon steel pipe making
