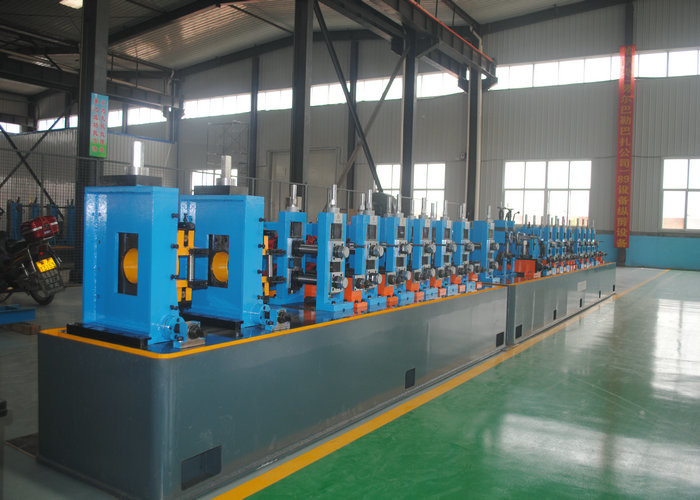

High Speed Tube Mill Machine for Carbon Steel 21-63mm Diameter

Name: High Speed Tube Mill Machine for Carbon Steel 21-63mm Diameter
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG76

Material:

Carbon Steel,stainless Steel,low Alloy Steel

Pipe Diameter:

21 - 63mm

Product Speed:

Max 50m/min

Max.Thickness For Square Pipe:

0.8-3.0mm

Certification:

CE ISO

Worm Gearing:

Max.80m/min

Name:

Tube Mill Machine

Highlight:

High Light

Highlight:

carbon steel tube mill

tube making machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

3.5 months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

70 set per year

Product Description

High Speed Tube Mill Machine / Steel Pipe Machine CE ISO Approved

Product Specifications

Attribute	Value
Material	Carbon steel, stainless steel, low alloy steel
Pipe Diameter	21 - 63mm
Product Speed	Max 50m/min
Max. Thickness for Square Pipe	0.8-3.0mm
Certification	CE ISO
Worm Gearing	Max. 80m/min
Name	Tube Mill Machine

Product Description

The Tube Mill Machine for Carbon Steel is designed to produce ERW pipes and cold bending profile steel from materials including mild steel, low carbon steel (both cold and hot roll), and galvanized roll carbon steel (CR, HR & GI). This versatile machine serves industries such as metallurgy, construction, transportation, machinery, and vehicle manufacturing.

Through cold bending forming and high frequency welding, it transforms steel strips into precision round, square, and rectangular pipes. The advanced forming and sizing machine design ensures production of high-quality pipes with excellent dimensional accuracy.

Key Advantages

Exceptional flexibility allowing tube dimension modification without roll changes for any size within the mill's range
Dramatically reduced setup time and elimination of roll set costs
Minimal maintenance requirements with easy operation
Increased productivity with reduced stock and associated costs
Automated operation and adjustments reduce manpower requirements
PLC automatic control system simplifies parameter setup with visual tube section display
Saves 2.4-3% of strip width compared to Round-to-Square conversion methods

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4mm	0.3-1.2mm	120
HG32	10-32mm	1.4-1.5mm	120
HG50	16-76mm	0.7-2.5mm	30-120
HG76	25-76mm	1-4mm	30-100
HG89	32-89mm	1-4.5mm	30-80
HG114	45-114mm	1.5-5.0mm	30-60
HG165	60-165mm	3-7mm	30-50
HG219	114-219mm	4-8mm	20-40
HG273	114-273mm	4-10mm	15-30
HG325	165-325mm	4-10mm	10-30
HG426	165-426mm	4-12.7mm	8-25
HG508	219-508mm	4-16mm	8-20
