Precision Tube Mill for Auto Line 40Cr Shaft 25-76mm Diameter

Precision Tube Mill for Auto Line 40Cr Shaft 25-76mm Diameter

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: HG60
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE,ISO9001,BV
Model Number:
HG60
Product Name:
Precision Tube Mill High Frequency Welded Tube Mill For Auto Line 40Cr Shaft Material
Material:
HRC,CRC,Galvanised Steel
Pipe Diamete:
25-76mm
Welding Type:
High Frequency Welding
Pipe Shape:
Round,square,rectangular
Adjustment Type:
By Turbine Worm
Keywords:
Precision Tube Mill
Highlight:

High Light

Highlight:

ss tube mill machine

,

pipe milling machine

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
90 work days/Year
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
100 Sets
Product Description
Precision Tube Mill High Frequency Welded Tube Mill For Auto Line 40Cr Shaft Material
Product Specifications
Attribute Value
Product Name Precision Tube Mill High Frequency Welded Tube Mill For Auto Line 40Cr Shaft Material
Material HRC, CRC, Galvanised Steel
Pipe Diameter 25-76mm
Welding Type High Frequency Welding
Pipe Shape Round, Square, Rectangular
Adjustment Type By Turbine Worm
Product Process
material(steel coil)->uncoiler->shear and welder->horizontal(or cage) accumulator->forming mill-> HF soild welder->sizing mill->rounghly straightening(turkey head)->cut off machine->run out table
Technical Parameters
Parameter Value
Stands of forming mill 7
Stands of sizing mill 5
Shaft material 40Cr
Round pipe diameter 19-76mm
Round pipe thickness 1.5-3.0mm
Square pipe size 15×15-60×60mm
Square pipe thickness 1.5-2.0mm
Available Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
Compatible Materials
  • Low carbon steel
  • Low alloy steel
  • Galvanized steel
  • Stainless steel

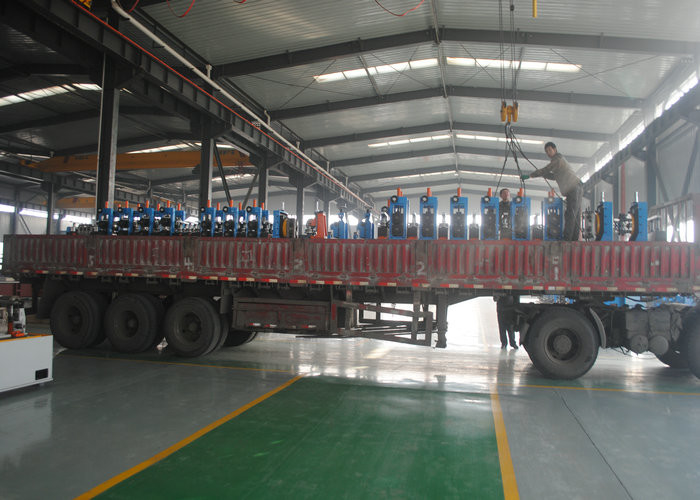

Precision Tube Mill for Auto Line 40Cr Shaft 25-76mm Diameter 0
About Our Company
Precision Tube Mill for Auto Line 40Cr Shaft 25-76mm Diameter 1 More >>
Customization Available

We can design the machine according to your specific requirements.
