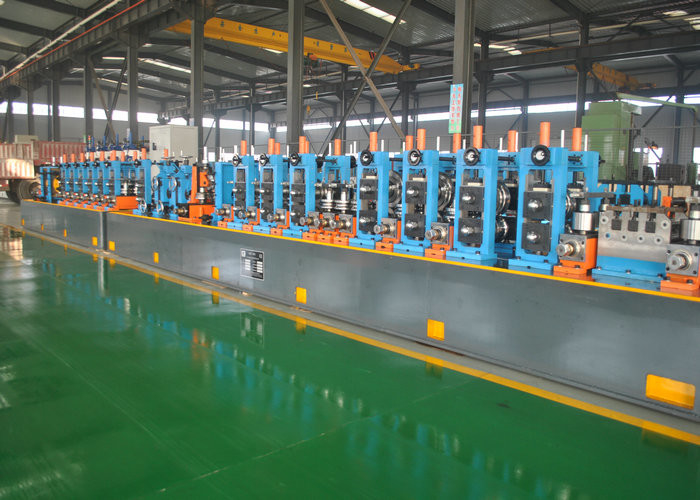

Precision Tube Mill 25-76mm High Frequency Welding Machine

Name: Precision Tube Mill 25-76mm High Frequency Welding Machine
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG76

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE,ISO9001,BV

Model Number:

HG76

Product Name:

Precision Tube Mill 380V/220V Industrial Tube Mills , Tube Making Machine 50HZ Frequency

Material:

HRC,CRC,Galvanised Steel

Pipe Diamete:

25-76mm

Welding Type:

High Frequency Welding

Pipe Shape:

Round,square,rectangular

Adjustment Type:

By Turbine Worm

Keyword:

Precision Tube Mill

Highlight:

High Light

Highlight:

pipe milling machine

industrial tube mills

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

90 work days/Year

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

110 Sets

Product Description

Precision Tube Mill Specifications

Attribute	Value
Product Name	Precision Tube Mill 380V/220V Industrial Tube Mills, Tube Making Machine 50HZ Frequency
Material	HRC, CRC, Galvanised Steel
Pipe Diameter	25-76mm
Welding Type	High Frequency Welding
Pipe Shape	Round, Square, Rectangular
Adjustment Type	By Turbine Worm

Technical Specifications

Certification: ISO9001, CE, ISO9001:2008
Condition: New
Pipe Material: Carbon Steel
Application: Energy Supply Pipe
Place of Origin: Hebei, China (Mainland)
Brand Name: Tengtian
Voltage: 380V/220V, 50HZ
Weight: 5T, about 10 tons
Color: Green, Grey, Blue
Thickness: 0.4-4.0mm
After-sales Service: Engineers available to service machinery overseas
Warranty: 1 year

Production Process

Material (steel coil) → Uncoiler → Shear and Welder → Horizontal (or Cage) Accumulator → Forming Mill → HF Solid Welder → Sizing Mill → Roughly Straightening (Turkey Head) → Cut Off Machine → Run Out Table

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Applied Raw Materials

Low carbon steel, low alloy steel, galvanized steel, stainless steel, etc.
