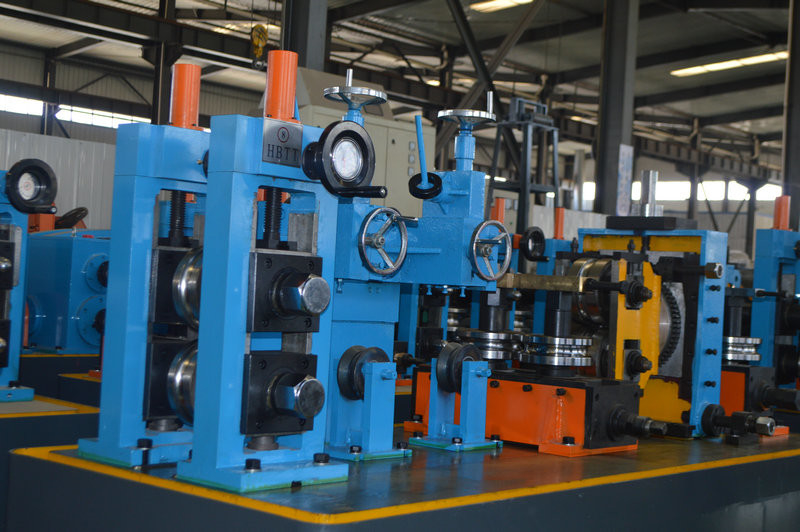

Automatic ERW Pipe Mill HG32 10-32mm Carbon Steel Tube Forming Machine
  • Automatic ERW Pipe Mill HG32 10-32mm Carbon Steel Tube Forming Machine
  • Automatic ERW Pipe Mill HG32 10-32mm Carbon Steel Tube Forming Machine
  • Automatic ERW Pipe Mill HG32 10-32mm Carbon Steel Tube Forming Machine
  • Automatic ERW Pipe Mill HG32 10-32mm Carbon Steel Tube Forming Machine
  • Automatic ERW Pipe Mill HG32 10-32mm Carbon Steel Tube Forming Machine

Automatic ERW Pipe Mill HG32 10-32mm Carbon Steel Tube Forming Machine

Product Details:
Place of Origin: hebei，china
Brand Name: tengtian
Certification: ISO9001/CE/BV
Model Number: HG32
Detail Information
Place of Origin:
hebei，china
Brand Name:
tengtian
Certification:
ISO9001/CE/BV
Model Number:
HG32
Product Name:
Automatic Weld ERW Pipe Mill HG32 Tube Forming Machine 300kw Power
Pipe Material:
Carbon Steel,Stainless Steel
Condition:
New
After-sales Service Provided:
Online Support,Video Technical Support
Voltage:
380V
Weight:
About 10 Tons
Warranty:
1 Year
Power(w):
300kw
Pipe Shape:
Round,square
Pipe Diameter:
10-32mm
Thickness:
0.4-1.5mm
Keywords:
Weld ERW Pipe Mill
Highlight:

High Light

Highlight:

erw tube mill

,

stainless tube mills

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
Seaworthy packing
Delivery Time:
three months
Payment Terms:
L/C,T/T
Supply Ability:
150 sets/year
Product Description
Automatic Weld ERW Pipe Mill HG32 Tube Forming Machine 300kw Power
Product Specifications
Attribute Value
Pipe material Carbon Steel, Stainless Steel
Condition New
After-sales service Online support, Video technical support
Voltage 380V
Weight About 10 tons
Warranty 1 year
Power 300kw
Pipe shape Round, Square
Pipe diameter 10-32mm
Thickness 0.4-1.5mm
Product Description

This high-frequency pipe welded machinery is specialized equipment for producing welded pipes from low carbon steel or low alloy steel materials. The process involves feeding steel belt into the machinery, forming it into tubes using forming rollers, then utilizing high-frequency proximity effect and skin effect to reach welding temperature. The welding is completed under squeezing roller extrusion, followed by cooling, sizing, and straightening to produce the required steel pipe.

Technical Process
  • Uncoiler
  • Straightening end
  • Pipe straightener
  • Shear & Welder
  • Storage
  • Forming, H.F. welding
  • Sizing mill
  • Flying saw
  • Pipe straightener for original pipe
  • Flatter
  • Hydraulic or scateless test equipment
  • Roller conveyor and conveyor table
  • Packing device
  • Electric control system
ERW Tube Mill Models
Model Diameter Range Pipe Thickness Line Speed (m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20
