Home > products >
ERW Pipe Mill
>

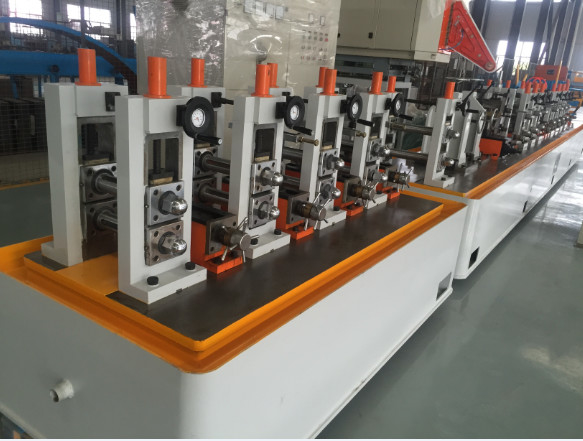

300W Carbon Steel Square Pipe Manufacturing Machine 10-32mm
300W Carbon Steel Square Pipe Manufacturing Machine 10-32mm
  • 300W Carbon Steel Square Pipe Manufacturing Machine 10-32mm
  • 300W Carbon Steel Square Pipe Manufacturing Machine 10-32mm
  • 300W Carbon Steel Square Pipe Manufacturing Machine 10-32mm

300W Carbon Steel Square Pipe Manufacturing Machine 10-32mm

Product Details:
Place of Origin: HEBEI，CHINA
Brand Name: TENGTIAN
Certification: CE/ISO9001/BV
Model Number: HG32
Detail Information
Place of Origin:
HEBEI，CHINA
Brand Name:
TENGTIAN
Certification:
CE/ISO9001/BV
Model Number:
HG32
Product Name:
Welded Steel Pipe100m/Min 300w Square Pipe Manufacturing Machine
Pipe Material:
Carbon Steel
Voltage:
380V/220V
Weight:
About 12 Tons
Pipe Shape:
Round,square
Pipe Diameter:
10-32mm
Thickness:
0.4-1.5mm
Speed:
30-100m/min
Power(w):
300w
Keywords:
Square Pipe Manufacturing Machine
Highlight:

High Light

Highlight:

100m/min square pipe manufacturing machine

,

300w square pipe manufacturing machine

,

100m/min square tube manufacturing machine

Trading Information
Minimum Order Quantity:
1SET
Price:
$100000 to $1 million
Packaging Details:
Seaworthy packing
Delivery Time:
3 months
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
150 units one year
Product Description
Welded Steel Pipe100m/Min 300w Square Pipe Manufacturing Machine
Product Specifications
Attribute Value
Product Name Welded Steel pipe100m/Min 300w Square Pipe Manufacturing Machine
Pipe Material Carbon Steel
Voltage 380V/220V
Weight About 12 tons
Pipe Shape Round, Square
Pipe Diameter 10-32mm
Thickness 0.4-1.5mm
Speed 30-100m/min
Power 300w
Product Description

The H32 steel square pipe making machine is designed for manufacturing round pipes of Φ10mm-Φ32mm with thickness of 0.4mm-1.5mm from cold-rolled and hot-rolled coil strip. The process involves forming unclosed tubular blanks, welding them into tubes using high-frequency welding, followed by cooling, sizing/shaping, and cutting to measured lengths.

This versatile machine can produce round, square, or rectangular pipes to meet various industrial requirements.

Key Features
  • Supports multiple materials including carbon steel and GI
  • Produces a wide range of pipe sizes by changing molds
  • Capable of manufacturing both square and round pipes with mold changes
  • Finished pipes suitable for diverse applications including water tubes and wire pipes
Production Process
Steel Tape → Double-head uncoiler → Strip-head Cutter and welder → Spiral accumulator → Forming section (Flattening unit + Main driving unit + Forming unit + Guide unit + High frequency induction welding unit + squeeze roller) → Removing External and internal burr → Cooling unit → Sizing unit and straightener → Flying saw under computer-control → Run-out table
Technical Specifications
Model Diameter(mm) Thickness(mm) Speed(m/min) Main power(kw) HF welder(KW) Area(m²)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100
