80x80mm Steel Pipe Production Line with 380V ISO9001 Certification

Name: 80x80mm Steel Pipe Production Line with 380V ISO9001 Certification
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	Tengtian
Certification:	CE ISO9001
Model Number:	HG76

Detail Information

Place of Origin:

HEBEI,CHINA

Brand Name:

Tengtian

Certification:

CE ISO9001

Model Number:

HG76

Type:

Pipe Production Line

Voltage:

380V

Warranty:

1 Year

Machinery Test:

Provided

After Warranty Service:

Video Technical Support

Certification:

ISO9001/BV/CE, CE ISO BV

Highlight:

High Light

Highlight:

80x80 steel pipe production line

1mm steel pipe production line

800kva steel pipe production line

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

packed in seaworthy material

Delivery Time:

three months

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

200 set per year

Product Description

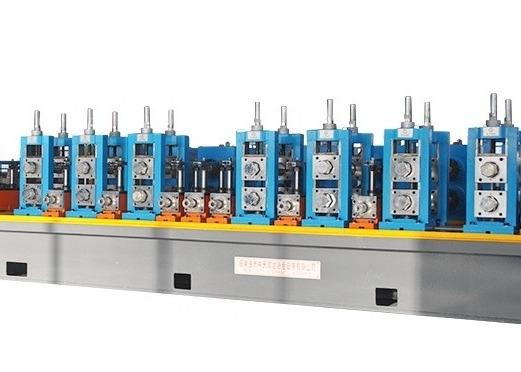

Roll Rectangular 80x80 1mm Steel Pipe Production Line

Product Specifications

Attribute	Value
Type	Pipe Production Line
Voltage	380V
Warranty	1 Year
Machinery Test	Provided
After Warranty Service	Video technical support
Certification	ISO9001/BV/CE, CE ISO BV

Product Description

This high-frequency solid welder steel pipe production line efficiently manufactures round, square, and rectangular pipes at high speeds, including specialized L, T, and Z shape pipes. The system reduces roller costs while ensuring superior finished pipe quality.

Key Features

Material Compatibility: Hot rolled or cold rolled steel strip (Low carbon steel and low alloy constructional steel, δs≤345Mpa, δb≤610Mpa)
Processing Range: Round pipes Φ12-Φ76mm (1-3mm thickness), Square/Rectangular pipes 20x20-80x80 (1-2.5mm thickness)
Power Requirements: 800KVA installed capacity
Water Consumption: 50m³/h
Welding Capacity: 300KW or 400KW solid-state high-frequency welder
Workspace Requirements: 50m (L) × 12m (W) × 6m (H)
Production Speed: 30-100m/min

Production Process

Material (steel coil) → Uncoiler → Shear and Welder → Horizontal/Cage Accumulator → Forming Mill → HF Solid Welder → Sizing Mill → Rough Straightening (Turkey Head) → Cut Off Machine → Run Out Table

Technical Parameters

Parameter	Value
Forming Mill Stands	7
Sizing Mill Stands	5
Shaft Material	40Cr
Round Pipe Diameter	30-76mm
Round Pipe Thickness	1.0-3.5mm
Square Pipe Size	25×25-60×60mm
Square Pipe Thickness	1.0-2.5mm

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Note: The above models are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to your specific requirements.
