Cold Saw HRC Steel Tube Making Machine 80m/min Production Line

Name: Cold Saw HRC Steel Tube Making Machine 80m/min Production Line
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG32 Tube Mill
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Tengtian
Certification:	CE / ISO
Model Number:	HG32 Tube Mill

Detail Information

Place of Origin:

China

Brand Name:

Tengtian

Certification:

CE / ISO

Model Number:

HG32 Tube Mill

Mill Name:

Cold Saw HRC Steel Tube Making Machine 80m/Min Production Line

Welding Type:

High Frequency Welding

Cutting Saw:

Cold Saw & Friction Saw Cutting

Feature:

High Precision; More Stable; High Speed;

Customized:

Machine Designing As Per Customer Requirement

Welding Speed:

Max.80m/Min

Raw Material:

HRC, CRC, Galvanised Steel

Highlight:

High Light

Highlight:

HRC Steel Square Pipe Making Machine

HRC Square Pipe Making Machine

80m/Min Steel Square Pipe Making Machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

2 Months - 4 Months

Payment Terms:

T/T,L/C

Supply Ability:

100 Sets/Year

Product Description

Cold Saw HRC Steel Tube Making Machine 80m/Min Production Line

Product Specifications

Attribute	Value
Mill Name	Cold Saw HRC Steel Tube Making Machine 80m/Min Production Line
Welding Type	High Frequency Welding
Cutting Saw	Cold Saw & Friction Saw Cutting
Feature	High Precision; More Stable; High Speed
Customized	Machine Designing As Per Customer Requirement
Welding Speed	Max.80m/Min
Raw Material	HRC, CRC, Galvanised Steel

Product Description

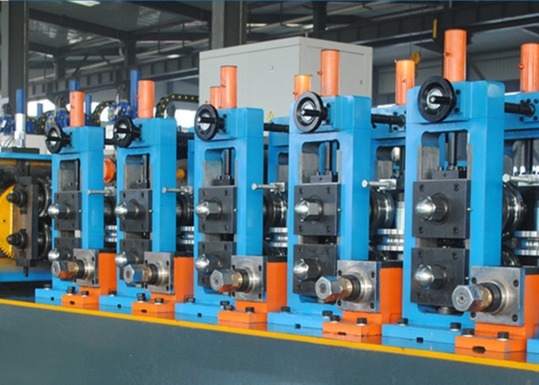

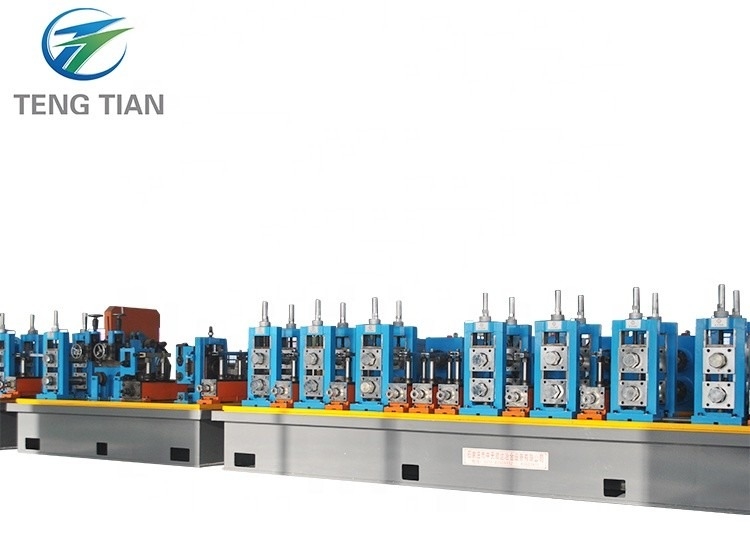

The Cold Saw HRC Steel Tube Making Machine 80m/Min Production Line manufactures round pipes of Φ12mm-Φ32mm with thickness of 0.5mm-2.0mm from cold-rolled and hot-rolled coil strip. The process includes forming unclosed tubular blanks, welding into tubes using high-frequency welding, cooling, sizing/shaping, and cutting to measured lengths.

Key Advantages

High precision: Level roller jumps 0.01, frame and slide clearance ≤0.02, frame vertical degree ≤0.05, each frame parallel degree ≤0.1, steel pipe diameter and roundness error ≤0.08
Incorporates Japanese technology for high accuracy requirements
Schedulable worm gear and worm adjustment for precise, energy-efficient operation
3D adjustable scraping scar with ±20° rotation capability
Turkish head push square system reduces mold weight while maintaining stable forming and uniform R Angle
Nylon damping blocks reduce impact on shaft and bearing

Technical Specifications

Raw Material: HRC, CRC, Galvanised Steel
Production Range: Φ12mm-Φ32mm diameter, 0.5mm-2.0mm thickness
H.F. Welder: GGP150Kw Solid State High Frequency Welder
Line Speed: Max. 120m/min
Tube Length: 4-12m
Cutting Accuracy: ±3mm
Electric installed capacity: approx. 300KW
Size of whole line: about 50×5m

CE & ISO9001:2008 certified. Our high-quality machines are exported to nearly 30 countries including Turkey, Egypt, Mexico, and Southeast Asian nations.

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse
