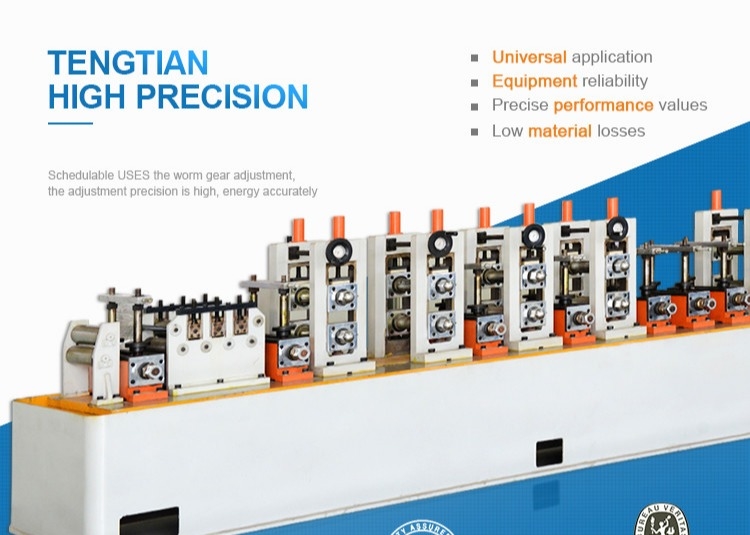

4mm High Precision Square Tube Mill for Carbon Steel Pipes

Name: 4mm High Precision Square Tube Mill for Carbon Steel Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Tengtian
Certification:	CE / ISO
Model Number:	HG76

Detail Information

Place of Origin:

China

Brand Name:

Tengtian

Certification:

CE / ISO

Model Number:

HG76

Cutting Saw:

Cold Saw & Friction Saw Cutting

Feature:

High Precision; More Stable; High Speed;

Customized:

Machine Designing As Per Customer Requirement

Welding Speed:

30-100m/min

Raw Material:

HRC, CRC, Galvanised Steel

Applicable Industries:

4mm High Precision Rectangular And Square Tube Mill

Power:

350KW

Pipe Wall Thickness:

0.7-4mm

Highlight:

High Light

Highlight:

rectangular erw pipe making machine

high precision erw pipe making machine

4mm erw pipe making machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

2 Months - 4 Months

Payment Terms:

T/T,L/C

Supply Ability:

100 Sets/Year

Product Description

4mm High Precision Rectangular and Square Tube Mill

Key Specifications

Attribute	Value
Cutting Saw	Cold Saw & Friction Saw Cutting
Feature	High Precision; More Stable; High Speed
Customized	Machine Designing As Per Customer Requirement
Welding Speed	30-100m/min
Raw Material	HRC, CRC, Galvanised Steel
Power	350KW
Pipe Wall Thickness	0.7-4mm

Product Overview

Applicable Industries: Building Material Shops, Construction works
After Warranty Service: Video technical support, Online support
Local Service Location: Egypt, Pakistan, India
Core Components: Engine, Bearing, Motor, Gear
Type: Pipe Production Line
Pipe Material: Carbon Steel
Application: Energy Supply Pipe
Production Capacity: 30-100m/min
Brand Name: Tengtian
Certification: ISO9001, CE, BV
Warranty: One Year

Product Description

The HG76 mill is used to manufacture round pipes of Φ25mm-Φ76mm with thickness of 1.0mm-4.0mm from cold-rolled and hot-rolled coil strip. The process includes forming unclosed tubular blanks, welding into tubes using high-frequency welding, cooling, sizing, and cutting to measured lengths.

Precision Advantages:

Level roller jumps: 0.01mm
Frame and slide clearance: ≤0.02mm
Frame vertical degree: ≤0.05mm
Frame parallel degree: ≤0.1mm
Steel pipe diameter and roundness error: ≤0.08mm

Production Process

material (steel coil) → uncoiler → shear and welder → horizontal (or cage) accumulator → forming mill → HF solid welder → sizing mill → roughly straightening (turkey head) → cut off machine → run out table

Technical Parameters

Parameter	Value
Stands of forming mill	7
Stands of sizing mill	5
Shaft material	40Cr
Round pipe diameter	19-76mm
Round pipe thickness	1.5-3.0mm
Square pipe size	15×15-60×60mm
Square pipe thickness	1.5-2.0mm

Available Models

Model	Diameter Range	Pipe Thickness	Line Speed (m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
