220V Steel Coil Slitting Machine 30-60m/min 20mm Thickness
  • 220V Steel Coil Slitting Machine 30-60m/min 20mm Thickness
  • 220V Steel Coil Slitting Machine 30-60m/min 20mm Thickness
  • 220V Steel Coil Slitting Machine 30-60m/min 20mm Thickness

220V Steel Coil Slitting Machine 30-60m/min 20mm Thickness

Product Details:
Place of Origin: Hebei，China
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: TT3X1600
Detail Information
Place of Origin:
Hebei，China
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
TT3X1600
Name:
220v 30-60m/Min 20mm Steel Coil Slitting Machine
Warranty:
1 Year
Voltage:
380V/220V
Weight:
Max 30 Ton
DC Motors:
280KW, 315KW
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Coil Width:
800~2000mm
Thickness Range:
5-20mm
Highlight:

High Light

Highlight:

20mm steel coil slitting machine

,

20mm coil slitting machine

,

60m/min steel coil slitting machine

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
120 work days
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
40 Sets/Year
Product Description
220V 30-60m/Min 20mm Steel Coil Slitting Machine
Product Specifications
Attribute Value
Warranty 1 Year
Voltage 380V/220V
Weight Capacity Max 30 Ton
DC Motors 280KW, 315KW
After-sales Service Engineers available to service machinery overseas
Coil Width 800~2000mm
Thickness Range 5-20mm
Key Features
  • High-accuracy slitting performance
  • Adjustable slitting speed (30-60 m/min)
  • Handles various metal coils including carbon steel, galvanized plate, and colored steel plate
  • Customizable design according to customer requirements
  • ISO9001 and CE certified
  • Comprehensive after-sales support including online and video technical assistance

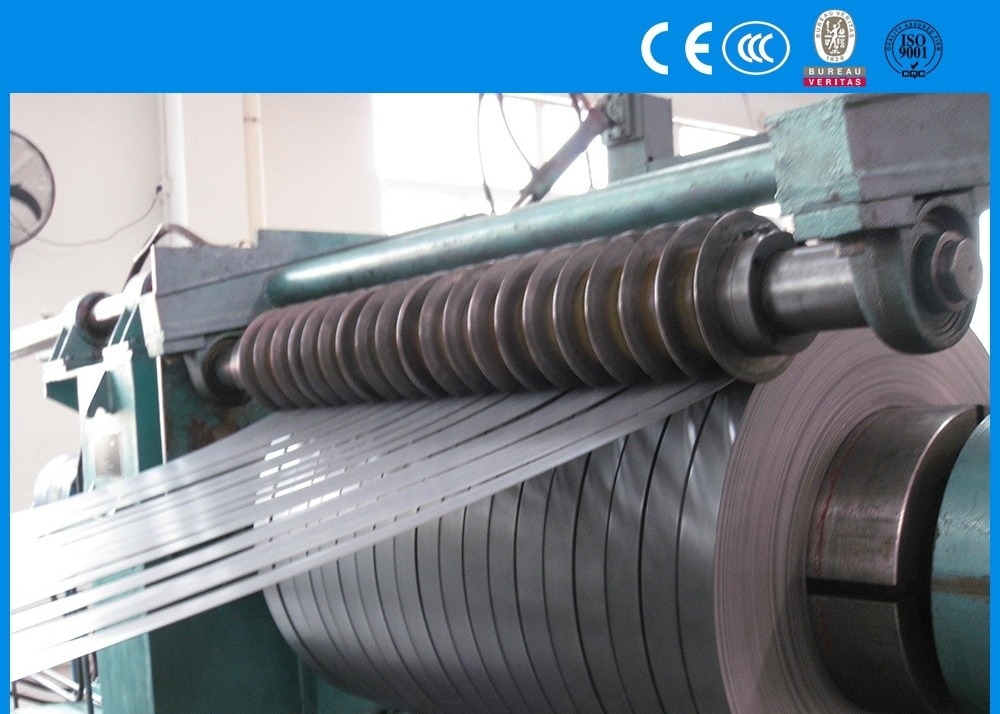

220V Steel Coil Slitting Machine 30-60m/min 20mm Thickness 0
Machine Description

The slitting line machine consists of uncoiler, feeder, slitter and recoiler. Its primary function is to slit wide coils into specified width strips along the length direction, suitable for milling, pipe welding, cold bend forming, and stamping applications. By changing material blades, it can process various metal coils.

Technical Parameters
Material Compatibility HR/CR carbon steel (Q235), galvanized plate, colored steel plate
Strip Thickness 5-20mm
Strip Width 800-2000mm
Max Coil Weight 40,000 kgs
Leveling Roller Diameter Φ260
Slitter Shaft Diameter Φ420
Disc Cutters 6CrW2Si, HRC54°~56°, OD650mm x ID420mm x T50mm
Recoiler Block Diameter Φ800mm
Separating Discs 65Mn, OD250 x ID110 x T10/20mm
220V Steel Coil Slitting Machine 30-60m/min 20mm Thickness 1
Operation Process

Loading coil car → Uncoiler → Straightener device → Pinch roll & leveler & hydraulic shearer → Loop pit → Side guide → Slitter → Transition platform & scrap winder → Loop pit → Tension station → Recoiler → Unloading coil car.

Available Models
Model Plate Thickness Plate Width Coil Weight Finished Width Shear Speed
3*1250mm 0.5-3.0mm 700-1250mm 25 Ton <40mm 120 m/min
4*1250mm 0.5-4.0mm 700-1250mm 25 Ton <40mm 120 m/min
6*1250mm 0.5-6.0mm 700-1250mm 25 Ton <40mm 120 m/min
3*1600mm 0.5-3.0mm 900-1600mm 30 Ton ≥40mm 120 m/min
4*1600mm 0.5-4.0mm 900-1600mm 30 Ton ≥60mm 110 m/min
6*1600mm 1-6mm 900-1600mm 30 Ton ≥60mm 100 m/min
Note: Specifications are for reference only. Our engineering team can customize machines according to your specific requirements.

For inquiries or custom orders, please contact our sales team.

220V Steel Coil Slitting Machine 30-60m/min 20mm Thickness 2
