1600mm Steel Slitting Machine with Uncoiler Feeder and Recoiler

Name: 1600mm Steel Slitting Machine with Uncoiler Feeder and Recoiler
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: TT3X1600
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	TT3X1600

Detail Information

Place of Origin:

Hebei，China

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

TT3X1600

Name:

1600mm Composed Of Uncoiler Feeder Slitter And Recoiler Steel Slitting Machine

Warranty:

1 Year

Voltage:

380V/220V

Weight:

Max 30 Ton

DC Motors:

280KW, 315KW

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Coil Width:

900 - 1600

Material Thickness:

Mm): 0.5 - 3

Highlight:

High Light

Highlight:

1600mm steel slitting machine

recoiler steel slitting machine

uncoiler steel slitting machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

40 Sets/Year

Product Description

1600mm Composed Of Uncoiler Feeder Slitter And Recoiler Steel Slitting Machine

Attribute	Value
Name	1600mm Composed Of Uncoiler Feeder Slitter And Recoiler Steel Slitting Machine
Warranty	1 Year
Voltage	380V/220V
Weight	Max 30 Ton
DC motors	280KW, 315KW
After-sales Service	Engineers available to service machinery overseas
Coil Width	900 - 1600mm
Material Thickness	0.5 - 3mm

Product Overview

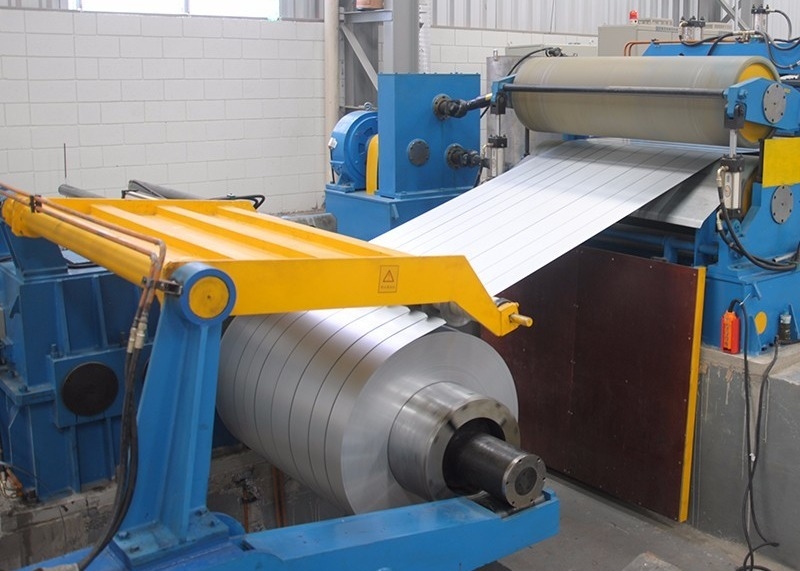

This steel slitting machine is composed of uncoiler, feeder, slitter and recoiler. Its primary function is to slit wide coils into specified width strips along the length direction, which can then be used for milling, pipe welding, cold bend forming, or stamping as billet material. The machine can process various metal coils by changing different material blades.

Main Technical Parameters

Parameter	Specification
Material of coils	HR/CR carbon steel (Q235), galvanized plate, colored steel plate
Strip thickness	5-20mm
Strip width	800-2000mm
Max. coil weight	40,000kg
Diameter of leveling rollers & tensioning roller	Φ260mm
Diameter of slitter shaft	Φ420mm
Disc cutters	6CrW2Si, HRC54°-56°, OD650mm × ID420mm × T50mm
Diameter of recoiler block	Φ800mm
Separating discs	65Mn, OD250 × ID110 × T10/20mm
Slitting speed	30-60 m/min (adjustable)

Production Process

Loading coil car → Uncoiler → Straightener device → Pinch roll & leveler & hydraulic shearer → Loop pit → Side guide → Slitter → Transition platform & scrap winder → Loop pit → Tension station → Recoiler → Unloading coil car

Available Models

Model	Plate Thickness	Plate Width	Coil Weight	Finished Width	Shear Speed
3×1250mm	0.5-3.0mm	700-1250mm	25 Ton	<40mm	120 m/min
4×1250mm	0.5-4.0mm	700-1250mm	25 Ton	<40mm	120 m/min
6×1250mm	0.5-6.0mm	700-1250mm	25 Ton	<40mm	120 m/min
3×1600mm	0.5-3.0mm	900-1600mm	30 Ton	≥40mm	120 m/min
4×1600mm	0.5-4.0mm	900-1600mm	30 Ton	≥60mm	110 m/min
6×1600mm	1-6mm	900-1600mm	30 Ton	≥60mm	100 m/min
8×2000mm	2-8mm	900-2000mm	35 Ton	≥70mm	60 m/min
10×2200mm	3-10mm	900-2200mm	35 Ton	≥80mm	50 m/min
12×2200mm	3-12mm	900-2200mm	35 Ton	≥100mm	40 m/min
16×2500mm	4-16mm	900-2500mm	35 Ton	≥100mm	40 m/min
20×2500mm	6-20mm	900-2500mm	35 Ton	≥100mm	30 m/min

Note: These models are for reference only. The product range and thickness are adjustable. Our engineering team can design machines according to specific customer requirements.
