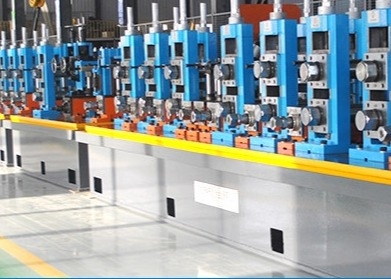

Galvanized Carbon Steel Square Tube Mill 114-219mm

Name: Galvanized Carbon Steel Square Tube Mill 114-219mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Tengtian
Certification:	CE / ISO
Model Number:	HG219

Detail Information

Place of Origin:

China

Brand Name:

Tengtian

Certification:

CE / ISO

Model Number:

HG219

Forming Method:

Galvanized Carbon Steel 114mm 219mm Square Tube Mill

Welding Type:

Hebei, China (Mainland)

Cutting Saw:

Cold Saw & Friction Saw Cutting

Pipe Diameter:

114-219mm

Pipe Thickness:

4-8mm

Molding Speed:

20-40m/min

Material:

Carbon Steel

Applicable Industries:

Manufacturing Plant, Machinery Repair Shops

Highlight:

High Light

Highlight:

219mm erw tube mill machine

114mm erw tube mill machine

galvanized erw tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

2 Months - 4 Months

Payment Terms:

T/T,L/C

Supply Ability:

100 Sets/Year

Product Description

Galvanized Carbon Steel 114mm 219mm Square Tube Mill

Product Specifications

Model Number	HG219
Place of Origin	Hebei, China (Mainland)
Molding Speed	20-40m/min
Pipe Diameter	114-219mm
Pipe Thickness	4-8mm
Voltage	380V/220V
Power	800KW
Certification	ISO 9001, CE, BV
Pipe Shape	Rectangle, Round, Square
Material of Pipe	Carbon Steel, Stainless Steel, Galvanized Steel

Product Description

The Galvanized Carbon Steel 114mm 219mm Square Tube Mill processes steel belts through a feeding unit, where rolls curl the material into tube billets. High-frequency proximity and skin effects heat the strip edges to welding temperature, with squeezing rollers completing the weld. The pipe then undergoes water cooling, sizing, and straightening to achieve required specifications.

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

ERW Tube Mill Other Models

Model	Diameter Range	Pipe Thickness	Molding Speed (m/min)	Motor Power (KW)	Mechanical Area (m³)
HG20	8-20MM	0.3-1MM	30-120	55	7×50
HG32	12-32MM	0.3-2.0MM	30-120	75	7×50
HG50	16-50MM	0.8-2.5MM	30-110	110	7×60
HG60	20-60MM	0.8-3MM	30-100	132	7×65
HG76	12-76MM	1-3MM	30-100	320	8×80
HG89	32-89MM	1-4MM	30-80	350	8×80
HG114	45-114MM	1.5-5.0MM	30-60	400	10×100
HG165	60-165MM	3-7MM	30-50	600	10×110
HG219	114-219MM	4-8MM	20-40	800	12×150
HG273	114-273MM	4-10MM	15-30	1000	18×160
HG325	165-325MM	4-12MM	10-30	1200	18×180
HG426	165-426MM	4-16MM	8-25	1400	18×180
HG508	219-508MM	4-20MM	8-20	2000	21×180
