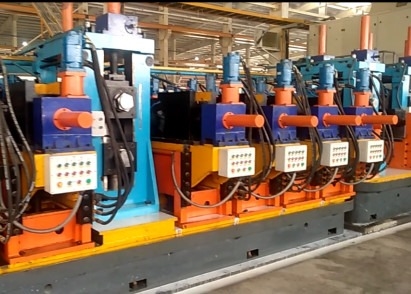

219mm Carbon Steel Pipe Production Line with High Frequency Welding

Name: 219mm Carbon Steel Pipe Production Line with High Frequency Welding
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG508
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Tengtian
Certification:	CE / ISO
Model Number:	HG508

Detail Information

Place of Origin:

China

Brand Name:

Tengtian

Certification:

CE / ISO

Model Number:

HG508

Mill Name:

Carbon Cold Rolled Welded 219mm Steel Pipe Production Line

Welding Type:

High Frequency Welding

Cutting Saw:

Cold Saw & Friction Saw Cutting

Feature:

High Precision; More Stable; High Speed;

Customized:

Machine Designing As Per Customer Requirement

Welding Speed:

8-20

Raw Material:

HRC, CRC, Galvanised Steel

Name:

Steel Pipe Making Machine

Highlight:

High Light

Highlight:

219mm steel pipe making machine

CE steel pipe making machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

2 Months - 4 Months

Payment Terms:

T/T,L/C

Supply Ability:

100 Sets/Year

Product Description

Carbon Cold Rolled Welded 219mm Steel Pipe Production Line

Key Attributes

Attribute	Value
Mill Name	Carbon Cold Rolled Welded 219mm Steel Pipe Production Line
Welding Type	High Frequency Welding
Cutting Saw	Cold Saw & Friction Saw Cutting
Feature	High Precision; More Stable; High Speed
Customized	Machine Designing As Per Customer Requirement
Welding Speed	8-20
Raw Material	HRC, CRC, Galvanised Steel

Product Specifications

Model Number	HG508
Place of Origin	Hebei, China (Mainland)
Molding speed	8-20m/min
Pipe diameter	219-508MM
Pipe Thickness	4-20mm
Voltage	380V/220V
Power	2000KW
Certification	ISO9001,CE,BV
Pipe shape	Rectangle, round, square
Material of Pipe	Carbon Steel, Stainless Steel and Galvanized Steel

The Carbon Cold Rolled Welded 219mm Steel Pipe Production Line processes steel belt through a feeding unit, where rolls curl it into tube billet steel. High frequency proximity and skin effects heat the strip edges to welding temperature, with squeezing rollers completing the weld. The pipe then undergoes water cooling, sizing, and straightening to meet required specifications. This production line combines domestic and international equipment innovations with China's specific conditions, offering convenient operation and maintenance. With high machining quality and assembly precision, it produces electric welded steel pipes with exceptional accuracy.

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

ERW Tube Mill Models

Model	Diameter Range	Pipe Thickness	Molding speed(m/min)	Motor Power(KW)	Mechanical area (m³)
HG20	8-20MM	0.3-1MM	30-120	55	7×50
HG32	12-32MM	0.3-2.0MM	30-120	75	7×50
HG50	16-50MM	0.8-2.5MM	30-110	110	7×60
HG60	20-60MM	0.8-3MM	30-100	132	7×65
HG76	12-76MM	1-3MM	30-100	320	8×80
HG89	32-89MM	1-4MM	30-80	350	8×80
HG114	45-114MM	1.5-5.0MM	30-60	400	10×100
HG165	60-165MM	3-7MM	30-50	600	10×110
HG219	114-219MM	4-8MM	20-40	800	12×150
HG273	114-273MM	4-10MM	15-30	1000	18×160
HG325	165-325MM	4-12MM	10-30	1200	18×180
HG426	165-426MM	4-16MM	8-25	1400	18×180
HG508	219-508MM	4-20MM	8-20	2000	21×180

Our Services

Engineer dispatch for installation and operator training
One year quality guarantee with lifetime repair service
Pre-sell and after-sell service including workshop design and production output planning
Optional extended engineer support (several months to 1 year) to improve output and reduce waste
Complete project design for stainless steel/carbon steel pipe production
Responsibility for loading and shipping
