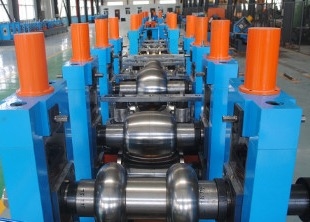

HRC Steel Pipe Production Line 80m/min High Frequency Welding

Name: HRC Steel Pipe Production Line 80m/min High Frequency Welding
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG89
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Tengtian
Certification:	CE / ISO
Model Number:	HG89

Detail Information

Place of Origin:

China

Brand Name:

Tengtian

Certification:

CE / ISO

Model Number:

HG89

Forming Method:

Cold Roll Forming By Rollers

Welding Type:

High Frequency Welding

Cutting Saw:

Cold Saw & Friction Saw Cutting

Feature:

High Precision; More Stable; High Speed;

Customized:

Machine Designing As Per Customer Requirement

Welding Speed:

30-80m/min

Raw Material:

HRC, CRC, Galvanised Steel

Name:

Stable Gas 80m/Min Hrc Steel Pipe Production Line

Highlight:

High Light

Highlight:

80m/min steel pipe production line

HRC steel pipe production line

Hrc Pipe Production Line

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

2 Months - 4 Months

Payment Terms:

T/T,L/C

Supply Ability:

100 Sets/Year

Product Description

Stable Gas 80m/Min HRC Steel Pipe Production Line

Key Features

Cold Roll Forming by Rollers
High Frequency Welding Technology
Cold Saw & Friction Saw Cutting
High Precision and Stable Operation
Custom Machine Design Available
Welding Speed: 30-80m/min
Compatible with HRC, CRC, and Galvanized Steel

Technical Specifications

Model Number	HG89
Place of Origin	Hebei, China
Molding Speed	30-80m/min
Pipe Diameter Range	32-89mm
Pipe Thickness Range	1-4mm
Voltage	380V/220V
Power	350KW
Certifications	ISO9001, CE, BV
Pipe Shapes	Rectangle, Round, Square
Material Compatibility	Carbon Steel, Stainless Steel, Galvanized Steel

Production Overview

This high frequency straight seam welded pipe production line processes steel strips through a feeding unit, where rollers form them into tube billets. Using high-frequency proximity and skin effects, the strip edges are instantly heated to welding temperature and joined under pressure from squeezing rollers. The welded pipe then undergoes water cooling, sizing, and straightening to achieve required specifications.

Production Process

Scroll up
Uncoil
Flattening
End Shear & Butt Welding
Accumulator
Forming
High-frequency induction welding
Removing external burr
Cooling
Sizing
Cutting
Checking & Collecting
Accessing Warehouse

ERW Tube Mill Model Specifications

Model	Diameter Range	Pipe Thickness	Molding Speed (m/min)	Motor Power (KW)	Mechanical Area (m³)
HG20	8-20MM	0.3-1MM	30-120	55	7×50
HG32	12-32MM	0.3-2.0MM	30-120	75	7×50
HG50	16-50MM	0.8-2.5MM	30-110	110	7×60
HG60	20-60MM	0.8-3MM	30-100	132	7×65
HG76	12-76MM	1-3MM	30-100	320	8×80
HG89	32-89MM	1-4MM	30-80	350	8×80
HG114	45-114MM	1.5-5.0MM	30-60	400	10×100
HG165	60-165MM	3-7MM	30-50	600	10×110
HG219	114-219MM	4-8MM	20-40	800	12×150
HG273	114-273MM	4-10MM	15-30	1000	18×160
HG325	165-325MM	4-12MM	10-30	1200	18×180
HG426	165-426MM	4-16MM	8-25	1400	18×180
HG508	219-508MM	4-20MM	8-20	2000	21×180

Our Services

Installation & Training: We provide engineers for machine installation and worker training.

Warranty: 1-year quality guarantee with lifetime repair support. Free repair parts during warranty period (excluding human error).

Comprehensive Support: Pre-sale services include workshop and production output design. After-sale services include installation, training, and technical support.

Extended Engineering Support: We can provide engineers to work onsite for several months to improve output, reduce waste, and decrease costs.

Project Design: Complete project design services for stainless steel and carbon steel pipe production.

Shipping: We handle all loading and shipping arrangements.
