0.6mm High Speed Steel Coil Slitting Machine 300-1500mm Width
0.6mm High Speed Steel Coil Slitting Machine 300-1500mm Width
  • 0.6mm High Speed Steel Coil Slitting Machine 300-1500mm Width
  • 0.6mm High Speed Steel Coil Slitting Machine 300-1500mm Width

0.6mm High Speed Steel Coil Slitting Machine 300-1500mm Width

Product Details:
Place of Origin: Hebei，China
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: ZJ1500×6.0mm
Detail Information
Place of Origin:
Hebei，China
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
ZJ1500×6.0mm
Name:
0.6mm Plate Cutting Coil Slitter Machine High Speed Steel Slitting Machine
Warranty:
1 Year
Voltage:
380V/220V
Weight:
Max 30 Ton
Steel Coil Weight (T):
24000kg
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Coil Width:
300~1500mm
Material Thickness:
0.6~ 6.0mm
Highlight:

High Light

Highlight:

steel plate cutting coil slitter

,

plate cutting steel coil slitter

,

0.6mm steel coil slitter

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
120 work days
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
40 Sets/Year
Product Description
0.6mm Plate Cutting Coil Slitter Machine High Speed Steel Slitting Machine
Key Specifications
Attribute Value
Warranty 1 Year
Voltage 380V/220V
Weight Capacity Max 30 Ton
Steel Coil Weight 24000kg
After-sales Service Engineers available to service machinery overseas
Coil Width Range 300~1500mm
Material Thickness 0.6~6.0mm
Product Description

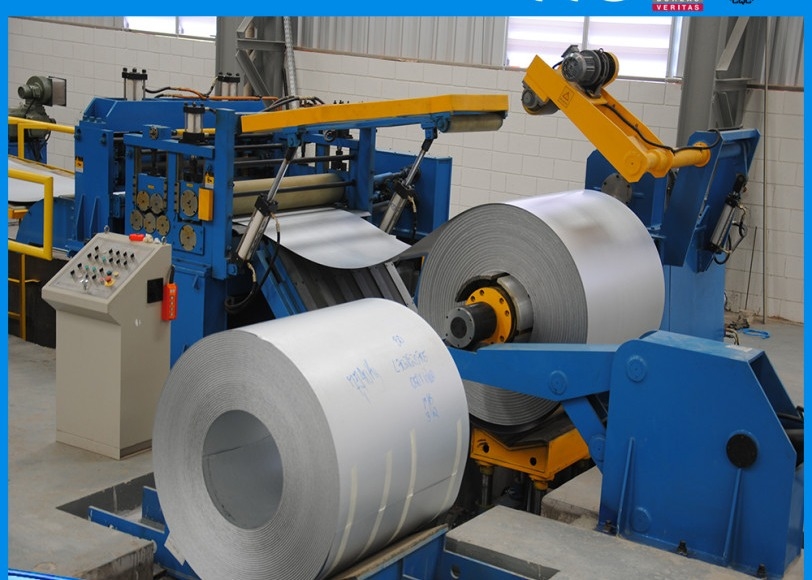

This high-speed steel slitting machine is designed for precision cutting of metal coils into specified width strips. Composed of uncoiler, feeder, slitter, and recoiler components, it efficiently processes wide coils into narrower strips for various industrial applications including milling, pipe welding, cold bend forming, and stamping operations.

Material Specifications
  • Material Types: Cold-rolled steel plate, galvanized sheet, and similar metals
  • Plate Thickness: 0.6~6.0 mm
  • Plate Width: 300~1500mm
  • Coil Inner Diameter: Φ508mm-Φ910mm
  • Coil Outer Diameter: ≤Φ1800mm
  • Maximum Coil Weight: 24000kg
Finished Product Specifications
  • Strip Width Accuracy: High precision cutting
  • Minimum Strip Width: 75mm (for plate thickness ≤1mm)
  • Winding Maximum Weight: 24000kg
Production Process
  1. Loading coil car
  2. Uncoiler
  3. Straightener device
  4. Pinch roll & leveler & hydraulic shearer
  5. Loop pit
  6. Side guide
  7. Slitter
  8. Transition platform & scrap winder
  9. Loop pit
  10. Tension station
  11. Recoiler
  12. Unloading coil car
Available Models
Model (mm) Plate Thickness (mm) Plate Width (mm) Steel Coil Weight (T) Finished Width (mm) Shear Article Number Shear Speed (m/min)
3×500 0.4-3 100-500 7 ≥30 ≤6 140
3×600 0.4-3 100-600 8 ≥30 ≤6 140
3×800 0.5-3 200-800 10 ≥30 ≤8 140
3×1250 0.5-3 400-1250 15 ≥30 ≤10 120
3×1500 0.5-3 600-1500 20 ≥30 ≤12 120
3×1800 0.5-3 900-1600 30 ≥40 ≤13 120
4×1600 0.5-4 900-1600 30 ≥60 ≤13 120
6×1600 1-6 900-1600 30 ≥60 ≤10 110
8×2000 2-8 900-2000 35 ≥70 ≤6 100
10×2200 3-10 900-2200 35 ≥80 ≤5 80
12×2200 3-12 900-2200 35 ≥100 ≤5 50
16×2500 4-16 900-2500 35 ≥100 ≤5 40
20×2500 6-20 900-2500 35 ≥100 ≤4 40
