CE HG153 High Frequency Steel Pipe Production Line 1-3mm Thickness

Name: CE HG153 High Frequency Steel Pipe Production Line 1-3mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG153
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Tengtian
Certification:	CE / ISO
Model Number:	HG153

Detail Information

Place of Origin:

China

Brand Name:

Tengtian

Certification:

CE / ISO

Model Number:

HG153

Product Name:

CE Hg153 Thickness 1-3mm High Frequency Steel Pipe Production Line

Strip Thickness:

1-3mm

Coil Weight:

6 Ton

Round:

φ50-153mm

Square:

40*40-120*120

Welding Speed:

Max 70m/min

Fixed Cutting Length:

4-12m

Producting Period:

3 Months

Highlight:

High Light

Highlight:

3mm high frequency welded pipe mill

1mm high frequency welded pipe mill

CE high frequency welded pipe mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Special export packing, and fixed in container

Delivery Time:

3 Months

Payment Terms:

T/T,L/C

Supply Ability:

100 Sets/Year

Product Description

CE Hg153 Thickness 1-3mm High Frequency Steel Pipe Production Line

Product Specifications

Product Name	CE Hg153 Thickness 1-3mm High Frequency Steel Pipe Production Line
Strip Thickness	1-3mm
Coil Weight	6 Ton
Round Pipe Range	φ50-153mm
Square Pipe Range	4040-120120
Welding Speed	Max 70m/min
Fixed Cutting Length	4-12m
Production Period	3 months

Machine Overview

This production line is designed to manufacture welded steel pipes including round, square, and deformed pipes. Featuring advanced roll pass design, it produces high-quality welded steel pipes with precision machining and assembly.

Material Specifications

Standard	Conforming to YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical Properties	σb≤520Mpa, σs≤365MPa
Strip Width	157-480mm
Strip Thickness	1-3.0mm
Coil Inner Diameter	φ480～φ520mm
Coil Outer Diameter	φ1000～φ1800mm
Coil Weight	≤6T

Pipe Specifications

Pipe Diameter	Round: φ50-153mm, Square: 4040-120120
Thickness	1-3mm
Length	4-12m
Cutting Precision	0-6mm
Forming Speed	30-70m/min

Main Components

No.	Name	Quantity	Unit
1	Uncoiler (Single cone)	1	piece
2	Automatic shear and welder	1	piece
3	Spiral accumulator Dia 5M	1	piece
4	Forming and Sizing Mill	1	piece
5	Cold saw	1	set
6	Roll Table, Bench & Simple Packing	18 m	set
7	300KW High Frequency solid-state Welder	1	set

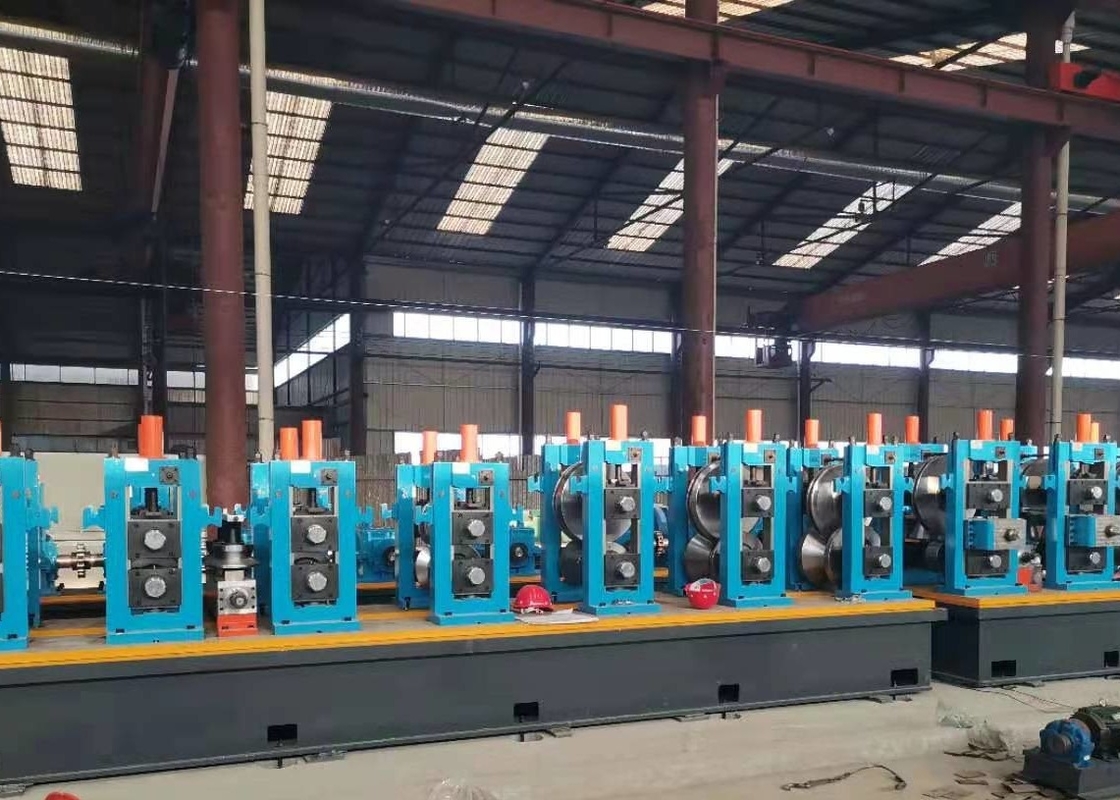

Product Images

Our Services

On-site engineer support for installation and operator training
One year quality guarantee with lifetime repair service
Comprehensive pre-sale and after-sale services including workshop design and production output planning
Option for extended engineer support (several months to 1 year) to optimize production
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping arrangements
