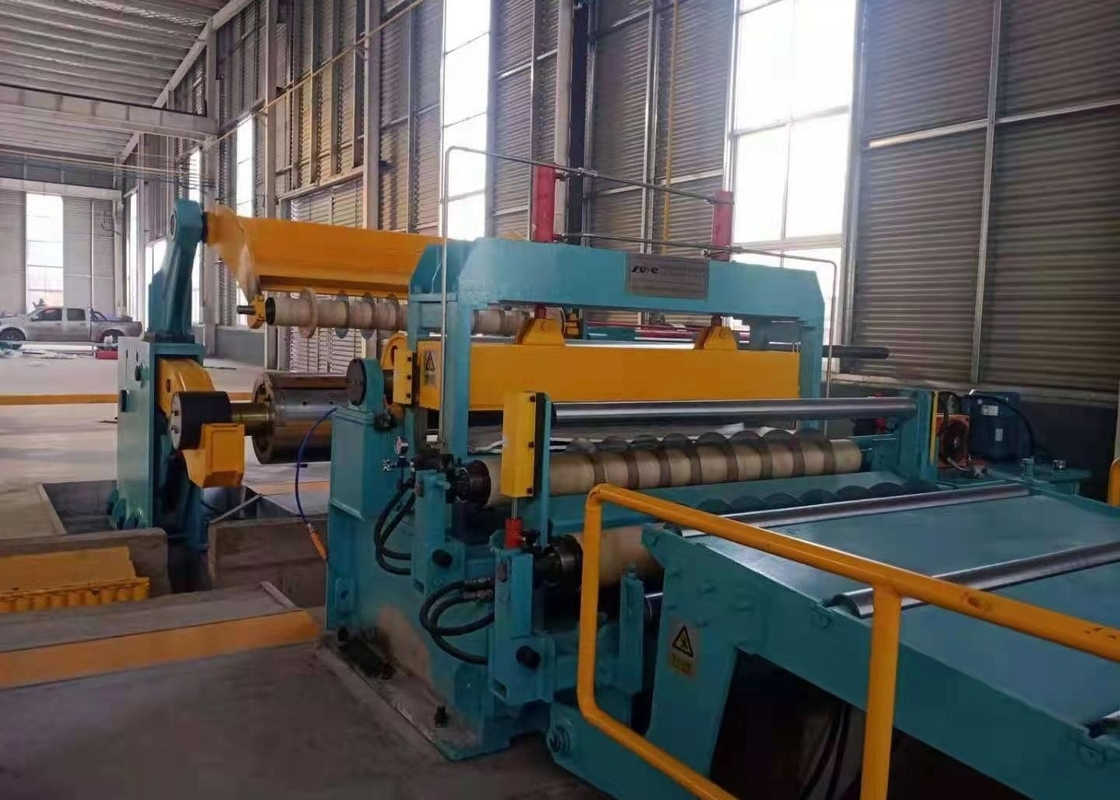

Zj1500 3.0mm Steel Slitting Machine for Galvanized Coils 1500m/Min

Name: Zj1500 3.0mm Steel Slitting Machine for Galvanized Coils 1500m/Min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ZJ1500 x 3.0mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	ZJ1500 x 3.0mm

Detail Information

Place of Origin:

Hebei，China

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

ZJ1500 x 3.0mm

Name:

Zj1500 X 3.0mm 1500m/Min Metal Steel Slitting Machine For Galvanized

Warranty:

1 Year

Voltage:

380V/220V

Weight:

Max20 Ton

DC Motors:

280KW, 315KW

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Coil Width:

500~1500mm

Thickness Range:

0.7-3mm

Highlight:

High Light

Highlight:

3.0mm metal coil slitting machine

1500m/min metal coil slitting machine

galvanized sheet steel slitting machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

40 Sets/Year

Product Description

Zj1500 X 3.0mm 1500m/Min Metal Steel Slitting Machine For Galvanized

Product Specifications

Attribute	Value
Name	Zj1500 X 3.0mm 1500m/Min Metal Steel Slitting Machine For Galvanized
Warranty	1 Year
Voltage	380V/220V
Weight	Max 20 Ton
DC motors	280KW, 315KW
After-sales Service	Engineers available to service machinery overseas
Coil Width	500~1500mm
Thickness Range	0.7-3mm

Technical Parameters

Material: Cold-rolled steel plate, galvanized sheet
Plate thickness: 0.7~3.0 mm
Plate width: 500~1500mm
Coil inner diameter: Φ508mm-Φ610mm
Coil outer diameter: ≤Φ1800mm
Coil maximum weight: 25000kg

Finished Product Specifications

Coil inner diameter: Φ508mm-Φ610mm
Coil outer diameter: ≤Φ1800mm
Winding maximum weight: 20000kg
Minimum width of strip: 22mm (plate thickness≤1)

Quality and After-sale Service Warranty

Our technical personnel will be on-site for equipment debugging, maintenance, and operation training. Under normal operating conditions, we provide a 12-month warranty from the date of equipment arrival. During this period, we will repair or replace any defective parts free of charge.

Note: The buyer is responsible for engineer costs during debugging (USD 80/day/person) including round-trip tickets and local expenses. If debugging is delayed due to buyer reasons, the cost increases to USD 100/day/person.

Technical Documentation Provided

Instruction Manual (provided one month before delivery)
Inspection Certificate (provided at delivery)
Loading Order (provided at delivery)
Layout Drawing (provided one month before delivery)
Ground Base Drawing (provided one month before delivery)
Electrical Principle Diagram
Overall Assembly Drawing of every unit
Part Diagram of Vulnerable Parts

Delivery and Payment Terms

Delivery Time: Equipment will be ready for shipment within two months after receiving 30% down payment. Delivery occurs after receiving the remaining 70%.

Payment Terms: 30% TT down payment after signing the contract, 70% TT before delivery.

Product Description

This slitting line machine consists of uncoiler, feeder, slitter and recoiler. It processes wide coils into specified width strips for milling, welding pipe, cold bend forming, and stamping applications. Different material blades can be used to slit various metal coils.

Main Technical Parameters

Parameter	Value
Material of coils	HR/CR carbon steel, galvanized plate, colored steel plate
Strip thickness	5~20 mm
Strip width	800~2000mm
Max.coil weight	40000kgs
Slitting speed	30-60 m/min (adjustable)

Production Process

Loading coil car → Uncoiler → Straightener device → Pinch roll & leveler & hydraulic shearer → Loop pit → Side guide → Slitter → Transition platform & scrap winder → Loop pit → Tension station → Recoiler → Unloading coil car.

Available Models

Model	Plate thickness	Plate width	Steel coil weight	Width of finished	Shear Speed
3*1250mm	0.5-3.0mm	700-1250mm	25 Ton	<40mm	120(m/min)
4*1250mm	0.5-4.0mm	700-1250mm	25 Ton	<40mm	120(m/min)
6*1250mm	0.5-6.0mm	700-1250mm	25 Ton	<40mm	120(m/min)
3*1600mm	0.5-3.0mm	900-1600mm	30 Ton	≥40mm	120(m/min)
4*1600mm	0.5-4.0mm	900-1600mm	30 Ton	≥60mm	110(m/min)
6*1600mm	1-6mm	900-1600mm	30 Ton	≥60mm	100(m/min)
8*2000mm	2-8mm	900-2000mm	35 Ton	≥70mm	60(m/min)
10*2200mm	3-10mm	900-2200mm	35 Ton	≥80mm	50(m/min)
12*2200mm	3-12mm	900-2200mm	35 Ton	≥100mm	40(m/min)
16*2500mm	4-16mm	900-2500mm	35 Ton	≥100mm	40(m/min)
20*2500mm	6-20mm	900-2500mm	35 Ton	≥100mm	30(m/min)

Note: These models are for reference only. We can customize machines according to your specific requirements with our engineering team.
