Product Details:
Payment & Shipping Terms:
|
| Mill Speed: | 1500m/min | Warranty: | 1 Year |
|---|---|---|---|
| Voltage: | 380V/220V | Weight: | Max20 Ton |
| DC Motors: | 280KW, 315KW | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Coil Width: | 500~1500mm | Thickness Range: | 0.7-3mm |
| High Light: | 3.0mm metal coil slitting machine,1500m/min metal coil slitting machine,galvanized sheet steel slitting machine |
||
I. The main technical parameters
1. the material
material Cold-rolled steel plate, galvanized sheet, etc
Plate thickness 0.7~ 3.0 mm
Plate width 500~1500mm
Coil inner diameter Φ508mm-Φ610mm
Coil maximum weight 25000kg
2． The finished product
Coil inner diameter Φ508mm-Φ610mm
Coil outer diameter ≤Φ1800mm
Winding maximum weight 20000kg
The minimum width of strip 22mm(plate thickness≤1)
Width accuracy
II. Quality and After-sale Service Warranty
Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
The debugging time is one month,within one month The buyer need pay for the engineer salary USD 80.00 one day one person,the supply the atrtickets for round trip,also need supply the local cost,like food rooms and transform.If due to the buyer reason,delay the debugging time,the buyer need pay for the engineer USD 100.00 one person one day.
III. Technical Document Provided
Instruction Manual of Pipe Mill(provided at the time of a month before delivery time)
Inspection Certificate (provided at the delivery time)
Loading Order (Provided at the delivery time)
Layout Drawing (provided at the time of a month before delivery time)
Ground Base Drawing (provided at the time of a month before delivery time)
Electrical Principle Diagram
Overall Assembly Drawing of every unit of the line
Part Diagram of Vulnerable Parts
IV. delivery time
The contracted equipment shall be ready for shipment in two month after the receipt of 30% down payment of the total contract value,and make delivery after got the 70% of the contract value.
VI. payment terms
30%TT down payment after sign the contract.
70% TT before delivery.

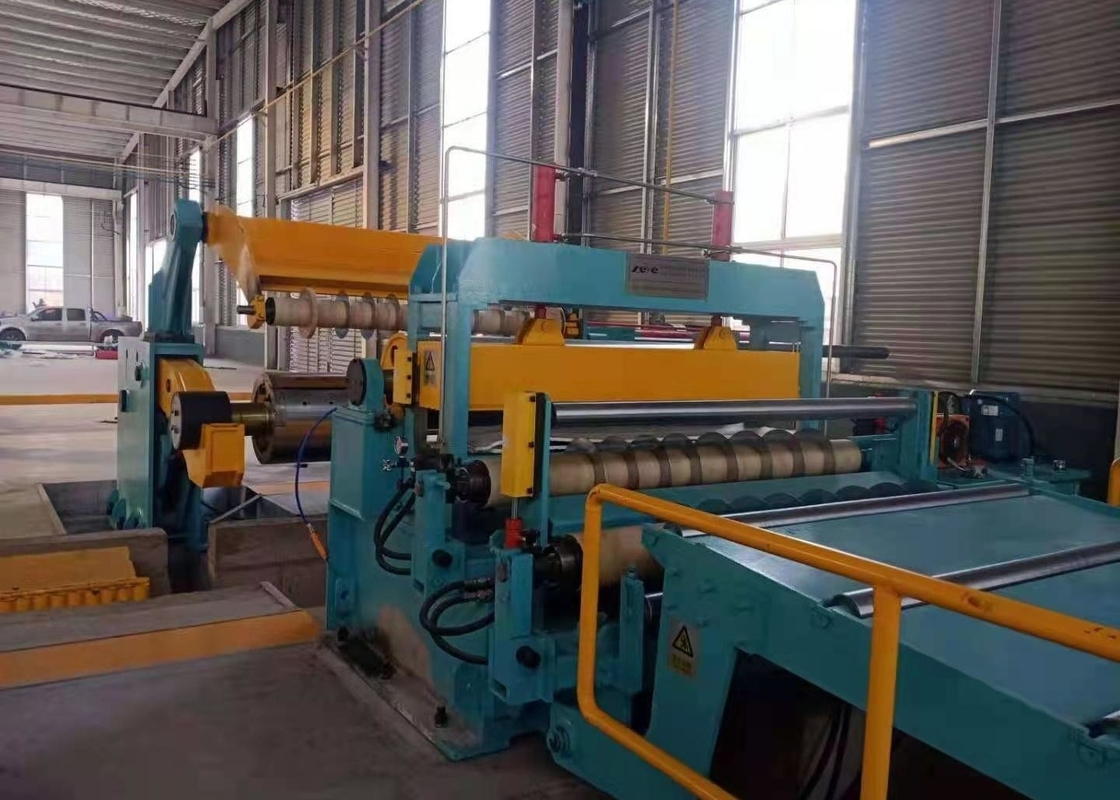

Slitting line machine mainly composed of uncoiler,feeder,slitter and recoiler.its function is to slit a wide coil to stated width strips coil along with the length direction which can be used for milling,welding pipe,cold bend forming,stamping as billet. At same time,changing different material blade can slit various metal coils.
Main technical parameter:
| Material of coils | HR/CR carbon steel such as Q235, galvanized plate, colored steel plate etc |
| Metal Coil Slitter Strip thickness | (5~20) mm |
| Strip width | 800~2000mm |
| Max.coil weight | 40000kgs |
| Diameter of leveling rollers & tensioning roller | Φ260 |
| Metal Coil Slitter Diameter of slitter shaft | Φ420 |
| Coil Slitting Machine Disc cutters | 6CrW2Si, HRC54°~56°, OD650mm x ID420mm x T50mm |
| Diameter of recoiler block | Φ800mm |
| Separating discs | 65Mn, OD250 x ID110 x T10/20mm |
| DC motors for slitter and recoiler | 280KW, 315KW |
| Coil Slitting Machine Slitting speed | (30-60) m/min, adjustable |
Product Process:

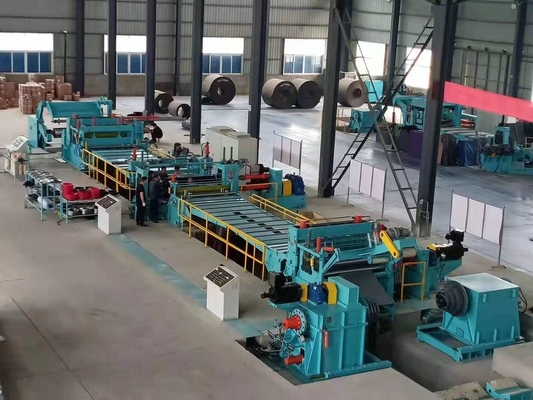

Loading coil car→Uncoiler→Straightener device→Pinch roll&leveler & hydraulic shearer →Loop pit →Side guide →Slitter →Transition platform & scrap winder →Loop pit →Tension station→Recoiler→Unloading coil car.
Model Of Slitting Line:
| Model | Plate thickness | Plate width | Steel coil weight | Width of finished | Shear Speed |
| 3*1250mm | 0.5-3.0mm | 700-1250mm | 25 Ton | <40mm | 120(m/min) |
| 4*1250mm | 0.5-4.0mm | 700-1250mm | 25 Ton | <40mm | 120(m/min) |
| 6*1250mm | 0.5-6.0mm | 700-1250mm | 25 Ton | <40mm | 120(m/min) |
| 3*1600mm | 0.5-3.0mm | 900-1600mm | 30 Ton | ≥40mm | 120(m/min) |
| 4*1600mm | 0.5-4.0mm | 900-1600mm | 30 Ton | ≥60mm | 110(m/min) |
| 6*1600mm | 1-6mm | 900-1600mm | 30 Ton | ≥60mm | 100(m/min) |
| 8*2000mm | 2-8mm | 900-2000mm | 35 Ton | ≥70mm | 60(m/min) |
| 10*2200mm | 3-10mm | 900-2200mm | 35 Ton | ≥80mm | 50(m/min) |
| 12*2200mm | 3-12mm | 900-2200mm | 35 Ton | ≥100mm | 40(m/min) |
| 16*2500mm | 4-16mm | 900-2500mm | 35 Ton | ≥100mm | 40(m/min) |
| 20*2500mm | 6-20mm | 900-2500mm | 35 Ton | ≥100mm | 30(m/min) |
This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require. Send inquiry here
