Fully Automatic Square ERW Pipe Mill 3-16mm Thickness

Name: Fully Automatic Square ERW Pipe Mill 3-16mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: F200x200
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	F200x200

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

F200x200

Product Name:

Fully Automatic Thickness 3-16mm Square Erw Pipe Mill

Steel Strip Width:

270-800mm（±0.2mm）

Square Tube:

80x80—200x200mm

Running Speed:

10-30m/min

Product Thickness:

3-16mm

Mode Of Production:

Full Automatic

Warranty:

One Year

Welding Type:

High Frequency Welding

Cutting Saw:

Milling Saw

Keywords:

Square Erw Pipe Mill

Highlight:

High Light

Highlight:

erw pipe mill fully automatic

precision industrial tube mills

square pipe erw welding machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Fully Automatic Thickness 3-16mm Square ERW Pipe Mill

Key Specifications

Attribute	Value
Steel Strip Width	270-800mm (±0.2mm)
Square Tube Size	80x80—200x200mm
Running Speed	10-30m/min
Product Thickness	3-16mm
Production Mode	Full Automatic
Warranty	One Year
Welding Type	High Frequency Welding
Cutting Saw	Milling Saw

Raw Material Specifications

Hot rolled or cold rolled steel strip (meets GB700-88, GB1591-88 standards)
Material: Low carbon steel, low alloy steel
Yield strength: σs ≤ 345Mpa
Tensile strength: σb ≤ 560 Mpa
Thickness: 3-16mm (GB708-88)
Steel strip width: 270-800mm (±0.2mm)
Steel coil inner diameter: Φ508-Φ760mm
Steel coil outer diameter: Φ1100-Φ2000mm
Maximum coil weight: 16TON

Production Process

Raw material (strip) → Loading car → Uncoiler → Cutting and Welding → Feeding → Storage material → Passive leveling → Forming rolling → High frequency welding → Weld burr removal → Cooling → Sizing → Coarse straightening → Length cut → Collection

Main Equipment Components

Loading Car

Coil OD: Φ1100-Φ2000mm
Coil ID: Φ508-Φ760mm
Width: 270-800mm
Running speed: 4 m/min
Transmission motor power: AC4KW (Double chain drive)
Max coil weight: 16T

Hydraulic Uncoiler

Single spindle hydraulic expansion type
Coil outer diameter: Φ1200-Φ2000mm
Main motor: AC7.5KW
Uncoil speed: 6m/min
Brake type: Pneumatic

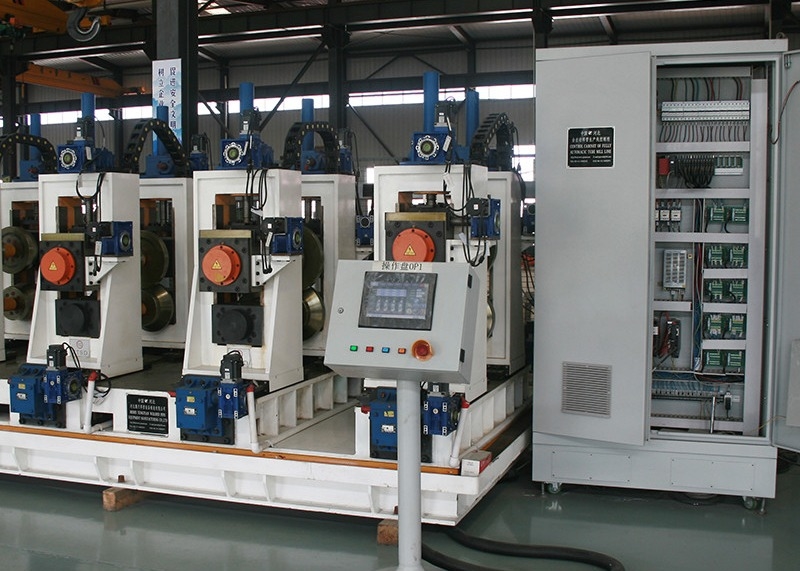

Forming and Sizing Mill

Forming: 12 stands
Sizing: 4 stands
Turkey head: 2 stands

Computer Milling Saw

Square pipe size: 80x80-200x200mm
Cut length: 4-12m
Cut accuracy: ≤2mm
Tracking speed: same as tube mill (10-30m/min)
Cutting motor: servo AC14kw
Control type: Siemens AC servo location

Automatic Packing Machine

Strapping speed: 23 seconds/cycle
Voltage: 380V/50HZ
Control voltage: DC24V
Power consumption: uncoil 1.5KW; head 1.5KW
Electrical control: PLC program control (Siemens)

Equipment Specifications

Power supply: 380V 50Hz 3 PHASE
Rollers material: Cr18-20
Welder: 1200kw solid welder
