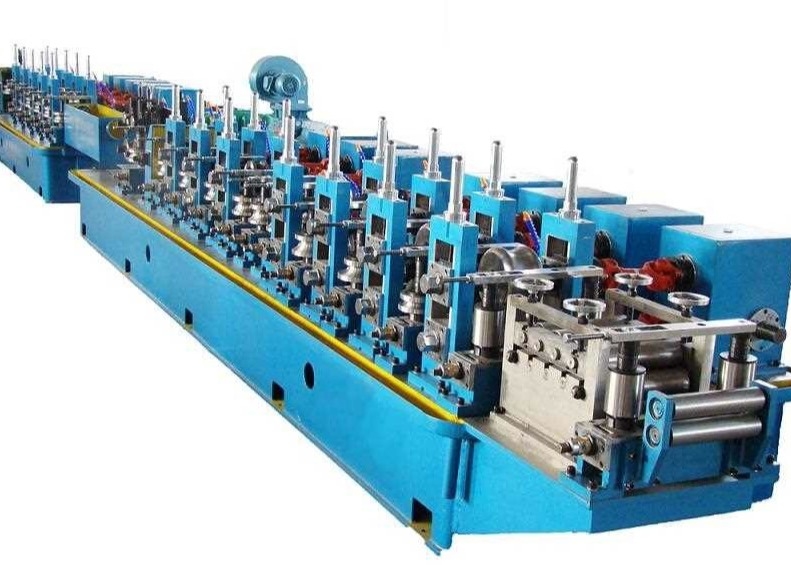

HFW Steel Pipe Production Line 30-80m/min High Frequency Welding

Name: HFW Steel Pipe Production Line 30-80m/min High Frequency Welding
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG17
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG17

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG17

Product Name:

Hfw Precision Tube Decorative 30m/Min Steel Pipe Production Line

Running Speed:

2mm

Strip Width:

45-55mm

Mechanical Properties:

σb≤520Mpa，σs≤365MPa

Coil Weight:

1.5T

Welding Type:

High Frequency Welding

Forming Speed:

30-80m/min

Keywords:

Steel Pipe Production Line

Highlight:

High Light

Highlight:

precision tube mill production line

hfw steel pipe production line

hfw welded pipe production line

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

HFW Precision Tube Decorative 30m/Min Steel Pipe Production Line

Product Specifications

Attribute	Value
Running Speed	2mm
Strip Width	45-55mm
Mechanical Properties	σb≤520Mpa，σs≤365MPa
Coil Weight	1.5T
Welding Type	High Frequency Welding
Forming Speed	30-80m/min

Product Description

The HG17 High-Frequency Welded Pipe Production Line is engineered to manufacture precision welded pipes with round pipe diameters of 14mm-17.3mm and wall thickness of 2mm, including deformed pipes of corresponding sizes. Utilizing advanced roll pass design, this production line delivers superior quality machining and high-precision assembly.

Key Features

Double-radius hole style design for improved operational characteristics and safety
Optimized roller design for reduced costs and guaranteed high efficiency
Superior quality machining and high precision assembly

Technical Specifications

Material Specifications:

Conforms to YB189-64 standard
Material: Low carbon steel and low alloy constructional steel
Mechanical properties: σb≤520Mpa, σs≤365MPa
Strip Width: 45-55mm
Strip Thickness: 2mm
Coil Dimensions: Inner φ480-520mm, Outer φ1000-1800mm
Coil Weight: ≤1.5T

Welded Pipe Specifications:

Round pipe: 14mm-17.3mm (2mm thickness)
Fixed Cutting length: 4-12m
Pipe-cutting Precision: 0-3mm
Forming Speed: 30-80m/min

Power, Water & Air Supply

Item	Specification
Power Source	380V/50Hz/3phases
Circulation Cooling Water	Flow: 15-20 T/h, Pool Volume: 20m³
Compressed Air	Flow: 5m³/min, Pressure: 3-5kg/cm²

Production Process Flow

Coil Loading → Uncoiling → Cutting and Welding → Horizontal Spiral Accumulator → Forming, HF welding, Deburring, Cooling, Sizing, Straightening → STD Cold-cutting saw → Transmitting → Packing → Storage

Machine Components & Specifications

1. Uncoiler

Double expansion and cantilever mandrels structure
Pneumatic system for expanding, contracting and braking
Two mandrels with four-bar linkage mechanism
Coil Dimensions: OD Φ1000-2000mm, ID Φ480-520mm
Strip Width: 14-17.3mm, Thickness: 2mm
Max Weight: 1.5T
Expansion Type: Hydraulic, Brake: Pneumatic

2. Automatic Shear and Welder

Strip width: 14-17.3mm
Welding thickness: 2mm
Cutting Type: automatic shear
Welding Model: automatic welding
Hydraulic pressure: 12MPa
Working Cycle: Max.4M

3. Spiral Accumulator

Working style: change circle diameter: 2.5M
Steel coil thickness: 2mm; width: 40-54mm
Carry material velocity: Vmax=200m/min
Hydraulic oil pressure: 7Mpa
Electric motor power: Press & carry: 7.5KW, Accumulator frame: 15KW

4. Forming & Sizing Mill

Forming Pipe OD: Round pipe 14mm-17.3mm
Wall Thickness: 2mm
Forming speed: 30-80m/min
Forming stands: 8 horizontal, 11 vertical
Sizing stands: 5 horizontal, 5 vertical
Turks Head: 2 sets
Main motor: 75kW (2 Sets)

5. Cold Saw

Drive motor: 11KW servo motor (Japan Yaskawa)
Cutting motor: 7.5KW variable frequency (Siemens)
Feed motor: servo motor 2.2 KW (Japan Yaskawa)

6. Roll Table, Bench & Packing Machine

Motor of Roll Bench: 3KW
Pneumatically driven alignment equipment
Automatic pipe packing in hexagon shape

7. 150KW High Frequency Solid-state Welder

Parameter	Specification
Output power	Pout＞150kW
Frequency	400-450KHZ
Nominal power	150kW
Power supply	3-phase 380V/50Hz

Main Components List

S/N	Description	Specification	Manufacturer
1	Boards	Self-making	Mingshuo
2	SCR	KP800A/1400V water-cooled	Jinzhou Huajing
3	Diode	KP800A/1400V water-cooled	Jinzhou Huajing
4	Filter capacitor	4700μF/450V	Japan HITACHI
5	MOSFET	IXFN38N100 38A/1000V	Germany IXYS

8. Roller

Material: Cr12 high strength, good wear resistance
