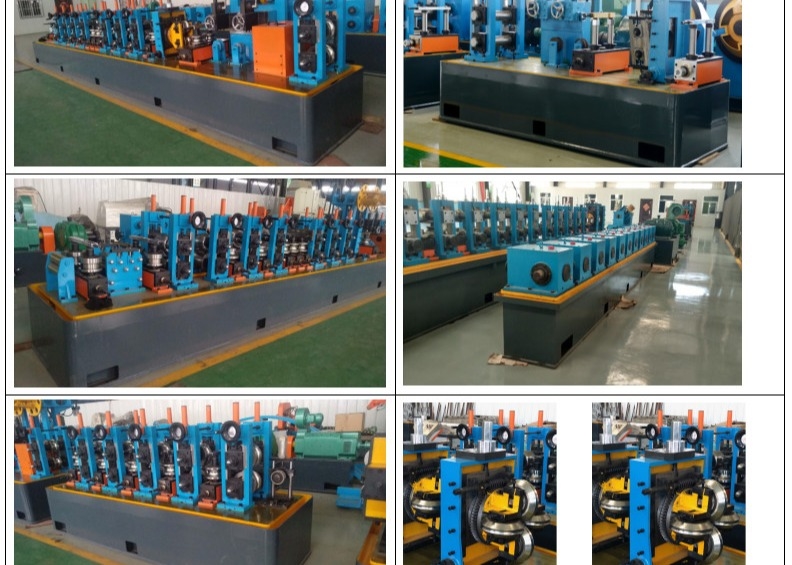

Precision ERW Pipe Mill Production Line 16-50mm Diameter

The HG50 High-Frequency Welded Pipe Mill Line is designed to produce welded pipes of Ф16～50mm in diameter with wall thickness of 1.0～3.0mm, including square, rectangular, and deformed pipes of corresponding sizes. Utilizing advanced roll pass design, this production line manufactures welded steel pipes with superior machining quality and high precision assembly.

• Enhanced operational and production performance
• Improved operational environment and safety
• Increased product stability
• Higher productivity
• Reduced roll costs

The HG50 production line employs a double-radius hole design to ensure high efficiency while maintaining cost-effectiveness.

Conforming to YB189-64 standard:

• Material: Low carbon steel and low alloy constructional steel
• Mechanical properties: σb≤520Mpa, σs≤340MPa
• Strip Width: 56～160mm
• Strip Thickness: 1.0～3.0mm
• Steel strip coil: Inner Diameter φ480～φ520mm, Outer Diameter φ1000～φ1800mm
• Coil Weight: ≤2T

• Round Pipe Diameter: φ16～φ50mm
• Wall Thickness: 1.0～3.0mm
• Fixed Cutting Length: 4～12m
• Pipe-cutting Precision: 0～3mm
• Forming Speed: 20～100m/min

• Power: Approx. 600KW, 380V/50Hz/3phases
• Circulation Cooling Water: Flow 30T/h～40T/h, Pool Volume 60m³
• Compressed Air: Flow 5m³/min, Pressure 5～7kg/cm²

Workshop requirements: 8m wide, 100m long, minimum 5m ceiling height.

Double expansion cantilever mandrel structure with pneumatic system for expanding, contracting and braking.

For cutting irregular tape ends and welding coil ends for continuous feeding.

The vital equipment for pipe production using roll frame theory for continuous processing.

• Nominal power: 200kW
• Rated dc power: 200kW
• Design frequency: 200KHz±50KHZ
• MOSFET inverter: 120kW×6
• Distribution capacity: ≥800kVA

• Shipment within 4 months after receipt of down payment
• 30% down payment by T/T within 15 days after contract signing
• 70% balance before shipment by L/C

12-month warranty from equipment arrival date. Includes:

• Pre-shipment equipment photos
• Online remote guidance for installation
• Optional on-site engineer support (conditions apply)
• Technical training for operation and maintenance

• Instruction Manual
• Inspection Certificate
• Loading Order
• Layout and Ground Base Drawings
• Electrical Diagrams
• Assembly and Part Drawings
