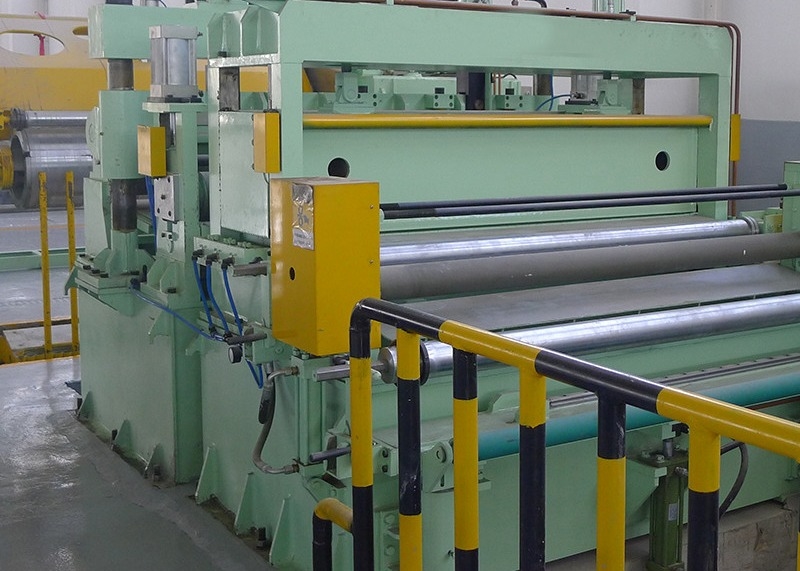

ZTL-4x1600 Steel Slitting Machine 0.8-4mm Coil Thickness 90-150m/min

Name: ZTL-4x1600 Steel Slitting Machine 0.8-4mm Coil Thickness 90-150m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: ZTL-4X1600
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	ZTL-4X1600

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

ZTL-4X1600

Name:

Ztl-4x1600 Coils Open Speed 90-150m/Min Steel Slitting Machine

Coil Thickness:

0.8～4mm

Coil Width:

800-1600mm

Inner Diameter:

Φ508/Φ610/Φ760mm

Outer Diameter:

≤Φ2200mm

Slitter Speed:

90-150m/min

Warranty:

One Year

Material:

Low Carbon HRC

Highlight:

High Light

Highlight:

150m/min steel slitting machine

90m/min steel slitting machine

30t coil slitting machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

ZTL-4x1600 Coils Open Speed 90-150m/Min Steel Slitting Machine

Key Specifications

Attribute	Value
Coil Thickness	0.8～4mm
Coil Width	800-1600mm
Inner Diameter	Φ508/Φ610/Φ760mm
Outer Diameter	≤Φ2200mm
Slitter Speed	90-150m/min
Warranty	One year
Material	Low carbon HRC

Technical Parameters

Material: Low carbon HRC (Q235, σs=250Mpa, σb=500Mpa)
Coil Weight: ≤30t
Width Precision: ±0.20mm (thickness 0.8-4)
Burr Accuracy: ≤5% plate thickness (0.08-0.20mm)
Power: 380V, 60HZ, Approx. 330kw
Air Power: Pressure 0.4-0.8Mpa, Air demand 0.2m³/min
Line Direction: Left to Right (facing operation console)

Equipment Composition

1. Coil Storage Rack

V-shaped structure, steel plate welding
Loading weight: 30t
Store coil width: 800-1600mm

2. Coil Car

V-shaped bracket with nylon plate surface
Motor: AC4KW
Lifting oil cylinder: Ø200X850st
Guide bars: 4, Ø110mm diameter, chrome plated

3. Uncoiler

Double support type with expansion drum
Drum reducer motor: AC4kw
Disc damped brake: 2 sets
Main materials: 40Cr (quenched and tempered)

4. Slitter Machine (Double Knives Base Type)

Knife shaft specifications: 250 x1750mm Ø, 42CrMo with hard chromium plating
Main motor: AC110kw, 1000rpm
Adjustable motor: 2 sets
Disc brake: 1 set

5. Recoiler

Drum round: Ø508mm (Have seam type)
Coil weight: 30T
Recoiler power: YVP132kw, 1000rpm
Expansion cylinder: Ø180X100mm, 1pc

Additional Components

Cutting tool, spacer, rubber ring, separator disc and spacer sleeve (with 10 cutting strips)
Hydraulic system with centralized pump station
PLC logic control
