High Frequency Welded Steel Pipe Machine 12-60mm CNC Tube Mill

Name: High Frequency Welded Steel Pipe Machine 12-60mm CNC Tube Mill
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: SS60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	SS60

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

SS60

Yield Strength Of Raw Material:

σs≤235Mpa

Tensile Strength Of Raw Material:

σb≤500 Mpa

Pipe Size Range:

φ12-φ60mm

Thickness:

0.4-1.8mm

Max. Production Speed:

20-120m/min

Fixed Cutting Length:

6-8m

Warranty:

One Year

Welding Type:

High Frequency Welding

Highlight:

High Light

Highlight:

High Frequency Welded steel pipe making machine

12mm steel pipe making machine

12mm steel pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

High Frequency Welded Steel Pipe Making Machine CNC 12mm MS Tube Mill Machine

Key Specifications

Attribute	Value
Yield strength of raw material	σs≤235Mpa
Tensile strength of raw material	σb≤500 Mpa
Pipe size range	φ12-φ60mm
Thickness	0.4-1.8mm
Max. Production Speed	20-120m/min
Fixed Cutting length	6-8m
Warranty	One year
Welding Type	High Frequency Welding

Product Description

This high-frequency welded pipe production line is designed for manufacturing electric welded carbon steel pipes with diameters ranging from Φ12-Φ60mm and wall thicknesses of 0.4-1.8mm. The equipment features high precision and excellent stability, with main components processed by CNC machining centers to ensure superior machine accuracy and product quality.

Material Specifications

Material

Carbon steel

Mechanical properties

δs≤500Mpa δb≤235Mpa

Strip Width

36-190mm

Strip Thickness

0.4-1.8mm

Inner Diameter of Coils

Φ460-Φ520mm

Outer Diameter of Coils

Φ1200-Φ1800mm

Coil Weight

2.5T

Pipe Specifications

Pipe Diameter

Round pipe: φ12-φ60mm

Thickness

0.4-1.8mm

Length

6-8m

Pipe-cutting Precision

±1.5mm

Forming Speed

20-120m/min

System Components

Uncoiler

Features double expansion and cantilever mandrels with pneumatic system for expanding, contracting, and braking functions.

Specification	Value
OD of coil	Φ1000-1800mm
ID of coil	Φ460-520mm
Thickness of strip	0.4-1.8mm
Width of strip	36-190mm
Weight of single strip	Max 2.5T
Expansion Type	Hydraulic expand
Break	Pneumatic driving

Automatic Shear and Welder

Used for cutting irregular tape ends and welding coil ends together for continuous feeding.

Specification	Value
Strip width	36-190mm
Welding thickness	0.4-1.8mm
Cutting Type	Pneumatic
Welding Mode	Automatic
Hydraulic pressure	8MPa
Working Cycle	Max. 300 seconds

Vertical Accumulator

Ensures continuous production by storing strip steel during coil changeovers.

Specification	Value
Working style	Change circle
Carry material going velocity	Vmax=240m/min
Advantage	More material, No strike
Pinch form	Pneumatic, 6Mpa
Diameter of accumulator	4.0 M
Electric motor power of the press & carry	15KW
The electric motor of the accumulator frame	22KW

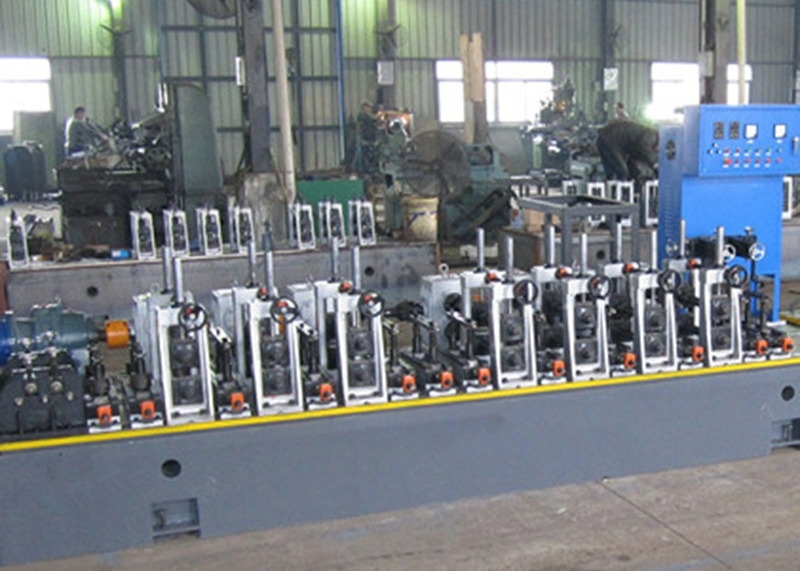

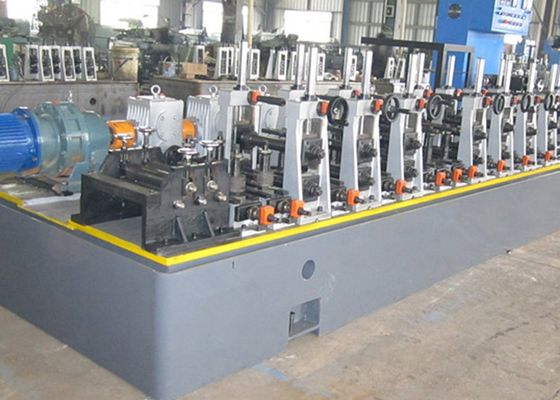

Forming & Sizing Unit

Complete system for shaping, welding, polishing, annealing, and sizing pipes to final specifications.

Component	Specification
Forming Pipe OD	Round: Φ12-60mm
Forming Pipe Wall Thickness	0.4-1.8mm
Forming speed	Max. 120m/min
Number of forming stands, horizontal	8
Number of forming stands, vertical	9
Guide Roll Stand	1
Squeeze Roll Stand	1
Ironing stand	1
Polishing	4 Sets
Annealing	15M
No. of sizing stands, horizontal	6
Number of sizing stands, vertical	6
Turks Head	2 sets
Shaft dia. and material of horizontal roll stand	Φ60mm, Material 40Cr
Shaft dia. and Material of vertical roll stand	Φ35mm, Material 40Cr
Main motor	90kw+45kw+45kw

Punching and Shearing Machine

Specification	Value
Cutting length range	6-8 meters
Maximum linear speed	120m/min
Cutting length accuracy	±1.5mm
Driving motor	15KW servo
Cut-off mode	Hydraulic
Hydraulic station motor	11KW AC motor

Transit Roller

Transports finished pipes for packing and palletizing.

Specification	Value
Motor	3kw
Length	18m

Roller

Material: Cr12moV

Buyer Requirements

Work shop

80x6m, H＞5m (crane to ground)

Power

Approx. 450KW 380V/50Hz/3phases

Circulation Cooling Water

Flow: 20T/h～30 T/h
Pool Volume: 40m³

Compressed Air

Flow: 5m³/min 5-7kg/cm²
