CNC High Frequency Welded Pipe Mill Line SS 60 Model

Name: CNC High Frequency Welded Pipe Mill Line SS 60 Model
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: SS 60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	SS 60

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

SS 60

Production Name:

High Frequency Welded Pipe Mill Line Control By CNC Steel Pipe Making Machine

Model:

SS 60

Feature:

High Precision And Good Stability

Max Size:

1.8 X 60 Mm

Thickness:

0.4 - 1.8 Mm

Length:

6 - 8 M

Warranty:

One Year

Key Words:

High Frequency Welded Pipe Mill Line Control By CNC Steel Pipe Making Machine

Highlight:

High Light

Highlight:

CNC welded pipe mill line

high frequency SS pipe machine

60 model steel pipe welder

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

120 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

4 set/year

Product Description

High Frequency Welded Pipe Mill Line Control By CNC Steel Pipe Making Machine

Product Specifications

Attribute	Value
Model	SS 60
Feature	High precision and good stability
Max Size	1.8 X 60 mm
Thickness	0.4 - 1.8 mm
Length	6 - 8 m
Warranty	One year

Product Overview

This high-frequency welded pipe production line is designed for manufacturing electric welded stainless steel pipes with diameters of Φ12-Φ60mm and wall thicknesses of 0.4-1.8mm. The equipment features CNC machining center processed components to ensure exceptional precision and stability throughout the production process.

Technical Specifications

Material Specifications
Material	Carbon Steel
Mechanical Properties	δs≤500Mpa δb≤235Mpa
Strip Width	36-190mm
Strip Thickness	0.4-1.8mm
Coil Dimensions	Inner: Φ460-Φ520mm Outer: Φ1200-Φ1800mm
Coil Weight	2.5T
Pipe Specifications
Pipe Diameter	Round pipe: φ12-φ60mm
Thickness	0.4-1.8mm
Length	6-8m
Pipe-cutting Precision	±1.5mm
Forming Speed	20-120m/min

Buyer Requirements

Workshop: 80x6m, H＞5m (with crane to ground)
Power: Approximately 450KW 380V/50Hz/3phases
Circulation Cooling Water (whole system): Flow:20T/h～30 T/h, Pool Volume:40m³
Compressed Air: Flow:5m³/min, 5-7kg/cm²

Included Documentation

Instruction Manual (provided one month before delivery)
Inspection Certificate (provided at delivery)
Loading Order (provided at delivery)
Layout Drawing (provided one month before delivery)
Ground Base Drawing (provided one month before delivery)
Electrical Principle Diagram
Overall Assembly Drawing of every unit of the line
Part Diagram of Vulnerable Parts

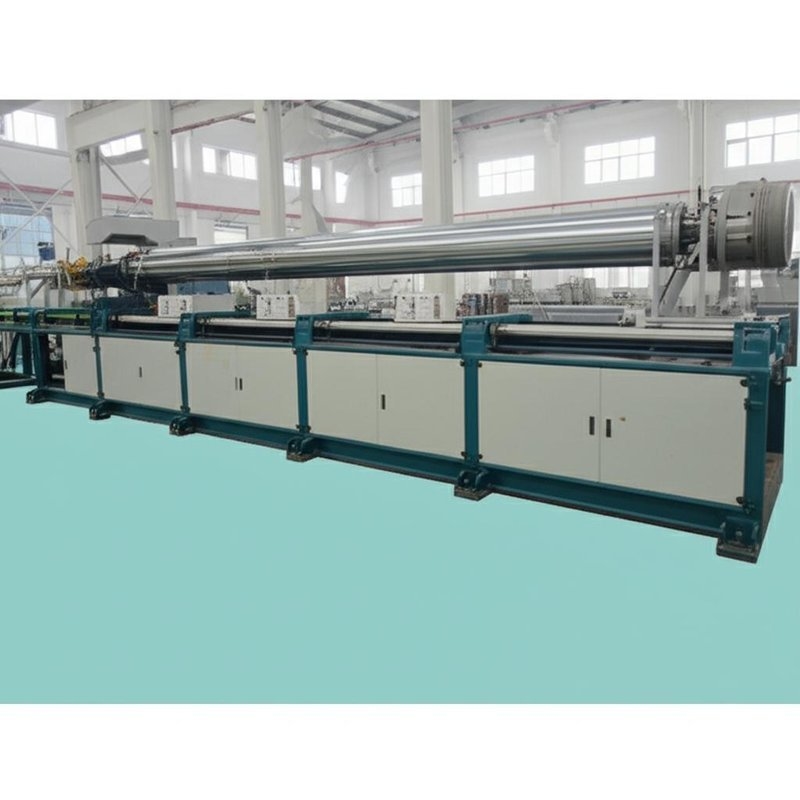

Product Images
