Steel Tube Making Machine 12-76mm High Frequency Welding 6m/min

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	I50

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

I50

Uncoiler:

Single-Way Uncoiler

Steel Strip Can Load:

Pipe Size Range:

φ12-φ76mm

Thickness:

0.5-2mm

Max. Production Speed:

0-6m/min

Fixed Cutting Length:

6-8m

Warranty:

One Year

Welding Type:

High Frequency Welding

Highlight:

High Light

Highlight:

cnc steel tube making machine

powerful steel tube making machine

powerful steel pipe manufacturing machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Powerful CNC Machining Center Steel Tube Making Machine 6m/Min

Key Specifications

Attribute	Value
Uncoiler	Single-Way uncoiler
Steel Strip Capacity	3T
Pipe Size Range	φ12-φ76mm
Thickness	0.5-2mm
Max. Production Speed	0-6m/min
Fixed Cutting Length	6-8m
Warranty	One year
Welding Type	High Frequency Welding

Package Contents

Model	Unit	Qty	Specifications

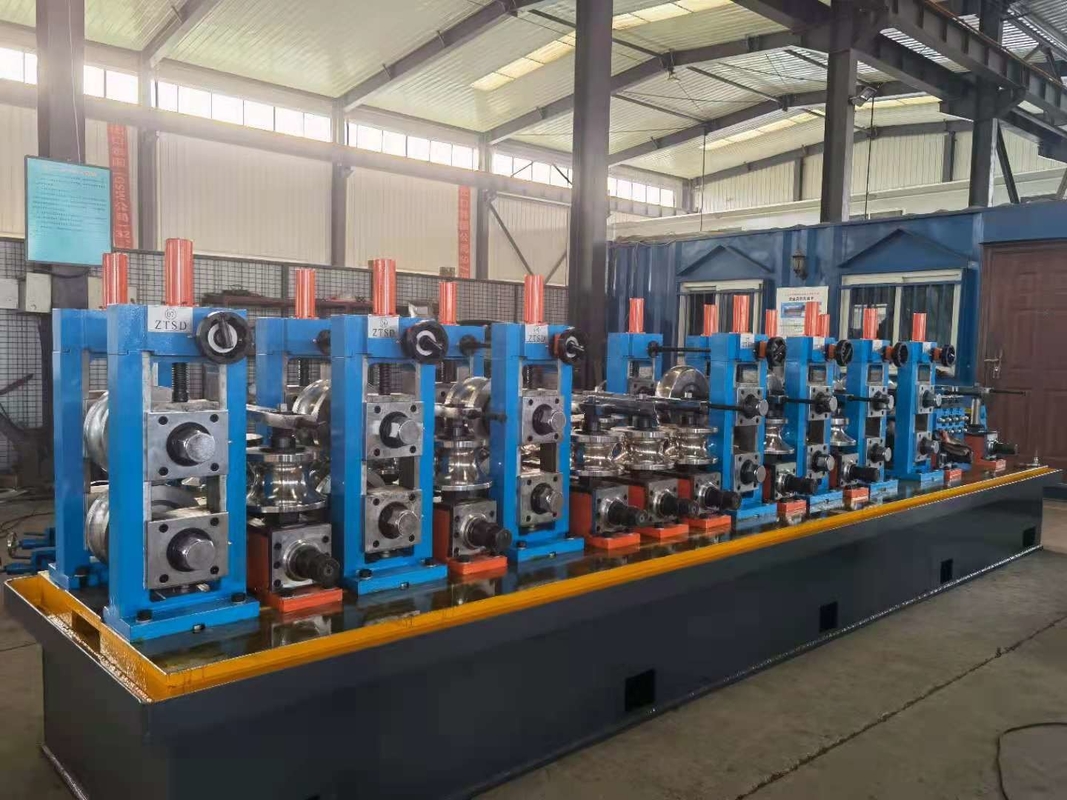

TTSS-I50 Tube Making Machine	set	1	Diameter: Ф12-76mm Thickness: 0.5-2.0mm Speed: 0-6m/min Double Drive Motor: Siemens Main motor: Front 11kw, Rear 7.5kw Inverter: DaYuan Brand MCB: Schneider brand Automatic grinding system Metal Saw Cutting Stronger holder
Argon Welder	set	1	Capacity: Below 2.0mm 500A
Ф12.7mm Roll Sets	set	1	Material: Cr12MoV 54pcs
Ф19.05mm Roll Sets	set	1	Material: Cr12MoV 54pcs
Ф25.4mm Roll Sets	set	1	Material: Cr12MoV 54pcs
Ф32mm Roll Sets	set	1	Material: Cr12MoV 54pcs
Ф38.1mm Roll Sets	set	1	Material: Cr12MoV 54pcs
Ф50.8mm Roll Sets	set	1	Material: Cr12MoV 54pcs
Ф62mm Roll Sets	set	1	Material: Cr12MoV 54pcs
Ф76mm Roll Sets	set	1	Material: Cr12MoV 54pcs

Machine Components

Uncoiler

Single-Way uncoiler
Steel Strip capacity: 3T
Manual expansion mandrel
Max coil width: 250mm
Max coil OD: 1,800mm
Coil ID: 350-510mm

Forming Unit

Guidance holder: 1 set
Horizontal stands: 7 sets (Material: HT200)
Vertical stands: 7 sets (Material: HT200)
Horizontal shaft O.D.: Ф50mm
Vertical shaft O.D.: Ф30mm
Fixed ratio reduction box: 1 set
Machine bed: 1 set
Universal drive shaft connecting system: 1 set
Siemens Drive motor: 1 set
Vertical shaft clamp roll: 5 pcs

Welding System

Vertical stands: 2 sets (Material: HT200)
TIG welding: 1 set
Welding thickness below 2.0mm

Automatic Outside Grinding System

Grinding heads: 3 sets (2 linear perspective, 1 bevel perspective)
Grinding motors: 3 sets
Machine bed: 1 set
Vertical stands: 2 sets
Cooling system: 1 set
Water cycle pipe: 1 set

Sizing and Straightening Section

Horizontal stands: 4 sets (Material: HT200)
Vertical stands: 4 sets (Material: HT200)
Turks head: 1 set (Shaft O.D.: 30mm)

Drive System

Fixed ratio reduction box drive system: 1 set
Machine bed: 1 set
Universal drive shaft connecting system: 1 set
Siemens Drive motor: 1 set

Cutting System

Automatic set feed and circular saw cut off system: 1 set
Control system: 1 set
Circular saw cutting head: 1 set
Cutting barrow: 1 set
Box cutting unit: 1 set
Machine bed: 1 set
Pipe counter: 1 set

Run Out Table

Automatic run out table: 1 set
Cylinder: 1 pc
Formation switch: 1 pc

Electrical Control System

Electrical control system for the pipe machine: 1 set
Stop button

Technical Parameters for Roll Molds

Material: Cr12MoV
Rigidity: ≥HRC60-63
CNC processed
Manufacturing Process:
- Forge
- Saw
- Regular machine process
- Drill
- CNC
- Grinding
- Quench
- Inside and outside grinding process
