High Frequency Welded Pipe Mill 5 Inch HRC BV Passed
High Frequency Welded Pipe Mill 5 Inch HRC BV Passed
  • High Frequency Welded Pipe Mill 5 Inch HRC BV Passed
  • High Frequency Welded Pipe Mill 5 Inch HRC BV Passed

High Frequency Welded Pipe Mill 5 Inch HRC BV Passed

Product Details:
Place of Origin: Hebei
Brand Name: TengTian
Certification: CE, ISO9001, BV
Model Number: HG 2.5”
Detail Information
Place of Origin:
Hebei
Brand Name:
TengTian
Certification:
CE, ISO9001, BV
Model Number:
HG 2.5”
Product Name:
High Frequency Welded Pipe Mill Bv Passed Hrc 5"
Coil Inner Diameter:
Φ480-610mm
Strip Width:
200-400mm
Strip Thickness:
1-5mm
Strip Weight:
Max 10T
Include:
Uncoiler,straight Head And Pinch Leveling Machine ,shear And Welder, Spiral Accumulator
Warranty:
One Year
Material:
Low Carbon HRC
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

5" high frequency welded pipe mill

,

hrc high frequency welded pipe mill

,

5" high frequency welded tube mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
60 work days
Payment Terms:
L/C,T/T
Supply Ability:
50 Sets/Year
Product Description
High Frequency Welded Pipe Mill BV Passed HRC 5"
Product Specifications
Attribute Value
Coil Inner Diameter Φ480-610mm
Strip Width 200-400mm
Strip Thickness 1-5mm
Strip Weight Max 10T
Included Components Uncoiler, Straight Head and Pinch Leveling Machine, Shear and Welder, Spiral Accumulator
Warranty One Year
Material Low Carbon HRC
Technical Specifications

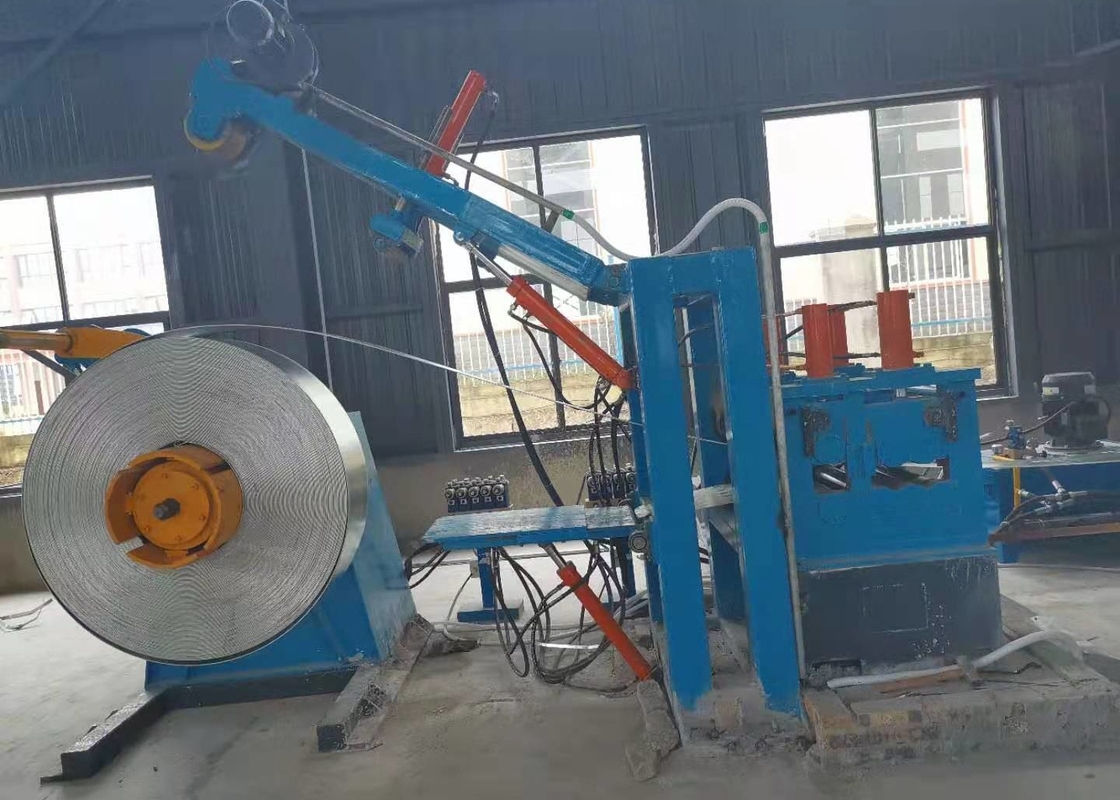

Double Cone Hydraulic Uncoiler

Features pneumatic system for expanding, contracting and braking of mandrels with hydraulic expanding and pneumatic driving.

Coil Out Diameter Φ2000-2200mm
Coil Inner Diameter Φ480-610mm
Strip Width 200-400mm
Strip Thickness 1-5mm
Strip Weight Max 10.0T
Expand Type Hydraulic expand, sliding block structure
Brake Pneumatic drive, 2 pcs disc brake
Straight Head and Pinch Leveling Machine

Leads new coil steel head feed into the flattener unit with 2 roll pinch and 5 roll leveling system.

  • Straight head motor power: AC 1.5KW
  • Processing pressure: 7Mpa
  • Pinch roll diameter: Ф180mm
  • Leveling roll diameter: Ф120mm
  • Pinch and leveling motor: 15KW
Hydraulic Shear and Manual Welder

Used to cut irregular strip ends and connect strips by welding.

Shear Width 200-400mm
Welding Thickness 1-5mm
Shear Type Hydraulic shear
Compression Way Hydraulic
Welding Type Auto
Blade Material H13
Hydraulic Pressure 10MPA
Air Pressure 0.5MPa
Working Cycle Max. 300s
Spiral Accumulator

Includes press & carry material device, accumulator assembly, carry off material unit, and electric control unit.

  • Working style: Fixed circle
  • Diameter: 5.0M
  • Advantage: Stores more material with no surface damage to strip steel
  • Steel coil thickness: 1-5mm
  • Width: 200-400mm
  • Carry material velocity: Vmax=120m/min
  • Direct electric motor power: 30KW
  • Accumulator frame motor: 55KW
High Frequency Welded Pipe Mill 5 Inch HRC BV Passed 0
High Frequency Welded Pipe Mill 5 Inch HRC BV Passed 1
