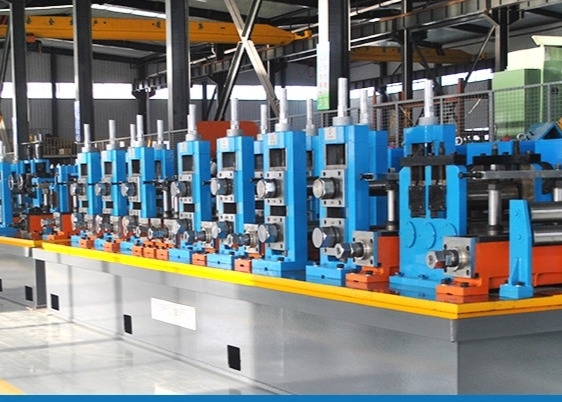

High Frequency Welded Pipe Mill for 20-60mm Pipes 90m/min

Name: High Frequency Welded Pipe Mill for 20-60mm Pipes 90m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	HG60

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

HG60

Product Name:

High Frequency Welded Pipe Mill Ff Ffx Forming Style Cold Roll

Coil Thickness:

1.0-3.5mm

Coil Width:

60-190mm

Inner Diameter:

φ480～φ520mm

Outer Diameter:

φ1000～φ1800mm

Speed:

Max 90m/min

Warranty:

One Year

Material:

Low Carbon HRC

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

60mm high frequency welded pipe mill

ff high frequency welded pipe mill

60mm high frequency welded tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

90 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

High Frequency Welded Pipe Mill FF FFX Forming Style Cold Roll

Product Specifications

Attribute	Value
Coil Thickness	1.0-3.5mm
Coil Width	60-190mm
Inner Diameter	φ480～φ520mm
Outer Diameter	φ1000～φ1800mm
Speed	Max 90m/min
Warranty	One year
Material	Low carbon HRC

Product Description

The HG60 production line features a double-radius hole design, optimized for improved operational characteristics, safety, and production efficiency while reducing roller costs.

Material Specifications

Conforming to YB189-64 standard:

Material: Low carbon steel and low alloy constructional steel
Mechanical properties: σb≤520Mpa, σs≤365MPa
Strip Width: 60-190mm
Strip Thickness: 1.0-3.5mm
Inner Diameter of Coils: φ480～φ520mm
Outer Diameter of Coils: φ1000～φ1800mm
Coil Weight: ≤2.5T

Welded Pipe Specifications

Round pipe φ20-φ60mm, thickness 1.0-3.5mm
Fixed Cutting length: 4-9m
Pipe-cutting Precision: 0-3mm
Forming Speed: 90m/min

Power, Water & Air Supply

Item	Specification
Power Volume	Approx. 200KW (380V/50Hz/3phases)
Circulation Cooling Water	Flow: 15T/h～20 T/h, Pool Volume: 20m³
Compressed Air	Flow: 5m³/min, Pressure: 3～5kg/cm²

Workshop requirements: 6m wide, 80m long, at least 5m high from Ceiling Rails to Ground.

Production Process

Coil Loading → Uncoiling → Cutting and Welding → Horizontal Spiral Accumulator → Forming, HF welding, Deburring, Cooling, Sizing, Straightening → STD Cold-cutting saw → Transmitting → Packing → Storage

Key Components

Uncoiler:

Double expansion and cantilever mandrels structure
Pneumatic system for expanding, contracting and braking
Two mandrels with four-bar linkages for radial movement
OD of coil: Φ1000-1800mm
ID of coil: Φ480-520mm
Expansion Type: Mechanically expand
Break: Pneumatic driving

Automatic Shear and Welder:

Strip width: 60-190mm
Welding thickness: 1.0-3.5mm
Cutting Type: automatic shear
Welding Model: automatic welding
Pneumatic pressure: 0.5MPa
Working Cycle: Max. 300 seconds

Forming & Sizing Mill:

Forming Pipe OD: Round pipe φ20-φ60mm
Wall Thickness: 1.0-3.5mm
Forming speed: 90m/min
7 horizontal and 8 vertical forming stands
5 horizontal and 5 vertical sizing stands
Main motor: 75kw+90kw

200KW High Frequency Solid-state Welder:

Output power: Pout＞200kW
Frequency: 400~450KHZ
Nominal power: 100kW
Power supply: 3-phase 380V/50Hz
Line-in current: 220A
MOSFET inverter: 60kW×2
