High Frequency Welded Pipe Mill φ114 PLC Automatic Control System

Name: High Frequency Welded Pipe Mill φ114 PLC Automatic Control System
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG114
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE, ISO9001, BV
Model Number:	HG114

Detail Information

Place of Origin:

Hebei

Brand Name:

Tengtian

Certification:

CE, ISO9001, BV

Model Number:

HG114

Product Name:

High Frequency Welded Pipe Mill φ114 High Frequency Welding Tube Mill Plc Automatic Control System

Tensile Strength Of Raw Material:

σb≤500 Mpa

Thickness:

0.8-4.0mm

Max. Production Speed:

20～70m/min

Fixed Cutting Length:

6-12m

Pipe Size Range:

Φ20～Φ114mm

Warranty:

One Year

Welding Type:

High Frequency Welding

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

114 high frequency welding tube mill

plc high frequency welding tube mill

plc high frequency welded pipe mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

φ114 High Frequency Welding Tube Mill PLC Automatic Control System

Attribute	Value
Product name	High Frequency Welded Pipe Mill φ114 High Frequency Welding Tube Mill Plc Automatic Control System
Tensile strength of raw material	σb≤500 Mpa
Thickness	0.8-4.0mm
Max. Production Speed	20～70m/min
Fixed Cutting length	6-12m
Pipe size range	Φ20～Φ114mm
Warranty	One year
Welding Type	High Frequency Welding

Product Overview

The Ф114Q high-frequency welded pipe production line is designed to produce welded pipes of 20～114mm in diameter with wall thicknesses of 0.8～4mm, including square and rectangular pipes and formed sections of corresponding sizes. Products conform to BS/ASTM standards.

Incorporating Germany pass technology, PLC automatic control system, and British Eurotherm digital speed regulating unit, this production line offers reliable operation with easy maintenance. It represents state-of-the-art domestic technology while rivaling advanced international systems.

Technical Specifications

Main Specifications

Pipe Diameter: Φ20～Φ114mm
Wall Thickness: 0.8～4mm (Round), 0.8～3mm (Square & Rectangular)
Pipe Length: 4～7m
Length Accuracy: 0-6mm (CNC/STD)

Raw Material Conditions

Material: Low carbon steel and low alloy constructional steel
Mechanical Characteristics: σb≤500MPa, σs≤300MPa
Strip Width: 60～360mm
Strip Thickness: 0.8～4mm
Coil Inner Diameter: 490～550mm
Coil Outer Diameter: 900～1800mm
Coil Weight: ≤5t

Performance Parameters

Forming Speed: 20～70m/min
Total Power: approx. 630kW
Compressed Air: 4m³/min at 0.4～0.7MPa
Water Supply: 100l/min for HF, 200l/min for cooling at 0.1～0.25MPa

Production Process

Uncoiling → Shearing and butt welding → Storing in accumulator → Forming → Welding → Cooling → Sizing → Flying saw cutting → Pipe collecting

Workshop Requirements

8m wide, 100m long, with minimum 5m clearance from ceiling rails to ground.

Delivery & Payment Terms

Shipment within 4 months after receipt of down payment.
30% down payment by T/T within 15 days of contract signing.
70% balance by L/C before shipment.

Quality & Service Warranty

Pre-Sales Service

Equipment photos provided before shipment
Online remote guidance for installation and commissioning
Optional on-site engineering support (conditions apply)

After-Sales Service

12-month warranty from equipment arrival date
Free repair/replacement for quality-related failures
Optional on-site commissioning support (conditions apply)

Technical Documentation

Instruction Manual
Inspection Certificate
Loading Order
Layout Drawing
Ground Base Drawing
Electrical Principle Diagram
Overall Assembly Drawings
Vulnerable Parts Diagrams

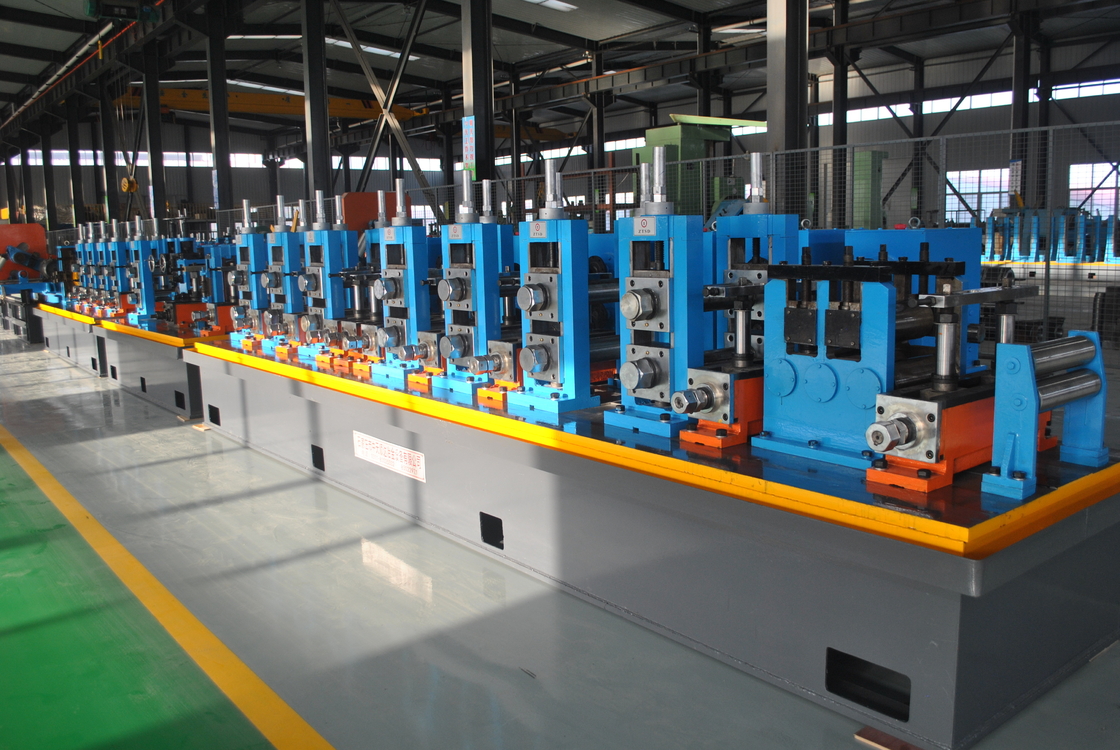

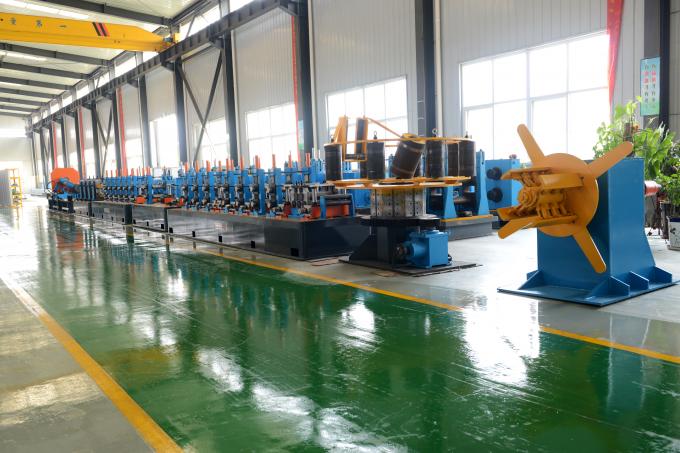

φ114 High Frequency Welding Tube Mill production line
