Home > products >
High Frequency Welded Pipe Mill
>

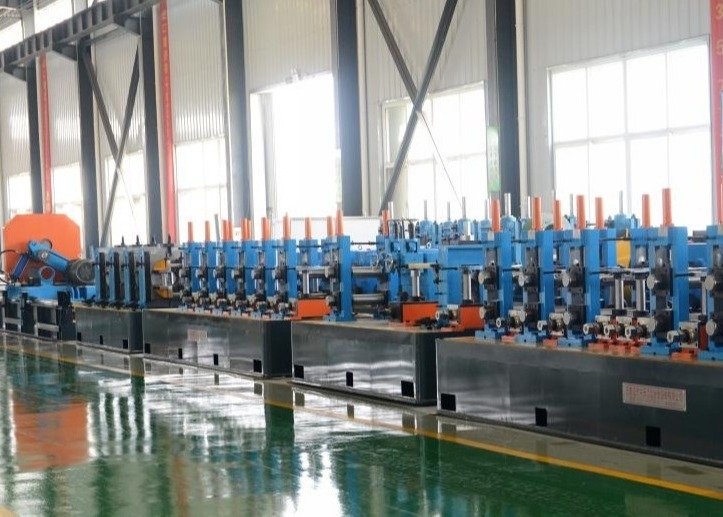

High Frequency Welded Pipe Mill Hg50 12.7-50mm 0.5-2.5mm
High Frequency Welded Pipe Mill Hg50 12.7-50mm 0.5-2.5mm
  • High Frequency Welded Pipe Mill Hg50 12.7-50mm 0.5-2.5mm
  • High Frequency Welded Pipe Mill Hg50 12.7-50mm 0.5-2.5mm

High Frequency Welded Pipe Mill Hg50 12.7-50mm 0.5-2.5mm

Product Details:
Place of Origin: Hebei
Brand Name: TengTian
Certification: CE, ISO9001, BV
Model Number: HG50
Detail Information
Place of Origin:
Hebei
Brand Name:
TengTian
Certification:
CE, ISO9001, BV
Model Number:
HG50
Product Name:
High Frequency Welded Pipe Mill Hg50*2.5 High Frequency Welded Pipe Mill Adopting Roll Pass Design
Coil Thickness:
0.5-2.5mm
Coil Width:
12.7-50mm
Inner Diameter:
φ508～φ610mm
Outer Diameter:
φ1300～φ1760mm
Speed:
Max 80m/min
Warranty:
One Year
Material:
Low Carbon HRC
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

50mm hf welded tube mill

,

2.5mm hf welded tube mill

,

Roll Pass hf welded tube mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
60 work days
Payment Terms:
L/C,T/T
Supply Ability:
50 Sets/Year
Product Description
Hg50*2.5 HF Welded Tube Mill with Roll Pass Design
Product Specifications
Attribute Value
Product Name High Frequency Welded Pipe Mill Hg50*2.5
Coil Thickness 0.5-2.5mm
Coil Width 12.7-50mm
Inner Diameter φ508～φ610mm
Outer Diameter φ1300～φ1760mm
Speed Max 80m/min
Warranty One year
Material Low carbon HRC
HG 50 High-Frequency Welded Pipe Production Line

This production line is designed to manufacture high-quality welded steel pipes, including round, square, and deformed pipes. The roll pass design ensures precision machining and superior assembly quality.

Pipe Specifications
  • Round pipe: φ12.7-50mm
  • Thickness: 0.5-2.5mm
  • Length: 6m
  • Cutting Precision: 0-6mm
Material Specifications
Standard SPHC, SPHT-2, SS400, SS440, SS490
Material Low carbon steel and low alloy constructional steel
Mechanical Properties σb≤520Mpa, σs≤365MPa
Strip Width 39-160mm
Strip Thickness 0.5-2.5mm
System Requirements
  • Workshop: 60x6m, H＞5m (with crane)
  • Power: Approx. 450KW 380V/50Hz/3phases
  • Cooling Water: Flow: 20-30 T/h, Pool Volume: 30m³
  • Compressed Air: Flow: 5m³/min, Pressure: 5-7kg/cm²
Key Components
1. Uncoiler
  • Double expansion and cantilever mandrels
  • Pneumatic system for expanding, contracting, and braking
  • Four-bar linkage mechanism with radial movement
  • Hydraulic expansion type with pneumatic driving brake
2. Shear & Welder

Hydraulic shearing with manual welding capability for strip steel width: 39-160mm, thickness: 0.5-2.5mm.

3. Spiral Accumulator
  • Max working velocity: 240m/min
  • Storage area: 3.5 m²
  • Press & carry motor: AC 11KW
  • Accumulator frame motor: AC 15KW
4. Forming And Sizing Machine
  • Forming speed: 30-80m/min
  • 7 horizontal forming stands, 9 vertical forming stands
  • 5 horizontal sizing stands, 5 vertical sizing stands
  • Main motor: 132kw
5. Cold Saw
  • Cutting precision: ±3mm
  • Drive motor: 15kw servo motor (Yaskawa Japan)
  • Cutting motor: 11KW variable frequency motor
6. Run Out Table

Features 3KW motor with frequency converter for speed control and two-direction pipe loading.

7. 200 KW High Frequency Welder

All-in-one model with paralleling type configuration.

High Frequency Welded Pipe Mill Hg50 12.7-50mm 0.5-2.5mm 0

Tags:

8mm high frequency welded pipe mill,

50mm high frequency welded pipe mill,

cr high frequency welded pipe mill
