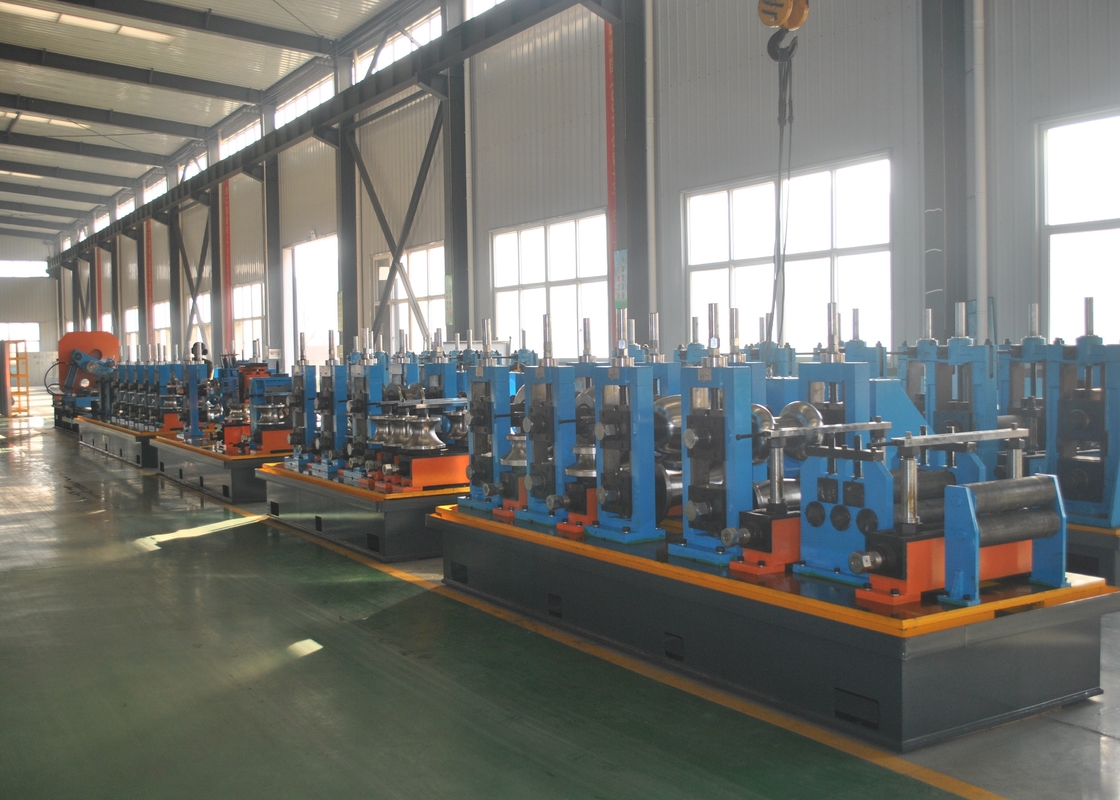

High Frequency Welded Pipe Mill HG75 for 20x25-50x100mm Rectangular Tubes

Name: High Frequency Welded Pipe Mill HG75 for 20x25-50x100mm Rectangular Tubes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HGF75
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	HGF75

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

HGF75

Product Name:

High Frequency Welded Pipe Mill HG75 Rectangular Pipe Hf Welded Tube Mill Size 20x25-50x100mm

Coil Thickness:

1-4mm

Coil Width:

80-300mm

Inner Diameter:

508mm

Outer Diameter:

1800mm

Speed:

Max 100m/min

Warranty:

One Year

Material:

Low Carbon HRC

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

rectangular pipe hf welded tube mill

20x25mm hf welded tube mill

50x100mm high frequency welded pipe mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

High Frequency Welded Pipe Mill HG75 Rectangular Pipe HF Welded Tube Mill

Product Specifications

Coil Thickness	1-4mm
Coil Width	80-300mm
Inner Diameter	508mm
Outer Diameter	1800mm
Maximum Speed	100m/min
Warranty	One year
Material	Low carbon HRC

Main Parameters and Specifications

Material Specifications

Standard	YB189-64
Material	Low carbon steel and low alloy constructional steel
Mechanical Properties	σb≤380Mpa, σs≤275MPa
Strip Width	80-300mm
Strip Thickness	1.0-4.0mm
Coil Inner Diameter	Φ508mm
Coil Outer Diameter	φ1800mm
Coil Weight	≤3.5T

Welded Pipe Specification

Square Tube Size	20X20-75X75mm
Rectangular Tube Size	20X25-50X100mm
Pipe Thickness	1.0-4.0mm
Finish Pipe Length	6-12m
Cut Length Accuracy	±2mm
Forming Speed	40-100m/min

Machine Components and Specifications

1. Double Cone Uncoiler

Coil Outer Diameter	φ1800mm
Coil Inner Diameter	Φ508mm
Strip Width	80-300mm
Strip Thickness	1.0-4.0mm
Max Strip Weight	3.5T
Expansion Type	Manual
Brake System	Pneumatic driving

2. Straight Head Machine and Pinch Leveling Machine

Coil Outer Diameter	Φ1000-Φ1600mm
Coil Width	80-300-320mm
Press Roller Transit Motor	AC 3 Kw (Siemens/Beide)
Structure	Profile welding

3. Automatic Shear and Welder

Strip Width	80-300mm
Welding Thickness	1.0-4.0mm
Cutting Type	Air cutting
Welding Mode	Automatic
Pneumatic Pressure	0.5MPa
Working Cycle	Max. 300 seconds

4. Spiral Horizontal Accumulator

Thickness	1.0-4.0mm
Width	80-300mm
Feeding Speed	Max 200m/min
Carry Motor Power	AC 15 KW
Accumulator Motor Power	AC 22KW
Storage Diameter	4.5 meter

5. Forming and Sizing Machine

Horizontal Stands: 6

Horizontal Shaft Diameter: 85mm

Horizontal Shaft Material: 42Crmov

Forming Speed: 40-100m/min

Motor: DC110Kw

Vertical Stands: 2

Vertical Shaft Diameter: 45mm

Vertical Shaft Material: 40Cr

Universal Stands: 3

6. Cold Saw

Square Pipe Size	20x20-75x75mm
Rectangular Pipe Size	20x25-50X100mm
Material	Q235
Speed	Max. 100m/min
Cutting Length	6-12m
Precision	±3mm
Drive Motor	15kw servo motor (Yaskawa Japan)
Feeding Motor	4.4kw servo motor (Yaskawa Japan)
Cutting Motor	11KW variable frequency motor
