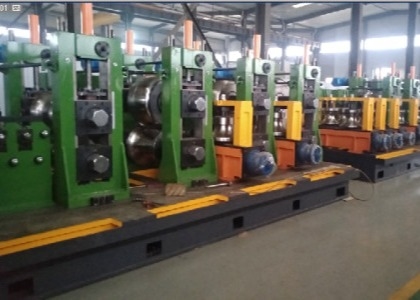

High Frequency Welded Pipe Mill 160x160x8mm ISO9001 Certified

Name: High Frequency Welded Pipe Mill 160x160x8mm ISO9001 Certified
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HGF160
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	HGF160

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

HGF160

Product Name:

High Frequency Welded Pipe Mill Hg 160x160x8 Mm High Frequency Welded Pipe Mill ISO9001

Coil Thickness:

2-8mm

Coil Width:

80-300mm

Inner Diameter:

520-750mm

Outer Diameter:

1200-2000mm

Speed:

Max 40m/min

Warranty:

One Year

Material:

Low Carbon HRC

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

8mm high frequency welded pipe mill

160x160mm high frequency welded pipe mill

iso high frequency welded tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

High Frequency Welded Pipe Mill HG 160×160×8 mm

ISO9001 certified automatic pipe production line for high-quality square and rectangular tube manufacturing.

Product Specifications

Attribute	Value
Coil Thickness	2-8mm
Coil Width	80-300mm
Inner Diameter	520-750mm
Outer Diameter	1200-2000mm
Maximum Speed	40m/min
Warranty	One year
Material	Low carbon HRC

Product Overview

This automatic square and rectangular tube mill line combines LW series technology with FF forming technology to deliver superior performance. The cold-formed multi-point pre-bending process ensures smooth deformation without stress concentration, enhancing steel pipe strength.

Key Advantages

Combined mold design allows production of various rectangular steel pipe specifications within range
90% reduction in required rolls and roll change time
80% increase in production capacity
Motorized automatic adjustment reduces labor requirements
Simple operation with automated size input
Extended equipment service life
Capable of producing open cold bend steel profiles (U, C sections)

Technical Specifications

Basic Conditions

Parameter	Specification
Strip Steel Material	Low carbon steel/low alloy steel (σb≤700MPa, σs≤650MPa)
Coil ID/OD	φ520-φ750mm / Φ1200-φ2000mm
Coil Weight	≤12 ton
Strip Width/Thickness	220-640mm / 2.0-8.0mm
Electrical Capacity	1000KVA
Coolant Capacity	25 ton/hour
Compressed Air	6m³/min at 4-7Kg/cm²

Pipe Range

Type	Dimensions
Square Pipe	55×55 - 160×160mm
Rectangular Pipe	55×60 - 120×200mm
Thickness	2.0-8.0mm

Production Process

Load coil → Uncoil → Straight head → Pinch leveling → Shear and welder → Accumulator → Leveling → Forming/Weld/Cool/Sizing → Cutting → Transit roller → Packing → Stock

Key Components

Loading Car: Hydraulic lift system for coil transport (≤12 ton capacity)
Uncoiler: Single cone hydraulic decoiler with pneumatic brake
Straight Head Machine: 2.2kW motor with hydraulic system for strip preparation
Pinch Leveling: 11kW motor system for strip head/tail leveling
Shear and Welder: Hydraulic cutting with manual alignment/welding
Accumulator: Spiral design with 22kW DC motor (Vmax=120 m/min)
Forming & Sizing: Advanced multi-point pre-bending with high-frequency induction welding
Saw System: High-speed precision cutting (6-12m lengths)

Welding System

Component	Specification
Guide Vertical Roller	Two-roller welding seam guide
Squeeze Roller	Five-roller extrusion system
Scraping Device	Double-knife system with quick change capability
Polishing	Flat roller weld joint polishing
Cooling	Spray + water bath circulating system
Welding Speed	10-40m/min

Optional Automatic Packing System

Complete counting, palletizing, and strapping solution with PLC control (Siemens) and touch screen interface.

Automatic layer stacking and package transfer
Seamless package-to-package transition
Manual/automatic operation modes
Customizable package parameters
