High Frequency Welded Pipe Mill
>

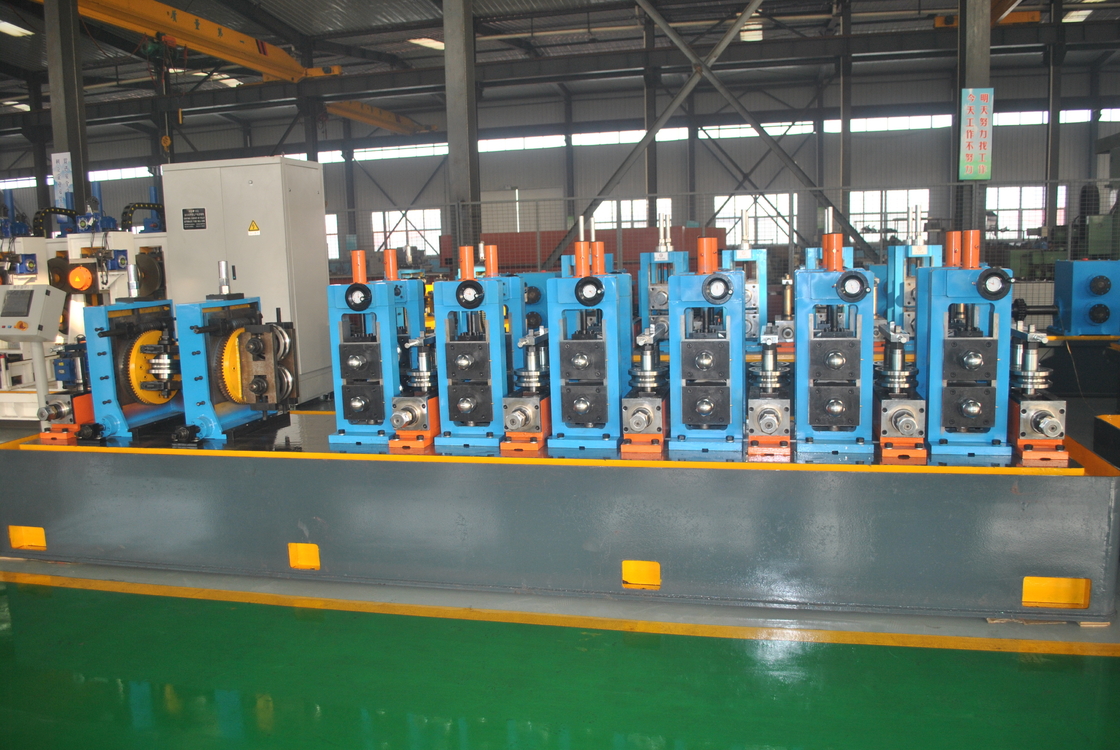

High Frequency Welded Pipe Mill for Gas Water 50m/min
High Frequency Welded Pipe Mill for Gas Water 50m/min
  • High Frequency Welded Pipe Mill for Gas Water 50m/min
  • High Frequency Welded Pipe Mill for Gas Water 50m/min
  • High Frequency Welded Pipe Mill for Gas Water 50m/min

High Frequency Welded Pipe Mill for Gas Water 50m/min

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG219
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE, ISO9001, BV
Model Number:
HG219
Product Name:
High Frequency Welded Pipe Mill For Gas And Water 50m/Min
Tensile Strength Of Raw Material:
σb≤500 Mpa
Thickness:
3-9mm
Max. Production Speed:
20～50m/min
Fixed Cutting Length:
8-12m
Pipe Size Range:
Ф114-219mm
Warranty:
One Year
Welding Type:
High Frequency Welding
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

50m/min high frequency welded pipe mill

,

water high frequency welded pipe mill

,

gas high frequency welded tube mill

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
60 work days
Payment Terms:
L/C,T/T
Supply Ability:
50 Sets/Year
Product Description
High Frequency Welded Pipe Mill For Gas And Water 50m/Min
Product Specifications
Attribute Value
Tensile strength of raw material σb≤500 Mpa
Thickness 3-9mm
Max. Production Speed 20～50m/min
Fixed Cutting length 8-12m
Pipe size range Ф114-219mm
Warranty One year
Welding Type High Frequency Welding
Product Description

The HG219 High-Frequency Welded Pipe Mill Line produces round pipes (Diameter φ114-219mm, thickness 3-9mm) with excellent quality machining and high precision assembly through advanced roll pass design.

Design Features
  • Enhanced operational and production performance
  • Improved operational environment and safety
  • Increased product stability
  • Higher productivity
  • Reduced roll costs

The HG219 production line utilizes a double-radius hole design to achieve these benefits while maintaining high efficiency.

Material Specifications
Material: Low carbon steel and low alloy constructional steel
Mechanical properties: σb≤520Mpa, σs≤340MPa
Strip Width: 357～688mm
Strip Thickness: 1.5～6.0mm
Steel strip coil: Inner Diameter: φ508～φ610mm, Outer Diameter: φ1000～φ2000mm
Coil Weight: ≤12T
Main Specifications of Welding Pipe Products
Pipe Size: Round: φ114～φ219mm
Wall Thickness: 3～9mm
Fixed Cutting length: 8～12m
Pipe-cutting Precision: ±1.5mm
Forming Speed: 20～50m/min
Power, Water & Air Supply
Power: 1200KW, 380V/50Hz/3phases
Circulation Cooling Water: Flow: 30T/h～40 T/h, Pool Volume: 40m³
Compressed Air: Flow: 5m³/min, Pressure: 5～7kg/cm²
Workshop Requirements: 15m wide, 170m long, 5m high
Key Components
Loading Car: Capacity: 12.0T, Motor power: 2.2KW
Uncoiler
OD of coil: Φ1000-2000mm
ID of coil: Φ508-610mm
Expansion Type: Hydraulic expand
Straightener
Processing pressure: 7Mpa
Electric motor power: 2.2KW
Flattener Unit
Width: 357-688mm
Thickness: 3-9mm
Electric motor power: 45KW
Automatic Shear and Welder
Strip width: 357-688mm
Welding thickness: 3-9mm
Working Cycle: Max.600 seconds
Forming & Sizing
Forming Pipe OD: Round:Φ114-219mm
Forming speed: Max.50m/min
Number of forming stands: Horizontal: 7, Vertical: 9
Saw Systems
Flying Saw: Cutting tube Dia:Φ114-219mm, Accuracy:±3mm
Milling Saw: Cutting length accuracy: ±1.5mm, Control: Siemens Simotion D435-2
800KW High Frequency Welder
Output power: Pout＞800kW
Frequency: 100~200KHZ
Rated DC power: 800kW
High Frequency Welded Pipe Mill for Gas Water 50m/min 0 High Frequency Welded Pipe Mill for Gas Water 50m/min 1
