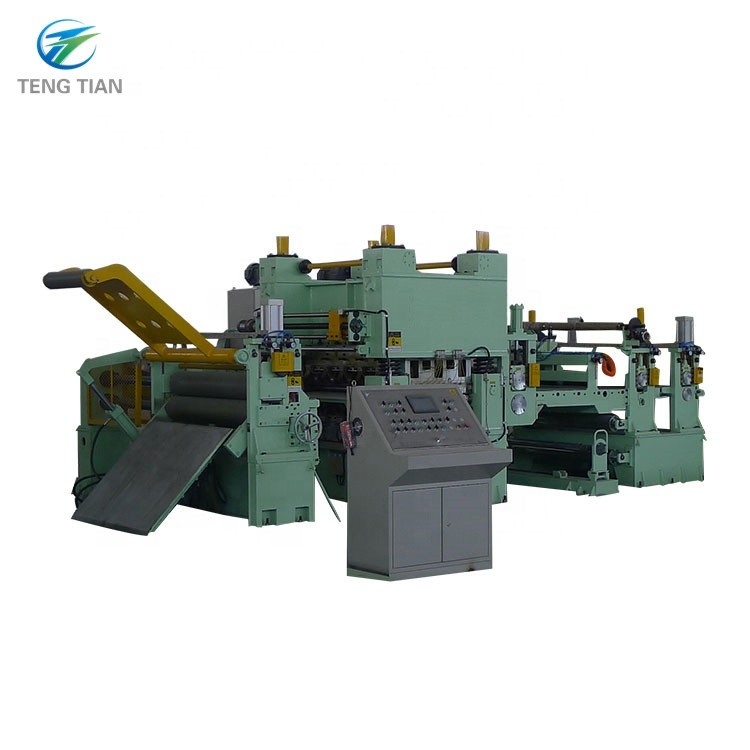

ZTL-13x1600 Steel Slitting Machine for 4-13mm HRC Coils

Storage Rack: Temporarily stores the tape and coil for continuous entry into the unit. The coil is placed on the material preparation rack with a crane and transported to the uncoiler by a trolley.

Loading Car: Used to prepare strip coils and send the coils to the center of the decoiler. Composed of car body, walking device, lifting device and transmission device.

Used to carry the steel coil, rotating the steel coil cooperates with the straight pressure roller and the shovel to disassemble the steel coil. Aligns the center of the steel coil with the center line of the unit.

Straight Head Device: Matches with the shovel and decoiler to disassemble the steel belt head and send the steel belt into the straight-head pinch leveling machine.

Pinch Leveling Machine: Hydraulically presses to clamp the steel belt and levels the strip head before sending it to the shearing butt welding machine.

Used to cut the steel belt head, equipped with a quick adjustment device for the side clearance of the upper and lower cutting blades.

Prevents the strip from running off, with the function of centering and width adjustment.

One of the main equipment in the slitting unit, cuts wide-band steel coils into narrow-strip steel coils of different widths.

Installed on both sides behind the disc cutter, used to wind the scrap edges after the disc cutter is divided into strips.

Used to store the steel belt and adjust the speed difference between the disc cutter and the coiler.

Used to separate the cut strip and realize the adjustment of tension, and the lifting of the pallet feeds the coiler.

One of the main equipment in the slitting unit, rolls the strip after slitting into a coil.

Installed under the reel of the coiler, unloads the cut steel coil from the reel and sends it out to be lifted by the workshop crane.

Completes the process control and adjustment of the entire unit, ensuring orderly actions according to production and process requirements.

Composed of hydraulic station, valve block, pipeline, etc. System working pressure: 10-12 MPa.
