3 Inch High Frequency Welded Pipe Mill for Round Square Rectangular Tubes

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	3"

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

Product Name:

High Frequency Welded Pipe Mill 3" Round Pipe Mill Machine , Quick Change Tube Mill Equipment

Production:

Round Pipe

Feature:

Quick Change

Name:

Tube Mill

Other Pipe:

Square Pipe And Rectangular Pipe

Max Size:

60x60mm

Thickness:

3mm

Length:

6-12m

Rollers:

Include

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

quick change tube pipe mill machine

3inch pipe mill machine

3" tube mill equipment

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

60 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

3" Round Pipe Mill Machine, Quick Change Tube Mill Equipment

Product Specifications

Attribute	Value
Product Name	High Frequency Welded Pipe Mill 3" Round Pipe Mill Machine, Quick Change Tube Mill Equipment
Production	Round pipe
Feature	Quick change
Other Pipe Types	Square pipe and Rectangular pipe
Max Size	60x60mm
Thickness	3mm
Length	6-12m
Rollers	Included

Machine Overview

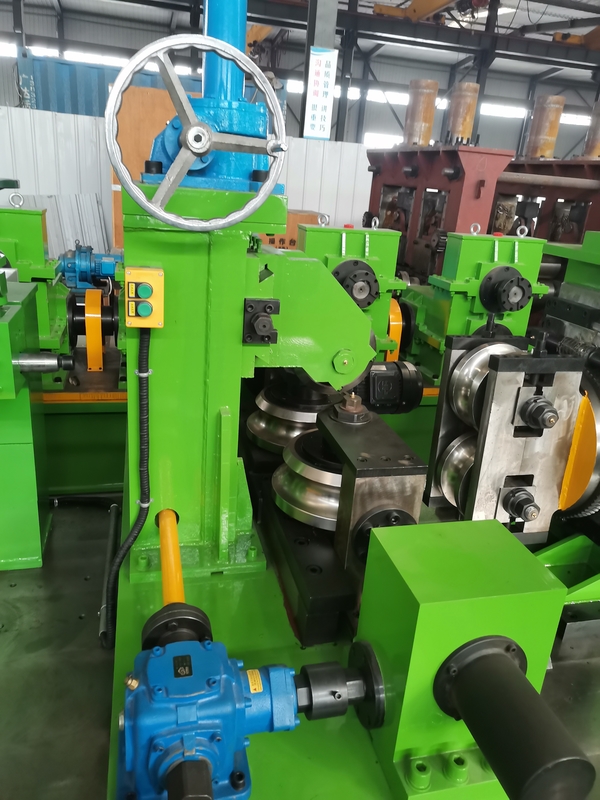

This high-frequency welded pipe mill is designed to produce various steel pipes including round, square, and deformed pipes. Featuring precision roll pass design, the production line delivers high-quality welded steel pipes with excellent machining quality and assembly precision.

Technical Specifications

Material Specifications:	Standard: SPHC, SPHT-2, SS 400, SS440, SS490 Material: Low carbon steel and low alloy constructional steel Mechanical properties: σb≤520Mpa, σs≤365MPa Strip Width: 110-250mm Strip Thickness: 0.9-4.5mm Inner Diameter of Coils: Φ508mm Outer Diameter of Coils: Φ1300～φ2000mm Coil Weight: ≤11T
Pipe Specifications:	Pipe Diameter: - Round pipe: φ38-76mm - Square pipe: 30x30, 40x40, 50x50, 60x60mm - Rectangular pipe: 40x20, 50x30, 60x40, 75x45mm Thickness: 0.9-4.5mm Length: 6-15m Pipe-cutting Precision: 0-6mm Forming Speed: Max 160m/min for 2mm thickness
Buyer-Supplied Requirements:	Workshop: 95x12m, H＞5m (crane to ground) Power: Approx. 850KW 380V/60Hz/3phases Circulation Cooling Water (whole system): Flow:30+30 CBM, Pool Volume:40m³ Compressed Air (whole system): Flow:5m³/min, Pressure: 5-7kg/cm² Cable: All cable outside of machine to be purchased after machine installation

Production Process

Strip steel to coil
Uncoiler
End straightener
Flattener
Shear welder
Storage material unit
Forming, welding, cooling, accurate pipe diameter sizing
Accurate pipe length sizing, cutting
Inspection
Package

Quality Assurance & Service Warranty

Our technical service personnel will be on-site for equipment installation, debugging, and commissioning. We provide comprehensive training for operation and maintenance personnel. The warranty covers 12 months from equipment arrival date. Under normal operating conditions, we provide free repair or replacement for any quality-related parts damage that affects equipment operation.
