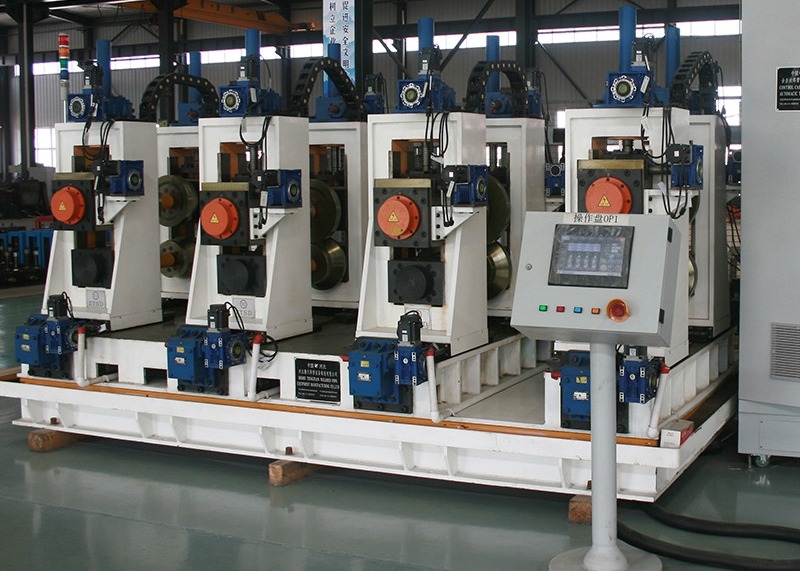

Full Automatic Square HRC Steel Pipe Tube Mill 30 m/min

Name: Full Automatic Square HRC Steel Pipe Tube Mill 30 m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG200F
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	HG200F

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

HG200F

Product Name:

Square Hrc Steel Pipe Making Machine Equipment Full Automatic Tube Mill

Coil Thickness:

12 Mm

Coil Width:

600 Mm

Inner Diameter:

580mm

Outer Diameter:

2100mm

Speed:

30 M/min

Warranty:

One Year

Material:

Low Carbon HRC

Forming Type:

Direct Forming

Work Shop:

180 X 24 M, H＞7m ( Crane To Ground )

Highlight:

High Light

Highlight:

hrc steel pipe mill equipment

fullautomatic high precision pipe mill equipment

hrc steel automatic tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Square HRC Steel Pipe Making Machine Equipment - Full Automatic Tube Mill

Key Attributes

Attribute	Value
Product Name	Square HRC Steel Pipe Making Machine Equipment Full Automatic Tube Mill
Coil Thickness	12 mm
Coil Width	600 mm
Inner Diameter	580 mm
Outer Diameter	2100 mm
Speed	30 m/min
Warranty	One year
Material	Low carbon HRC
Forming Type	Direct forming
Work Shop	180 x 24 m, H＞7m (crane to ground)

Product Overview

This high precision high frequency welded pipe production line is designed for manufacturing square and rectangular pipes. Incorporating innovative design elements from domestic and international equipment, it features full PC/computer control with advanced technology for convenient operation and maintenance. The system represents leading domestic technology comparable to international standards.

Advantages Over Traditional Production Lines

Rapid roller adjustment capability significantly reduces product changeover time, improving efficiency and lowering production costs
Utilizes combined molds that accommodate different tube specifications through adjustment rather than replacement, achieving over 90% roller savings
Motorized adjustments minimize tool input and equipment damage during roll changes, extending equipment lifespan
Composite roll structure creates point contact (vs. traditional line contact) between roll and strip, reducing wear and extending roll life

Production Process

Raw material (strip)
Loading car
Uncoiler
Cutting and Welding
Feeding
Storage material
Passive leveling
Forming rolling
High frequency welding
Remove the weld burr
Cooling
Sizing
Coarse straightening
Length cut
Collection

Technical Specifications

Model	Side Length Range	Thickness	Molding Speed (m/min)	Motor Power (KW)	Mechanical Area (m³)
HG20	6×6 - 16×16 mm	0.3-1 mm	30-120	55	7×50
HG32	9×9 - 25×25 mm	0.3-2.0 mm	30-120	75	7×50
HG50	12×12 - 40×40 mm	0.8-2.5 mm	30-110	110	7×60
HG60	15×15 - 47×47 mm	0.8-3 mm	30-100	132	7×65
HG76	9×9 - 60×60 mm	1-3 mm	30-100	320	8×80
HG89	25×25 - 70×70 mm	1-4 mm	30-80	350	8×80
HG114	35×35 - 89×89 mm	1.5-5.0 mm	30-60	400	10×100
HG165	47×47 - 129×129 mm	3-7 mm	30-50	600	10×110
HG219	89×89 - 172×172 mm	4-8 mm	20-40	800	12×150
HG273	89×89 - 214×214 mm	4-10 mm	15-30	1000	18×160
HG325	129×129 - 255×255 mm	4-12 mm	10-30	1200	18×180
HG426	129×129 - 335×335 mm	4-16 mm	8-25	1400	18×180
HG508	172×172 - 400×400 mm	4-20 mm	8-20	2000	21×180

Recent Technology Expansion: Additional available projects include HG600 production line for square welded pipes (max side length 600×600mm) and HG765 production line for round welded pipes (max diameter 765mm).

Factory Appearance
