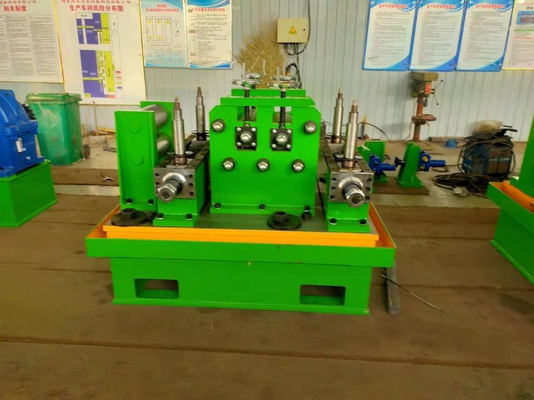

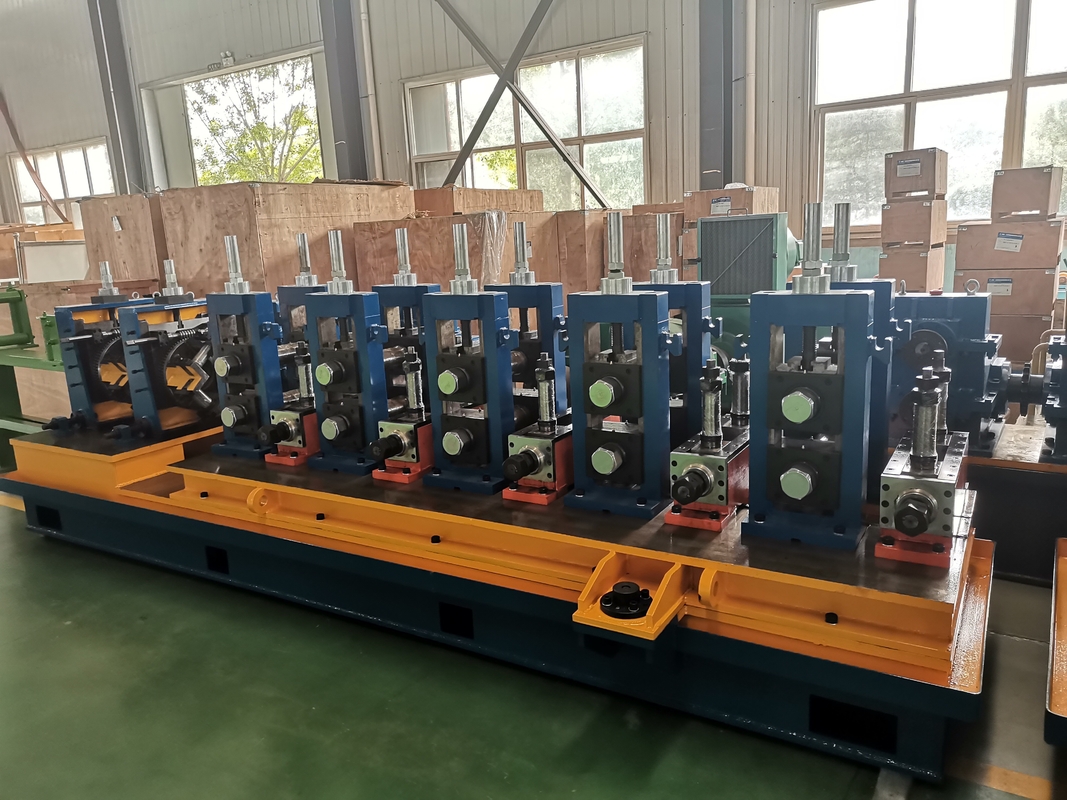

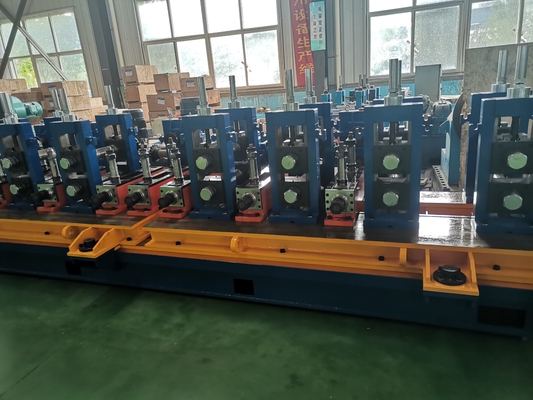

High Frequency Welded Pipe Mill Carbon Steel Quick Change Tube

Large Image : High Frequency Welded Pipe Mill Carbon Steel Quick Change Tube

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	3"

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$100000 to $1 million
Packaging Details:	standard export package
Delivery Time:	60 wording days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5 set/month

Contact Now

Detailed Product Description

Product Name:	High Frequency Welded Pipe Mill Carbon Steel Quick Change Tube	Production:	Round Pipe

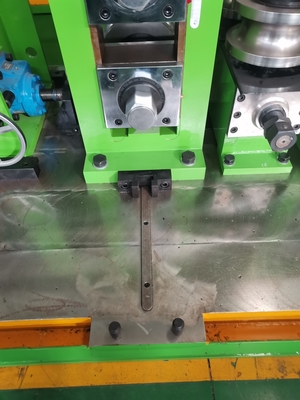

Feature:	Quick Change	Name:	Tube Mill
Other Pipe:	Square Pipe And Rectangular Pipe	Max Size:	50x50mm
Thickness:	0.8-3.0mm	Length:	6-12m
Rollers:	Include	Keywords:	High Frequency Welded Pipe Mill
Highlight:	60mm high frequency welded pipe mill , 3inch high frequency welded pipe mill , hf welded tube mill quick change

60mm carbon steel pipe quick change tube mill

1.Machine General Introduction

it is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe.

Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

2.Main Parameters and Specifications:

(1)Material Specifications:
Standard	SPHC,SPHT-2,SS 400,SS440,SS490
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤520Mpa,σs≤365MPa
Strip Width	60-200mm
Strip Thickness:	0.8-3.0mm
Inner Diameter of Coils	Φ508mm (buyer should confirm)
Outer Diameter of Coils	Φ1300～φ1760mm (buyer should confirm)
Coil Weight	≤3.5T
(2)Pipe Specification
Pipe Diameter	Round pipe:φ20-60mm Thickness:0.8-3.0mm Square pipe :15x15-50x50 Thickness:0.8-3.0mm
Length	6m
Pipe-cutting Precision	0-6mm
Forming Speed	Max 80m/min (max size and thickness cannot up to max speed)
(3)The buyer should self-supply
Work shop	60x6m, H＞5m(crane to ground)
Power	Approx.450KW 380V/50Hz/3phases
Circulation Cooling Water(whole system)	Flow:20T/h～30 T/h Pool Volume:30m3
Compressed Air (whole system)	Flow:5m3/min Pressure: 5-7kg/ cm2
Cable	All cable outside of my machine, you buy after machine fix location.

3.Working Process:

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

4.Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.

High Frequency Welded Pipe Mill Carbon Steel Quick Change Tube 0
