Round MS Carbon Steel High Frequency Welded Pipe Mill

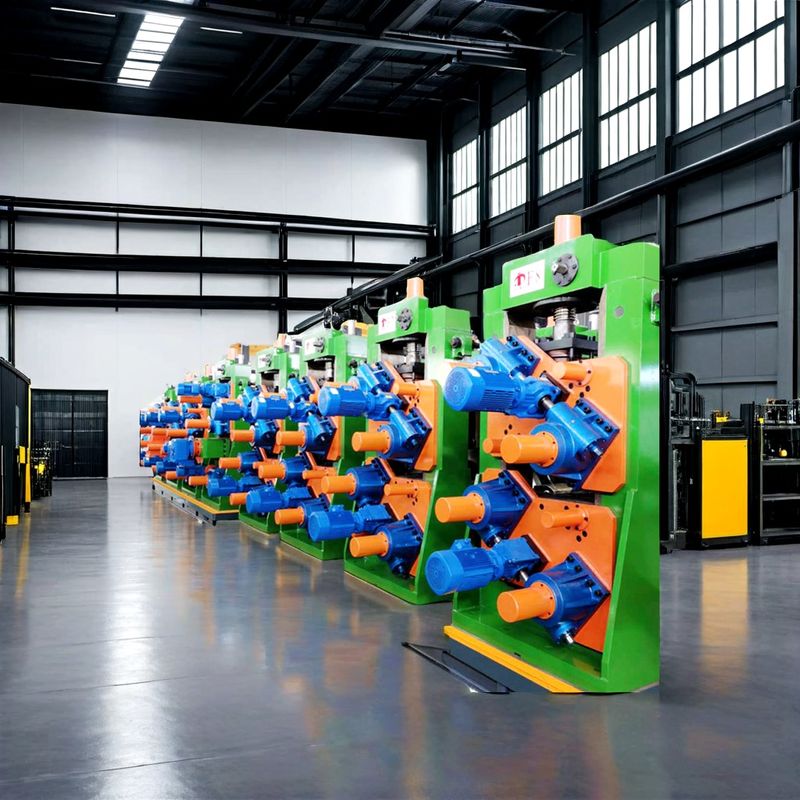

Large Image : Round MS Carbon Steel High Frequency Welded Pipe Mill

Product Details:

Place of Origin:	Hebei,CHINA
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG200x200

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	Export waterproof and Seaworthy packing.
Delivery Time:	180 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Production Name:	MS High Frequency Welded Carbon Steel Pipe Mill	Material:	HRC,CRC,Galvanised Steel
Pipe Size:	80x80-200x200mm	Pipe Thickness:	4.0-10.0mm
Welding Type:	High Frequency Welding	Pipe Shape:	Round,square,rectangular
Roller Materoal:	Cr12/SKD11	Key Words:	High Frequency Welded Pipe Mill
Highlight:	MS Carbon Welded Pipe Mill , High Frequency Welding Pipe Mill , Round Welded Pipe Mill

High Frequency Welded Carbon Steel Pipe Mill

Round MS Carbon Steel High Frequency Welded Pipe Mill 0

Product Description:

Automatic Steel Pipe 200x200mm High Frequency Welded Pipe Mill is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.

square tube size:80x80-200x200mm, tube thickness: 4.0-10.0mm

Round MS Carbon Steel High Frequency Welded Pipe Mill 1

Main Parameters and Specifications:

Material Specifications

Conforming to the YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa,σs≤275MPa
strip width	320～800mm
strip thickness	4.0～10.0mm
I.D of Coils	Φ508mm
O.D of Coils	φ2000mm
Coil Weight	≤10T

Welded Pipe Specification

square tube size	80x80-200x200mm
pipe thickness	4.0-10.0mm
Finish pipe length	4-8m
Cut length accuracy	±2mm
Forming speed	20-50m/min

workshop require

8m wide, 120m long, at least 6m high from Ceiling Rails to Ground.

ERW Tube Mill Other Model

Model	Diameter Range	Pipe Thickness	Line Speed(m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

Round MS Carbon Steel High Frequency Welded Pipe Mill 3

Round MS Carbon Steel High Frequency Welded Pipe Mill 4

Round MS Carbon Steel High Frequency Welded Pipe Mill 5

Round MS Carbon Steel High Frequency Welded Pipe Mill 7

Round MS Carbon Steel High Frequency Welded Pipe Mill 8

FAQ:

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
