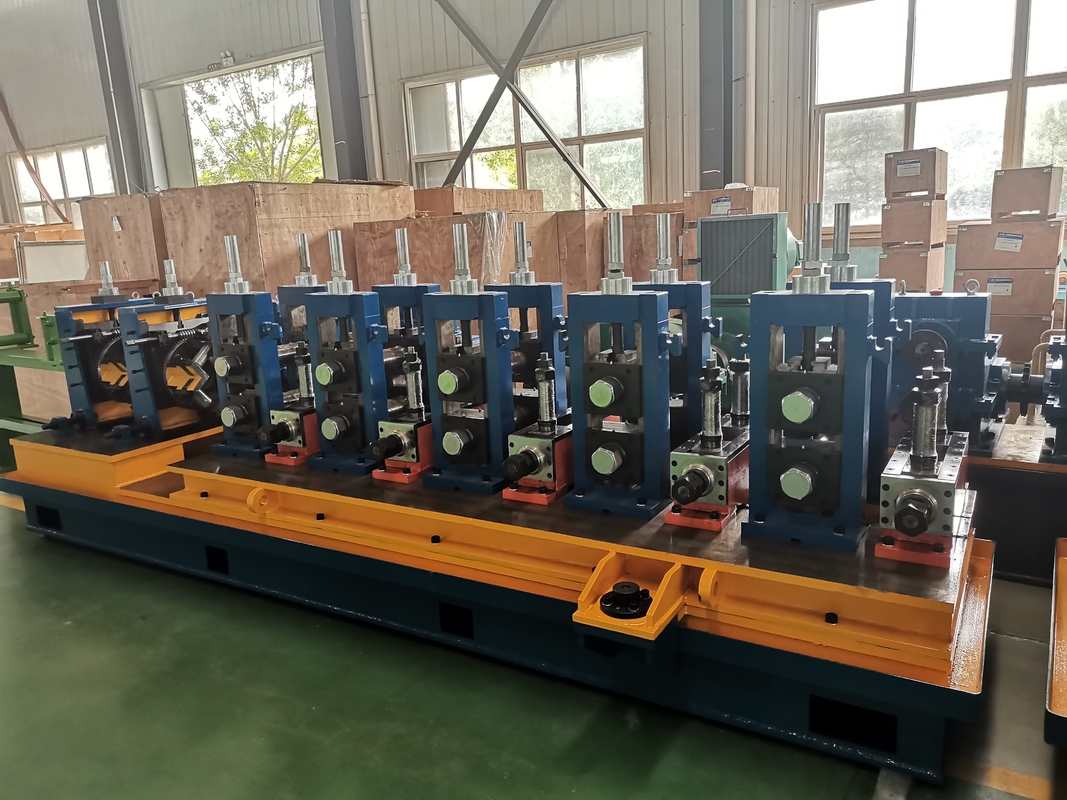

High Frequency Welded Pipe Mill for Carbon Steel Tubes 50x50mm

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	3"

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

Product Name:

High Frequency Welded Pipe Mill Carbon Steel Quick Change Tube

Production:

Round Pipe

Feature:

Quick Change

Name:

Tube Mill

Other Pipe:

Square Pipe And Rectangular Pipe

Max Size:

50x50mm

Thickness:

0.8-3.0mm

Length:

6-12m

Rollers:

Include

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

60mm high frequency welded pipe mill

3inch high frequency welded pipe mill

hf welded tube mill quick change

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

60 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

High Frequency Welded Pipe Mill Carbon Steel Quick Change Tube

Product Specifications

Attribute	Value
Production	Round pipe
Feature	Quick change
Other pipe types	Square pipe and Rectangular pipe
Max size	50x50mm
Thickness	0.8-3.0mm
Length	6-12m
Rollers	Included

Machine Overview

This 60mm carbon steel pipe quick change tube mill is designed to produce high-quality welded steel pipes, including round pipe, square pipe, and deformed pipe. The production line features precision roll pass design for excellent machining quality and high assembly precision.

Technical Specifications

Material Specifications

Standard	SPHC, SPHT-2, SS 400, SS440, SS490
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤520Mpa, σs≤365MPa
Strip Width	60-200mm
Strip Thickness	0.8-3.0mm
Inner Diameter of Coils	Φ508mm (buyer should confirm)
Outer Diameter of Coils	Φ1300～φ1760mm (buyer should confirm)
Coil Weight	≤3.5T

Pipe Specifications

Pipe Diameter	Round pipe: φ20-60mm Square pipe: 15x15-50x50mm Thickness: 0.8-3.0mm
Length	6m
Pipe-cutting Precision	0-6mm
Forming Speed	Max 80m/min (max size and thickness cannot reach max speed)

Buyer-Supplied Requirements

Work shop: 60x6m, H＞5m (crane to ground)
Power: Approx.450KW 380V/50Hz/3phases
Circulation Cooling Water (whole system): Flow:20T/h～30 T/h, Pool Volume:30m³
Compressed Air (whole system): Flow:5m³/min, Pressure: 5-7kg/cm²
Cable: All cable outside of machine to be purchased after machine installation

Working Process

Strip steel to coil
Uncoiler
End straightener
Flattener
Shear welder
Storage material unit
Forming, welding, cooling, accurate pipe diameter sizing
Accurate pipe length sizing, cutting
Inspection
Package

Quality Assurance & After-Sales Service

Our technical service personnel will be present for equipment installation and commissioning, providing operation and maintenance training for your staff. The equipment comes with a 12-month warranty from the date of arrival. Under normal operating conditions, we provide free repair or replacement for any quality-related issues that prevent normal operation.
