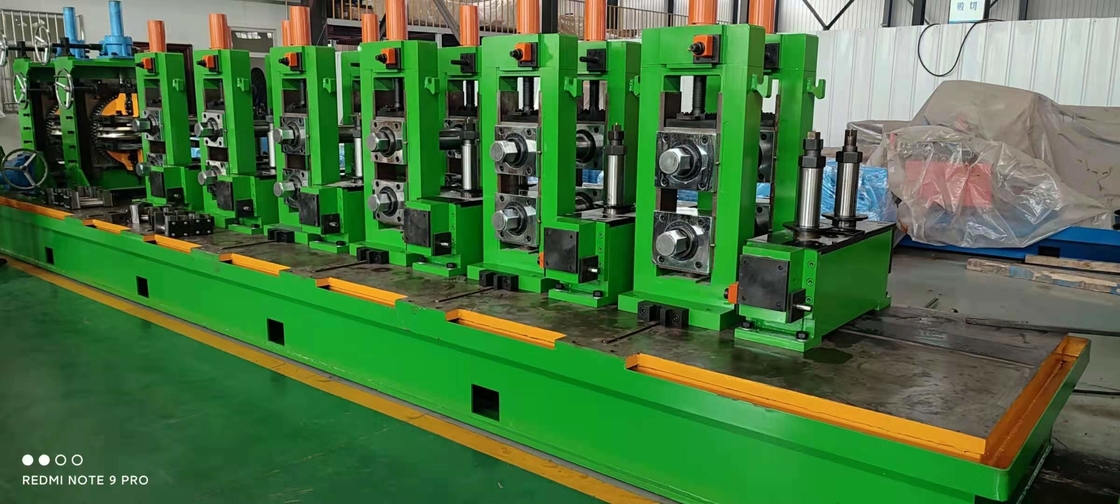

168mm ERW HF Welded Tube Mill for Round Square Pipes 50x50-110x110mm

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	3"

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

Model Name:

High Frequency Welded Pipe Mill 168 Mm Erw Hf Welded Tube Mill Quick Change Low Noise

Production:

Round Pipe

Feature:

Quick Change

Name:

Tube Mill

Other Pipe:

Square Pipe And Rectangular Pipe

Max Size:

50x50-110x110mm

Thickness:

2.0-5.0mm

Length:

6-12m

Rollers:

Include

Keywords:

High Frequency Welded Pipe Mill

Highlight:

High Light

Highlight:

quick change hf welded tube mill

168mm hf welded tube mill

erw hf welded tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

60 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

168mm ERW HF Welded Tube Mill - Quick Change, Low Noise

Product Specifications

Attribute	Value
Model Name	High Frequency Welded Pipe Mill 168mm ERW HF Welded Tube Mill Quick Change Low Noise
Production	Round pipe, square pipe, rectangular pipe
Feature	Quick change
Max Size	50x50-110x110mm
Thickness	2.0-5.0mm
Length	6-12m
Rollers	Included

Machine Overview

This high-frequency welded tube mill is designed to produce precision welded steel pipes including round, square, and deformed pipes. Featuring advanced roll pass design, the production line delivers superior quality welded steel pipes with high precision assembly.

Technical Specifications

Material Specifications

Standard	Conforming to YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical Properties	δs≤345Mpa δb≤610Mpa
Strip Width	180-520mm
Strip Thickness	2.0-5.0mm
Coil Dimensions	Inner: φ480-φ570mm \| Outer: φ1000-φ1800mm
Coil Weight	≤10T

Pipe Specifications

Pipe Diameter	Round: φ60-165mm \| Square: 50x50-110x110mm
Length	4-6m
Cutting Precision	0-6mm
Forming Speed	10-50m/min

Buyer-Supplied Requirements

Workshop: 60x6m, H＞5m (with crane)
Power: Approx. 1212KW 380V/50Hz/3phases
Cooling Water: Flow 20-30T/h, Pool Volume 30m³
Compressed Air: Flow 5m³/min, Pressure 5-7kg/cm²
Seller will provide complete requirements list

Production Process

Strip steel to coil
Uncoiler
End straightener
Flattener
Shear welder
Storage material unit
Forming, welding, cooling, diameter sizing
Length sizing and cutting
Inspection
Packaging

Quality Assurance & Service

Our technical personnel will be on-site for equipment installation, commissioning, and operator training. The warranty covers 12 months from equipment arrival date. Under normal operating conditions, we provide free repair or replacement for any quality-related component failures.
