76mm Full Automatic Tube Mill for Round and Square Pipes

Name: 76mm Full Automatic Tube Mill for Round and Square Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76 mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG76 mm

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG76 mm

Model:

HG 76mm

Production:

Round Pipe

Feature:

Full Automatic

Name:

Tube Mill

Other Pipe:

Square Pipe And Rectangular Pipe

Max Size:

15x15-60x60mm φ16—φ76mm

Thickness:

0.4-2.5mm

Length:

6-12m

Rollers:

Include

Highlight:

High Light

Highlight:

76mm automatic tube mill

bv automatic tube mill

76mm tube mill machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

60 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

76mm Full BV Automatic Tube Mill Square Pipe Making Machine

Product Specifications

Model	HG 76mm
Production	Round pipe
Feature	Full automatic
Name	Tube mill
Other pipe types	Square pipe and Rectangular pipe
Max size	15x15-60x60mm / φ16—φ76mm
Thickness	0.4-2.5mm
Length	6-12m
Rollers	Included

Machine Overview

This fully automatic tube mill is designed for high-precision production of welded steel pipes, including round, square, and deformed pipe varieties. Featuring advanced roll pass design, the production line delivers superior quality machining and precision assembly.

Technical Specifications

Material Specifications

Standard	SPHC, SPHT-2, SS 400, SS440, SS490
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤520Mpa, σs≤365MPa
Strip Width	47-240mm
Strip Thickness	0.4-2.5mm
Inner Diameter of Coils	Φ508mm (buyer should confirm)
Outer Diameter of Coils	Φ1300～φ1760mm (buyer should confirm)
Coil Weight	≤3.5T

Pipe Specifications

Pipe Diameter	Round pipe: φ16-76mm Square pipe: 16X16-76X60 Rectangular pipe: 20x30-40x60mm Thickness: 0.4-2.5mm
Length	6m
Pipe-cutting Precision	0-6mm
Forming Speed	Max 80m/min (max size and thickness cannot reach max speed)

Buyer-Supplied Requirements

Work shop	60x6m, H＞5m (crane to ground)
Power	Approx. 450KW 380V/50Hz/3phases
Circulation Cooling Water	Flow: 20T/h～30 T/h Pool Volume: 30m³
Compressed Air	Flow: 5m³/min Pressure: 5-7kg/cm²
Cable	All cable outside of machine to be purchased after machine is fixed in location

Production Process

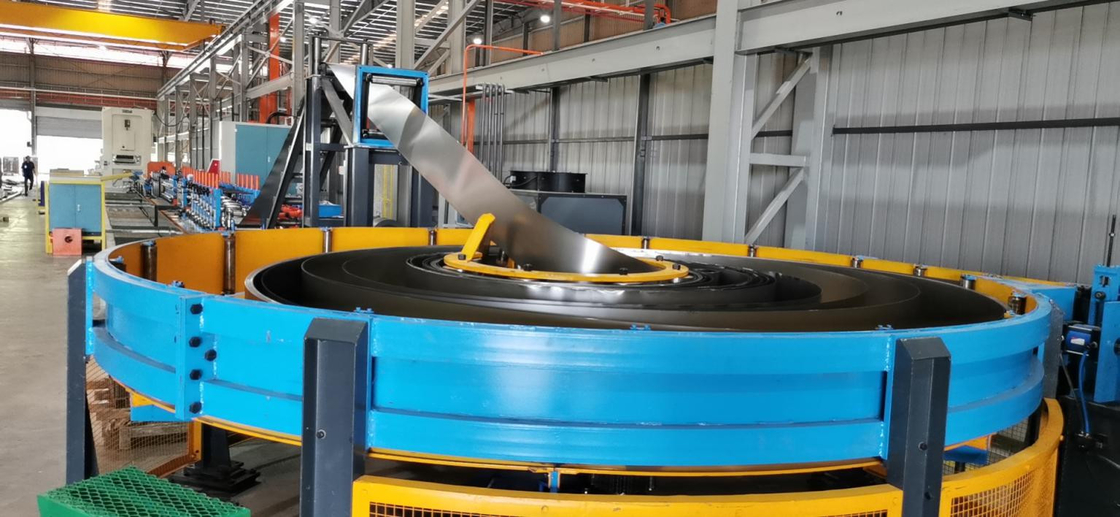

strip steel to coil → uncoiler → end straightener → flattener → shear welder → storage material unit → forming, welding, cooling, accurate pipe diameter sizing → accurate pipe length sizing, cutting → inspection → package

Quality Assurance & Service

Our technical service personnel will be on-site for equipment installation, debugging, and commissioning. We provide comprehensive training for operation and maintenance personnel. The equipment comes with a 12-month warranty from the date of arrival. Under normal operating conditions, we provide free repair or replacement for any quality-related issues affecting equipment performance.
