HG 219X6mm Full Automatic Tube Mill for Round and Square Pipes

Name: HG 219X6mm Full Automatic Tube Mill for Round and Square Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76 mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG76 mm

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG76 mm

Model:

HG 219X6mm

Production:

Round Pipe And Square Pipe

Feature:

Full Automatic

Name:

Tube Mill

Other Pipe:

Square Pipe And Rectangular Pipe

Max Size:

50x50-170x170mm φ60.3—φ219mm

Thickness:

2.0-5.5mm

Length:

6-12m

Rollers:

Include

Highlight:

High Light

Highlight:

219mm od tube mill equipment

hfw full automatic tube mill equipment

6mm thick automatic tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

60 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

219x6mm Tube Mill Equipment High Frequency Welded Full Automatic Tube Mill

Product Specifications

Attribute	Value
Model	HG 219X6mm
Production	Round pipe and square pipe
Feature	Full automatic
Name	Tube mill
Other pipe	Square pipe and Rectangular pipe
Max size	50x50-170x170mm φ60.3—φ219mm
Thickness	2.0-5.5mm
Length	6-12m
Rollers	Included

Machine Overview

This high frequency welded pipe mill is designed for full automatic production of round pipes, square pipes, and deformed pipes. Featuring precision roll pass design, it delivers high-quality welded steel pipes with excellent dimensional accuracy.

Technical Specifications

Material Specifications

Standard: SPHC, SPHT-2, SS 400, SS440, SS490
Material: Low carbon steel and low alloy constructional steel
Mechanical properties: σb≤520Mpa, σs≤365MPa
Strip Width: 180-700mm
Strip Thickness: 2.0-5.5mm
Inner Diameter of Coils: Φ508mm (buyer should confirm)
Outer Diameter of Coils: Φ1300～φ1760mm (buyer should confirm)
Coil Weight: ≤15T

Pipe Specifications

Pipe Diameter:
- Round pipe: φ60.3-φ219.1mm
- Square tube: 50X50-170X170mm
Length: 6m
Pipe-cutting Precision: 0-6mm
Forming Speed: Max 80m/min (max size and thickness cannot reach max speed)

Buyer-Supplied Requirements

Work shop: 180x6m, H＞5m (crane to ground)
Power: Approx.450KW 380V/50Hz/3phases
Circulation Cooling Water (whole system): Flow:20T/h～30 T/h, Pool Volume:30m³
Compressed Air (whole system): Flow:5m³/min, Pressure: 5-7kg/cm²
Cable: All cable outside of machine to be purchased after machine installation

Production Process

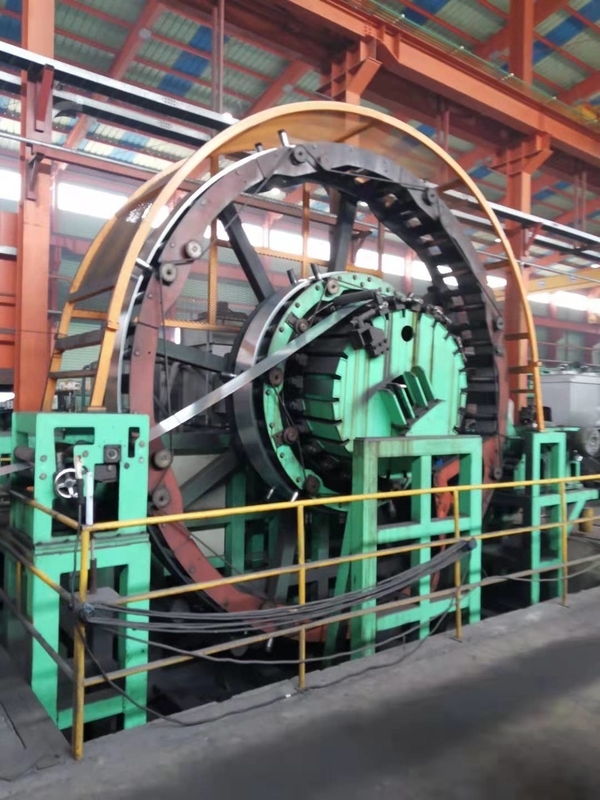

Strip steel to coil → Uncoiler → End straightener → Flattener → Shear welder → Storage material unit → Forming, welding, cooling → Pipe diameter sizing → Pipe length sizing, cutting → Inspection → Packaging

Quality Assurance & Warranty

Our technical service personnel will be on-site for equipment installation, debugging, and commissioning. We provide comprehensive training for operation and maintenance personnel. The equipment comes with a 12-month warranty from the date of arrival. Under normal operating conditions, we will repair or replace any defective parts free of charge.
