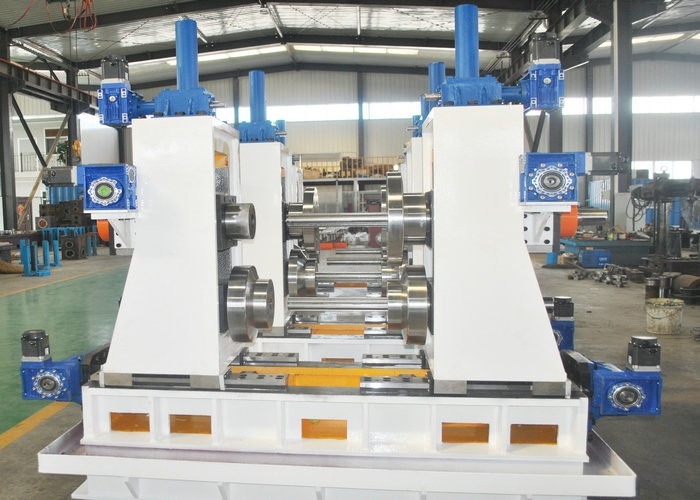

3mm HF Welded Automatic Tube Mill for Square Rectangular Pipes

Name: 3mm HF Welded Automatic Tube Mill for Square Rectangular Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	HG76

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

HG76

Product Name:

Straight Seam 3mm Hf Welded Automatic Tube Mill For Construction Pipe

Tube Shape:

Square And Rectangular

Equipment Specification:

Customer Specified

Forming Method:

Roller Squeeze

Welding Method:

High Frequency Induction Welding

Speed:

80 M/min

Warranty:

One Year

Material:

Low Carbon HRC

Forming Type:

Direct Forming

Work Shop:

120 X 10 M, H＞7m ( Crane To Ground )

Highlight:

High Light

Highlight:

straight seam hf welded tube mill

3mm hf welded tube mill

construction pipe automatic tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Straight Seam 3mm HF Welded Automatic Tube Mill for Construction Pipe

Product Specifications

Attribute	Value
Product name	Straight Seam 3mm HF Welded Automatic Tube Mill for Construction Pipe
Tube shape	Square and rectangular
Equipment Specification	Customer specified
Forming method	Roller Squeeze
Welding method	High frequency induction welding
Speed	80 m/min
Warranty	One year
Material	Low carbon HRC
Forming type	Direct forming
Work shop	120 x 10 m, H＞7m (crane to ground)

High Frequency Welder Straight Seam Construction Pipe Full Automatic Tube Mill

This high precision high frequency welded pipe production line is designed for manufacturing square and rectangular pipes. The system features a double-radius hole design to enhance operational performance, production efficiency, and product stability while reducing roll costs.

Design Features

Improved operational and production performance
Enhanced work environment and safety
Increased product stability
Higher productivity
Reduced roll costs

Equipment Components

1. Loading car	2. Uncoiler
3. Straightener unit	4. Flattener unit
5. Automatic Shear & Welder	6. Accumulator
7. Forming & Sizing	8. Cold saw / Milling saw / Flying saw
9. Transit roller + Unloading Rack	10. Automatic palletizing machine
11. Roller	12. High frequency welder

Technical Specifications

Model	Side Length Range	Thickness	Production Speed (m/min)	Motor Power (KW)	Mechanical Area (m³)
HG20	6×6-16×16 mm	0.3-1 mm	30-120	55	7×50
HG32	9×9-25×25 mm	0.3-2.0 mm	30-120	75	7×50
HG50	12×12-40×40 mm	0.8-2.5 mm	30-110	110	7×60
HG60	15×15-47×47 mm	0.8-3 mm	30-100	132	7×65
HG76	9×9-60×60 mm	1-3 mm	30-100	320	8×80
HG89	25×25-70×70 mm	1-4 mm	30-80	350	8×80
HG114	35×35-89×89 mm	1.5-5.0 mm	30-60	400	10×100
HG165	47×47-129×129 mm	3-7 mm	30-50	600	10×110
HG219	89×89-172×172 mm	4-8 mm	20-40	800	12×150
HG273	89×89-214×214 mm	4-10 mm	15-30	1000	18×160
HG325	129×129-255×255 mm	4-12 mm	10-30	1200	18×180
HG426	129×129-335×335 mm	4-16 mm	8-25	1400	18×180
HG508	172×172-400×400 mm	4-20 mm	8-20	2000	21×180

Recent technology expansion: Now available for square welded pipes up to 600×600mm (HG600) and round welded pipes up to 765mm diameter (HG765).
