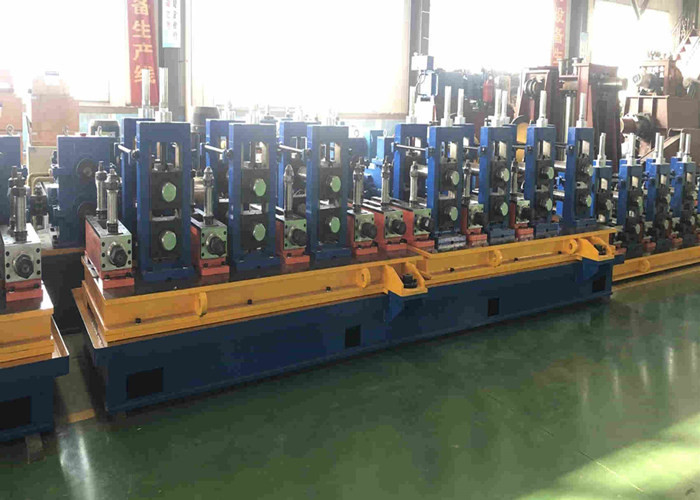

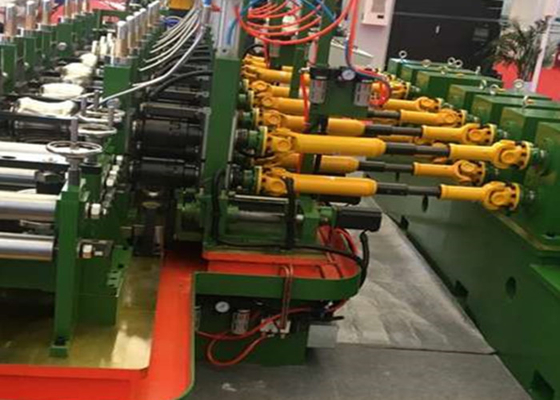

High Frequency Welded Pipe Mill Carbon Steel Round Pipe

Large Image : High Frequency Welded Pipe Mill Carbon Steel Round Pipe

Product Details:

Place of Origin:	CHINA
Brand Name:	HEBEI TENGTIAN
Certification:	CE,ISO9000
Model Number:	5"inch

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$100000 to $1 million
Packaging Details:	standard export package
Delivery Time:	60-90 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5 sets/month

Contact Now

Detailed Product Description

Product Name:	High Frequency Welded Pipe Mill Carbon Steel Round Pipe	Pipe Material:	Carbon Seteel
Product Size:	3"- 5"	Pipe Thickness:	1.0-4.0mm
Feature:	Save Change Roller Time	Color:	Customized
Keywords:	High Frequency Welded Pipe Mill
Highlight:	carbon high frequency welded pipe mill , 5inch high frequency welded pipe mill , quick change pipe mill machine

CARBON STEEL ROUND PIPE HIGH FREQUENCY WELDED PIPE MILL

1.Tube Mill Description

Quick change tube mill is used to product round pipe,square pipe,rectangular pipe and LTZ other profile pipe,this type machine with quick change roller design,the forming and sizing part with two machine bed,one bed online,another bed prepared,when product different size pipe can change roller quickly.in order to save time.

2. Main parameters

steel material: Q235,Q345 Low carbon steel
Mechanical properties:σb≤610Mpa,σs≤345MPa
steel width:240-400mm
round pipe size:76-127mm
pipe thickness:1.0-5.0mm
square tube size:60x60-100x100mm
forming speed:20-80m/min
pipe length:6-12meter
total power:approx 600kw
factory require: long 100meter,width 6meter(can design layout according to customer factory)

3.Production Process

coil loading→Uncoiler→shear&welder→horizontal accumulator→Forming,HF welder,scraper,cooling,sizing,turkey head→cutting saw→packing→storage

4. Roller

Material: Cr12 or SKD11
treatment hardness:HRC 58-62

5.Technical Document Provided

Instruction Manual
packing list
layout drawing
foundation drawing
electrical diagram
vulnerable parts drawing

6. After sales service and warranty

After the machine arrives at the buyer,technical service person will go to buyer factory provide guidance on operation,debugging and maintenance the machine,responsible for technical training for equipment operation and maintenance personnel of the buyer.

whole line warranty one year
