High Frequency Welded Pipe Mill 100x100mm Square Pipe steel pipe

Large Image : High Frequency Welded Pipe Mill 100x100mm Square Pipe steel pipe

Product Details:

Place of Origin:	CHINA
Brand Name:	HEBEI TENGTIAN
Certification:	CE,ISO9000
Model Number:	100x100

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$100000 to $1 million
Packaging Details:	standard export package
Delivery Time:	90 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5 sets/month

Contact Now

Detailed Product Description

Product Name:	High Frequency Welded Pipe Mill 100x100mm Square Pipe Steel Pipe	Pipe Material:	Carbon Seteel
Product Size:	40x40- 100x100	Pipe Thickness:	2.0-5.0mm
Feature:	Quick Change	Color:	Customized
Keywords:	High Frequency Welded Pipe Mill
Highlight:	100 x 100mm tube mill machine , quick change tube mill machine , quick change pipe mill equipment

100x100mm Square Pipe Steel Pipe High Frequency Welded Pipe Mill

1.Tube Mill Description

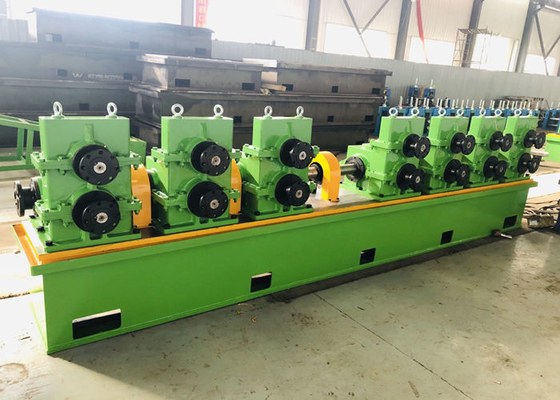

Quick change tube mill is used to product round pipe,square pipe,rectangular pipe and LTZ other profile pipe,this type machine with quick change roller design,the forming and sizing part with two machine bed,one bed online,another bed prepared,when product different size pipe can change roller quickly.in order to save time.

2. Main parameters

steel material	Q235,Q345 Low carbon steel
Mechanical properties	σb≤610Mpa,σs≤345MPa
steel width	160-400mm
round pipe size	50-127mm
pipe thickness	2.0-5.0mm
square tube size	40x40-100x100mm
forming speed	20-80m/min
pipe length	6-12meter
total power	approx 700kw
factory require	long 100meter,width 6meter(can design layout according to customer factory)

3.Production Process

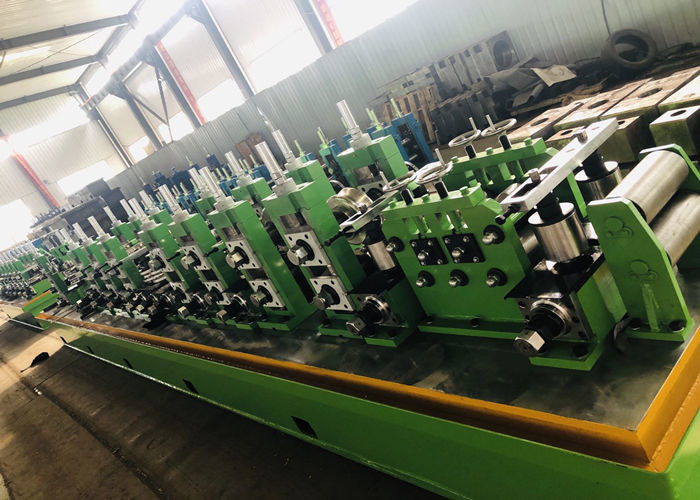

coil loading→Uncoiler→shear&welder→horizontal accumulator→Forming,HF welder,scraper,cooling,sizing,turkey head→cutting saw→packing→storage

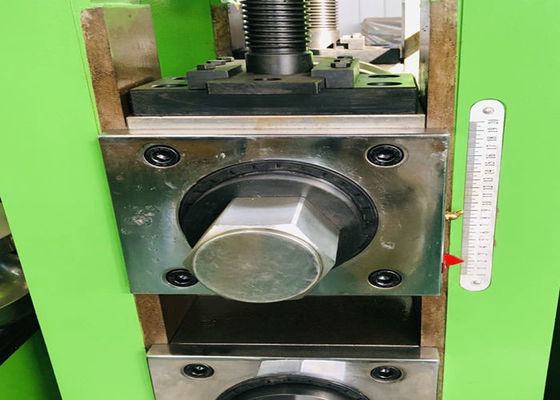

4. Roller

material	Cr12 or SKD11
treatment hardness	HRC 58-62

5.Technical Document Provided

Instruction Manual
packing list
layout drawing
foundation drawing
electrical diagram
vulnerable parts drawing

6. After sales service and warranty

After the machine arrives at the buyer,technical service person will go to buyer factory provide guidance on operation,debugging and maintenance the machine,responsible for technical training for equipment operation and maintenance personnel of the buyer.

whole line warranty one year
