| Product Name: | Stepless Speed Regulation Automatic Tube Mill Adjustment Roller Extrusion | Tube Shape: | Square And Rectangular |
|---|---|---|---|
| Equipment Specification: | Customer Specified | Forming Method: | Roller Squeeze |
| Welding Method: | High Frequency Induction Welding | Speed: | 80 M/min |
| Warranty: | One Year | Material: | Low Carbon HRC |
| Forming Type: | Direct Forming | Work Shop: | 120 X 10 M, H＞7m ( Crane To Ground ) |
| Highlight: | stepless speed automatic tube mill,ce automatic tube mill,stepless speed welded tube mill machine |
||

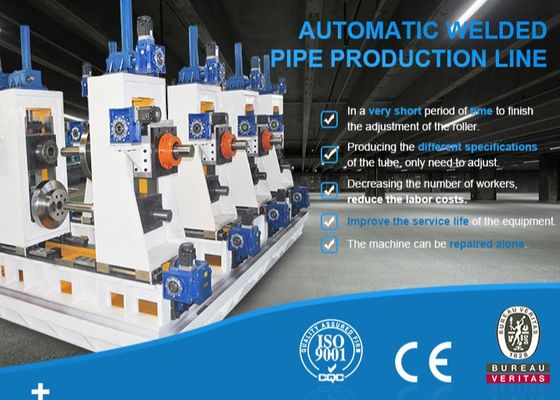

Stepless Speed Regulation Automatic Adjustment Roller Extrusion Full Automatic Tube Mill
I. Introduction
Based on the introduction of advanced Japanese technology, the company innovates, and the products are manufactured in strict accordance with Japanese standards, and the products have reached the world's leading level. The company has a team with excellent technology, strong business ability and vigorous vitality. Through the unremitting efforts of all employees, the company has occupied most of the domestic market in recent years, and has successively produced products in South Korea, Vietnam, Indonesia, South Africa, Kazakhstan, etc. Ten countries and regions, praised by domestic and foreign merchants.
II. Design guideline
Due to the use of a combined roll structure, the original line contact between the roll and the strip is changed to point contact, which reduces the wear of the roll and improves the service life of the roll.
The power system of the whole set of units adopts the transmission method of one motor per flight, which makes the transmission more labor-saving and more reasonable; in addition, because each single-moving machine does not need to ensure the consistency of subsequent mold repairs, each machine can be repaired alone .
It can produce open cold-formed steel of certain specifications, such as U, C-shaped steel, etc. The width and height of the product can be adjusted infinitely.
III. Equipment composition
| 1. Loading car | 2. Uncoiler |
| 3. Straightener unit | 4. Flattener unit |
| 5. Automatic Shear & Welder | 6. Accumulator |
| 7. Forming & Sizing | 8. Cold saw / Milling saw / Flying saw |
| 9. Transit roller + Unloading Rack | 10. Automatic palletizing machine |
| 11. Roller | 12. High frequency welder |
IV. Product parameter specifications
| Model | Side length Range | Thickness | Production speed (m/min) | Motor Power(KW) | Mechanical area |
| (m³) | |||||
| HG20 | 6 x 6 ~ 16 x 16 mm | 0.3 -1 mm | 30 - 120 | 55 | 7 × 50 |
| HG32 | 9 x 9 ~ 25 x 25 mm | 0.3 - 2.0 mm | 30 - 120 | 75 | 7 × 50 |
| HG50 | 12 x 12 ~ 40 x 40 mm | 0.8 - 2.5 mm | 30 - 110 | 110 | 7 × 60 |
| HG60 | 15 x 15 ~ 47 x 47 mm | 0.8 - 3 mm | 30 - 100 | 132 | 7 × 65 |
| HG76 | 9 x 9 ~ 60 x 60 mm | 1 - 3 mm | 30 - 100 | 320 | 8 × 80 |
| HG89 | 25 x 25 ~ 70 x 70 mm | 1 - 4 mm | 30 - 80 | 350 | 8 × 80 |
| HG114 | 35 x 35 ~ 89 x 89 mm | 1.5 - 5.0 mm | 30 - 60 | 400 | 10 × 100 |
| HG165 | 47 x 47 ~ 129 x 129 mm | 3 - 7 mm | 30 - 50 | 600 | 10 × 110 |
| HG219 | 89 x 89 ~ 172 x 172 mm | 4 - 8 mm | 20 - 40 | 800 | 12 × 150 |
| HG273 | 89 x 89 ~ 214 x 214 mm | 4 - 10 mm | 15 - 30 | 1000 | 18 × 160 |
| HG325 | 129 x 129 ~ 255 x 255 mm | 4 - 12 mm | 10 - 30 | 1200 | 18 ×180 |
| HG426 | 129 x 129 ~ 335 x 335 mm | 4 - 16 mm | 8 - 25 | 1400 | 18 × 180 |
| HG508 | 172 x 172 ~ 400 x 400 mm | 4 - 20 mm | 8 - 20 | 2000 | 21 × 180 |
| Recent business technology expansion, adding available projects | |||||
| HG600 | Production line for Square welded pipes, max side length of pipe is 600 x 600mm. | ||||
| HG765 | Production line for Round welded pipes, max diameter of pipe is 765mm. | ||||
