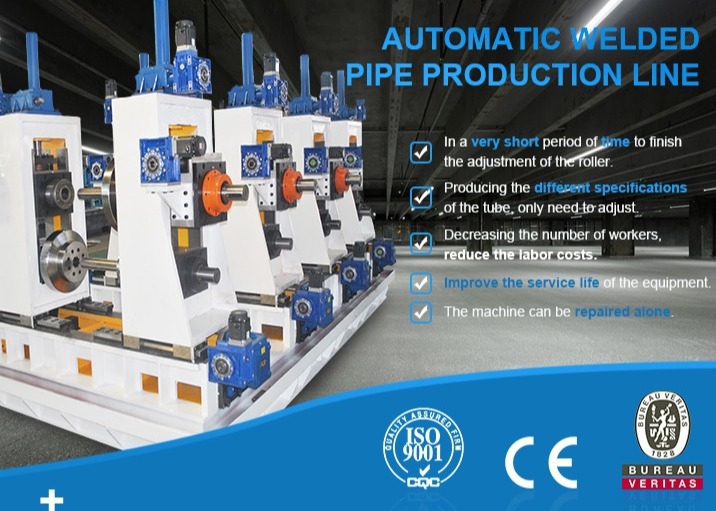

Stepless Speed Regulation Automatic Tube Mill for Square Rectangular Tubes

Name: Stepless Speed Regulation Automatic Tube Mill for Square Rectangular Tubes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 600
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	HG 600

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

HG 600

Product Name:

Stepless Speed Regulation Automatic Tube Mill Adjustment Roller Extrusion

Tube Shape:

Square And Rectangular

Equipment Specification:

Customer Specified

Forming Method:

Roller Squeeze

Welding Method:

High Frequency Induction Welding

Speed:

80 M/min

Warranty:

One Year

Material:

Low Carbon HRC

Forming Type:

Direct Forming

Work Shop:

120 X 10 M, H＞7m ( Crane To Ground )

Highlight:

High Light

Highlight:

stepless speed automatic tube mill

ce automatic tube mill

stepless speed welded tube mill machine

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Stepless Speed Regulation Automatic Tube Mill Adjustment Roller Extrusion

Product Specifications

Attribute	Value
Product name	Stepless Speed Regulation Automatic Tube Mill Adjustment Roller Extrusion
Tube shape	Square and rectangular
Equipment Specification	Customer specified
Forming method	Roller Squeeze
Welding method	High frequency induction welding
Speed	80 m/min
Warranty	One year
Material	Low carbon HRC
Forming type	Direct forming
Work shop	120 x 10 m, H＞7m (crane to ground)

Product Overview

Our Stepless Speed Regulation Automatic Adjustment Roller Extrusion Full Automatic Tube Mill combines advanced Japanese technology with our own innovations. Manufactured to strict Japanese standards, our products have achieved world-leading quality levels.

Key Features

Combined roll structure changes line contact to point contact, reducing wear and extending roll life
One motor per flight transmission system for more efficient power distribution
Individual machine maintenance capability without affecting production continuity
Capable of producing open cold-formed steel (U, C-shaped) with infinite width/height adjustment

Equipment Components

1. Loading car

2. Uncoiler

3. Straightener unit

4. Flattener unit

5. Automatic Shear & Welder

6. Accumulator

7. Forming & Sizing

8. Cold saw / Milling saw / Flying saw

9. Transit roller + Unloading Rack

10. Automatic palletizing machine

11. Roller

12. High frequency welder

Technical Specifications

Model	Side Length Range	Thickness	Production Speed (m/min)	Motor Power (KW)	Mechanical Area (m³)
HG20	6 x 6 ~ 16 x 16 mm	0.3 -1 mm	30 - 120	55	7 × 50
HG32	9 x 9 ~ 25 x 25 mm	0.3 - 2.0 mm	30 - 120	75	7 × 50
HG50	12 x 12 ~ 40 x 40 mm	0.8 - 2.5 mm	30 - 110	110	7 × 60
HG60	15 x 15 ~ 47 x 47 mm	0.8 - 3 mm	30 - 100	132	7 × 65
HG76	9 x 9 ~ 60 x 60 mm	1 - 3 mm	30 - 100	320	8 × 80
HG89	25 x 25 ~ 70 x 70 mm	1 - 4 mm	30 - 80	350	8 × 80
HG114	35 x 35 ~ 89 x 89 mm	1.5 - 5.0 mm	30 - 60	400	10 × 100
HG165	47 x 47 ~ 129 x 129 mm	3 - 7 mm	30 - 50	600	10 × 110
HG219	89 x 89 ~ 172 x 172 mm	4 - 8 mm	20 - 40	800	12 × 150
HG273	89 x 89 ~ 214 x 214 mm	4 - 10 mm	15 - 30	1000	18 × 160
HG325	129 x 129 ~ 255 x 255 mm	4 - 12 mm	10 - 30	1200	18 ×180
HG426	129 x 129 ~ 335 x 335 mm	4 - 16 mm	8 - 25	1400	18 × 180
HG508	172 x 172 ~ 400 x 400 mm	4 - 20 mm	8 - 20	2000	21 × 180

Recent Technology Expansion

HG600: Production line for square welded pipes, max side length of 600 x 600mm
HG765: Production line for round welded pipes, max diameter of 765mm
