80m/min Automatic Tube Mill for Electric Welded Steel Pipe

Name: 80m/min Automatic Tube Mill for Electric Welded Steel Pipe
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	HG 76

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

HG 76

Product Name:

80m/Min Tube Mill Machine Hole Design Electric Welded Steel Pipe Automatic Tube Mill

Applicable Materials:

Steel

Equipment Specification:

Customer Specified

Forming Method:

Roller Squeeze

Welding Method:

High Frequency Induction Welding

Speed:

80m/min

Warranty:

One Year

Material:

Low Carbon HRC

Forming Type:

Direct Forming

Work Shop:

120 X 10 M, H＞7m ( Crane To Ground )

Highlight:

High Light

Highlight:

80m/min tube mill machine

auto produce tube mill machine

induction high frequency welded pipe mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

80m/Min Tube Mill Machine Hole Design Electric Welded Steel Pipe Automatic Tube Mill

Product Attributes

Product name	80m/Min Tube Mill Machine Hole Design Electric Welded Steel Pipe Automatic Tube Mill
Applicable materials	steel
Equipment Specification	customer specified
Forming method	Roller Squeeze
Welding method	High frequency induction welding
Speed	80m/min
Warranty	One year
Material	Low carbon HRC
Forming type	direct forming
Work shop	120 x 10 m, H＞7m (crane to ground)

Product Description

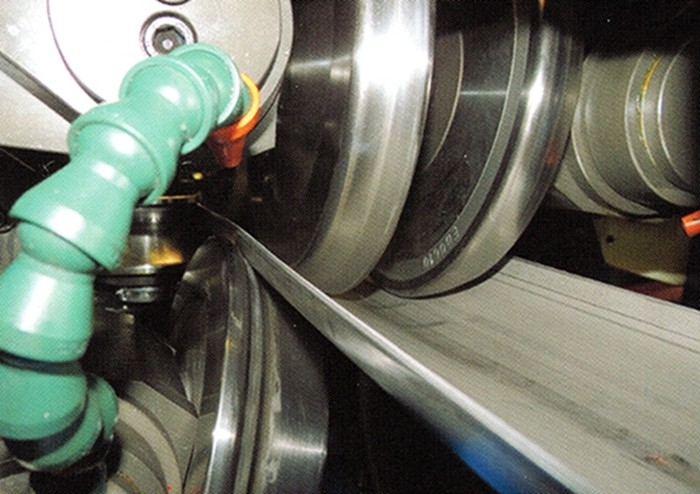

The high-frequency straight seam welded pipe production line feeds steel strip into the unit, rolls it into tube billet through rollers, then uses high frequency effects to heat the strip edge to welding temperature. Welding is completed under extrusion roller force, followed by water cooling, sizing and straightening to produce precision steel pipes.

Key Features

High processing quality and assembly accuracy
Produces electric welded steel pipes with high precision
Convenient operation and simple maintenance
Efficient production with speeds up to 80m/min

Applications

Construction
Decoration
Oil and gas industry
Photovoltaic power generation

Equipment Components

1. Loading car	2. Uncoiler
3. Straightener unit	4. Flattener unit
5. Automatic Shear & Welder	6. Accumulator
7. Forming & Sizing	8. Cold saw / Milling saw / Flying saw
9. Transit roller + Unloading Rack	10. Automatic palletizing machine
11. Roller	12. High frequency welder

Technical Specifications

Model	Side length Range	Thickness	Production speed (m/min)	Motor Power(KW)	Mechanical area (m³)
HG20	6 x 6 ~ 16 x 16 mm	0.3 -1 mm	30 - 120	55	7 × 50
HG32	9 x 9 ~ 25 x 25 mm	0.3 - 2.0 mm	30 - 120	75	7 × 50
HG50	12 x 12 ~ 40 x 40 mm	0.8 - 2.5 mm	30 - 110	110	7 × 60
HG60	15 x 15 ~ 47 x 47 mm	0.8 - 3 mm	30 - 100	132	7 × 65
HG76	9 x 9 ~ 60 x 60 mm	1 - 3 mm	30 - 100	320	8 × 80
HG89	25 x 25 ~ 70 x 70 mm	1 - 4 mm	30 - 80	350	8 × 80
HG114	35 x 35 ~ 89 x 89 mm	1.5 - 5.0 mm	30 - 60	400	10 × 100
HG165	47 x 47 ~ 129 x 129 mm	3 - 7 mm	30 - 50	600	10 × 110
HG219	89 x 89 ~ 172 x 172 mm	4 - 8 mm	20 - 40	800	12 × 150
HG273	89 x 89 ~ 214 x 214 mm	4 - 10 mm	15 - 30	1000	18 × 160
HG325	129 x 129 ~ 255 x 255 mm	4 - 12 mm	10 - 30	1200	18 ×180
HG426	129 x 129 ~ 335 x 335 mm	4 - 16 mm	8 - 25	1400	18 × 180
HG508	172 x 172 ~ 400 x 400 mm	4 - 20 mm	8 - 20	2000	21 × 180

Recent technology expansion: Available projects include HG600 for square welded pipes (max 600 x 600mm) and HG765 for round welded pipes (max diameter 765mm).
